M20-611 Series
Manufacturer: Harwin Inc.
Beta
⌘K
BOARD-TO-BOARD CONNECTOR, PC104, M20 SERIES, THROUGH HOLE, RECEPTACLE, 64, 2.54 MM ROHS COMPLIANT: YES
| Part | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Connector Style | Termination | Connector Type | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Number of Positions Loaded | Mounting Type | Number of Rows [custom] | Pitch | Pitch | Contact Finish | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

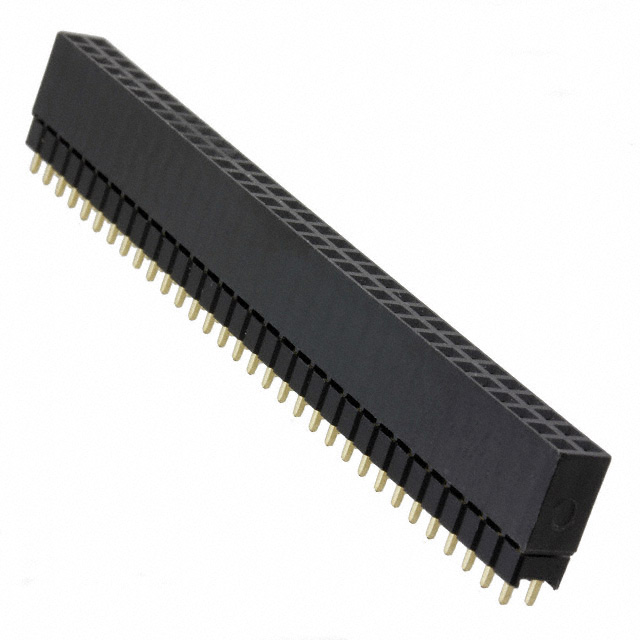

 Harwin Inc. | 3 A | -55 C | 105 ░C | UL94 V-0 | PC/104 | Solder | Non-Stackthrough Unkeyed (PC/104) | 3 µin | 0.076 Ám | 64 | All | Through Hole | 2 | 0.1 " | 2.54 mm | Gold | Black |

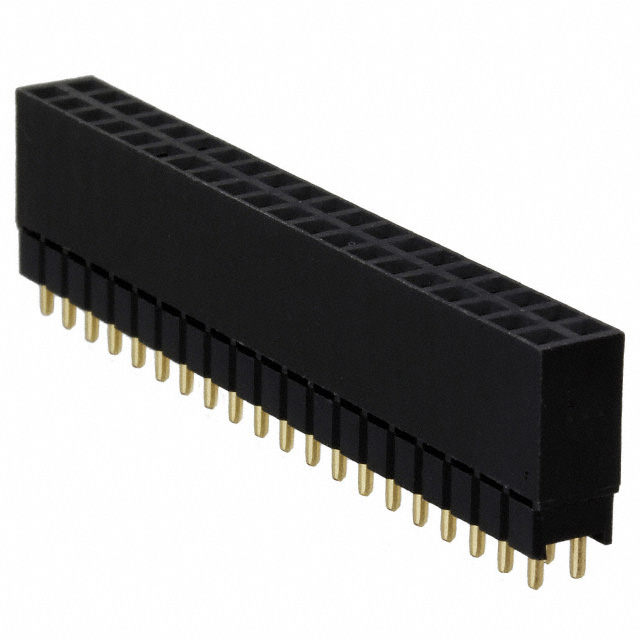

 Harwin Inc. | 3 A | -55 C | 105 ░C | UL94 V-0 | PC/104 | Solder | Non-Stackthrough Unkeyed (PC/104) | 3 µin | 0.076 Ám | 40 | All | Through Hole | 2 | 0.1 " | 2.54 mm | Gold | Black |
