RL01-R Series
Manufacturer: JAE Electronics
Beta
⌘K
CONN RCPT 14P 0.031 GOLD SMD R/A
| Part | Contact Material | Insulation Material | Contact Finish - Post | Number of Rows | Fastening Type | Insulation Height | Insulation Height | Mounting Type | Pitch - Mating | Pitch - Mating | Number of Positions | Contact Finish Thickness - Mating | Number of Positions Loaded | Style | Termination | Features | Connector Type | Material Flammability Rating | Contact Finish - Mating | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

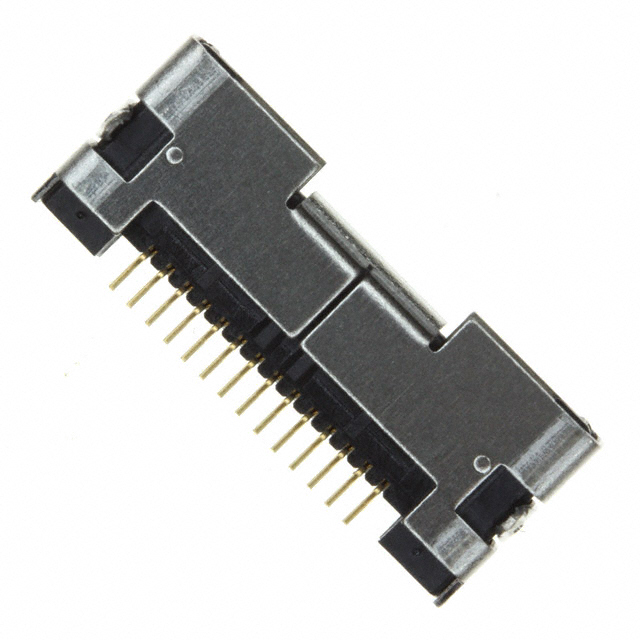

 JAE Electronics | Copper Alloy | Polyphenylene Sulfide (PPS) | Tin | 1 | Friction Lock | 0.114 in | 2.9 mm | Right Angle Surface Mount | 0.8 mm | 0.031 in | 14 | Flash | All | Board to Cable/Wire | Solder | Board Guide Shielded | Receptacle | UL94 V-0 | Gold | Center Strip Contact |

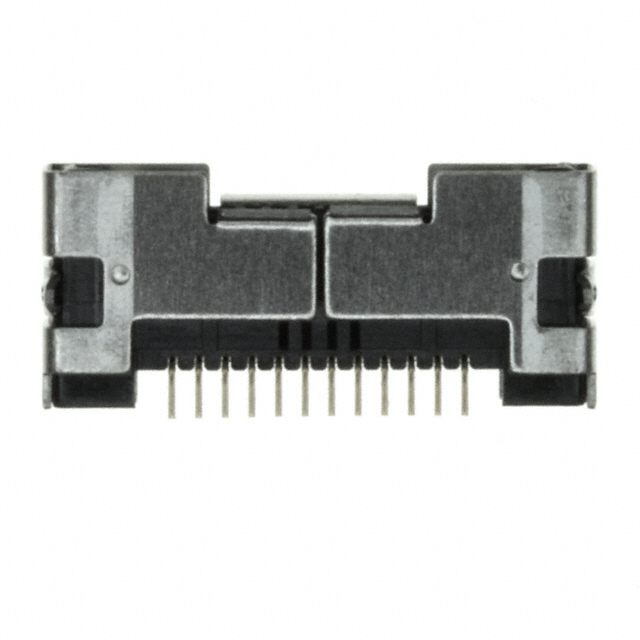

 JAE Electronics | Copper Alloy | Polyphenylene Sulfide (PPS) | Tin | 1 | Friction Lock | 0.114 in | 2.9 mm | Right Angle Surface Mount | 0.8 mm | 0.031 in | 12 | Flash | All | Board to Cable/Wire | Solder | Board Guide Shielded | Receptacle | UL94 V-0 | Gold | Center Strip Contact |
