A61CS Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
RELAY AUTOMOTIVE SPDT 30A 12V
| Part | Contact Material | Coil Resistance | Coil Power | Features | Operating Temperature [Max] | Operating Temperature [Min] | Coil Current | Contact Form | Coil Type | Coil Voltage | Must Operate Voltage | Release Time | Contact Rating (Current) | Must Release Voltage | Mounting Type | Termination Style | Operate Time | Switching Voltage [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | Silver Tin Oxide (AgSnO) | 160 Ohms | 900 mW | Micro 280 ISO Resistor Sealed - Fully | 85 °C | -40 C | 0.075 A | SPDT (1 Form C) | Non Latching | 12 VDC | 8.4 VDC | 2 ms | 30 A | 1.2 VDC | Through Hole | PC Pin | 5 ms | 75 VDC |

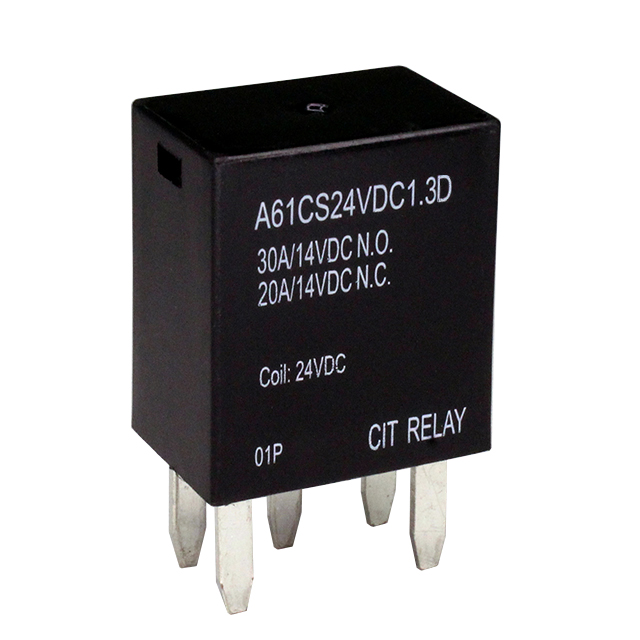

 CIT Relay and Switch | Silver Tin Oxide (AgSnO) | 436 Ohms | 1.3 W | Diode Micro 280 ISO Sealed - Fully | 85 °C | -40 C | 55 mA | SPDT (1 Form C) | Non Latching | 24 VDC | 16.8 VDC | 2 ms | 30 A | 2.4 VDC | Through Hole | PC Pin | 5 ms | 75 VDC |

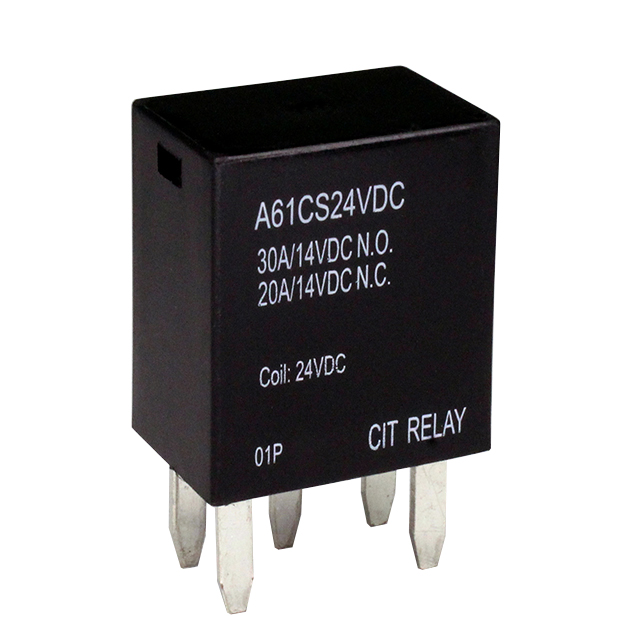

 CIT Relay and Switch | Silver Tin Oxide (AgSnO) | 640 Ohms | 900 mW | Micro 280 ISO Resistor Sealed - Fully | 85 °C | -40 C | 0.0375 A | SPDT (1 Form C) | Non Latching | 24 VDC | 16.8 VDC | 2 ms | 30 A | 2.4 VDC | Through Hole | PC Pin | 5 ms | 75 VDC |

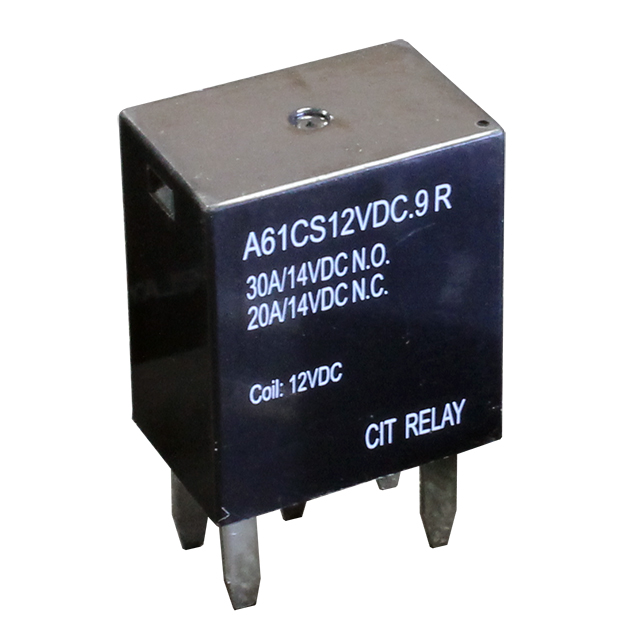

 CIT Relay and Switch | Silver Tin Oxide (AgSnO) | 160 Ohms | 900 mW | Diode Micro 280 ISO Sealed - Fully | 85 °C | -40 C | 0.075 A | SPDT (1 Form C) | Non Latching | 12 VDC | 8.4 VDC | 2 ms | 30 A | 1.2 VDC | Through Hole | PC Pin | 5 ms | 75 VDC |
