105133 Series
Manufacturer: Molex
Beta
⌘K
MICRO-USB B RECEPTACLE, VERTICAL, SURFACE MOUNT, 6.70MM HEIGHT, 2.30MM SOLDER TABS, WITH COVER, LEAD-FREE, GOLD (AU) PLATING
| Part | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | Mounting Type | Material Flammability Rating | Number of Ports | Shielding | Number of Contacts | Specifications | Features | Connector Type | Mating Cycles | Voltage - Rated | Mounting Feature | Insulation Color | Gender | Shell/Shielding Material | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

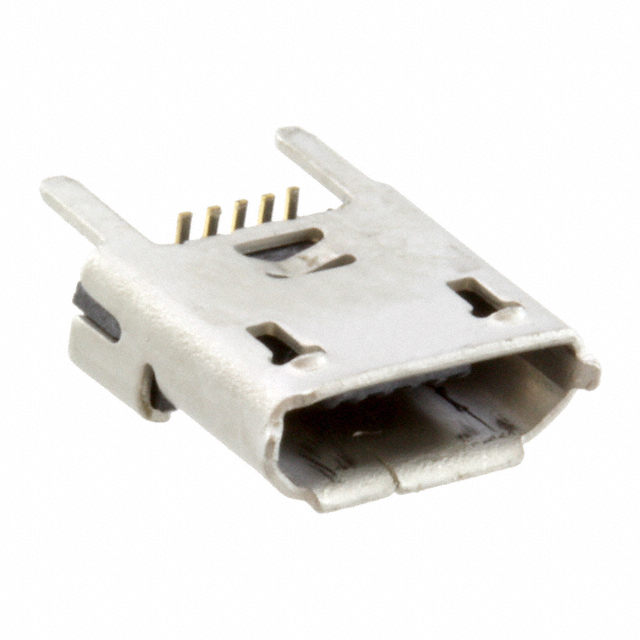

 Molex | Solder | -35 °C | 85 °C | Gold | Surface Mount | UL94 V-0 | 1 | Shielded | 5 | USB 2.0 | Pick and Place | USB - micro B | 10000 | 30 VAC | Vertical | Black | Receptacle | Stainless Steel | 1 A 1.8 A |

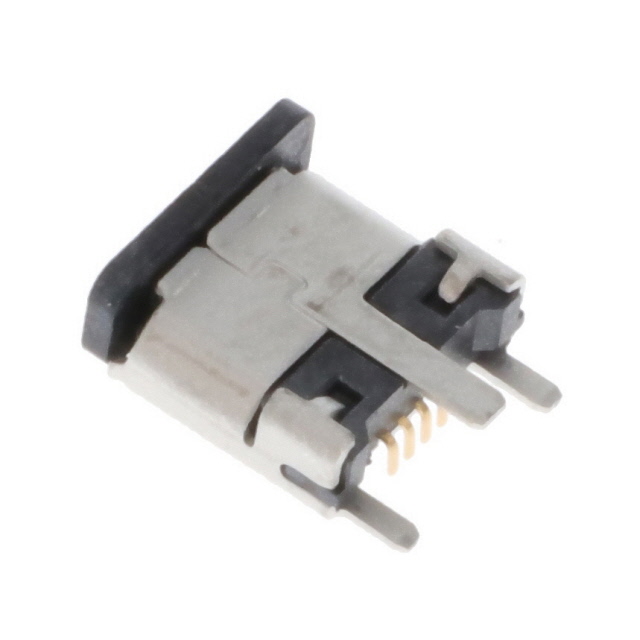

 Molex | Solder | -30 ░C | 85 °C | Gold | Surface Mount | UL94 V-0 | 1 | Shielded | 5 | USB 2.0 | Pick and Place | USB - micro B | 10000 | 30 VAC | Vertical | Black | Receptacle | Stainless Steel | 1 A 1.8 A |

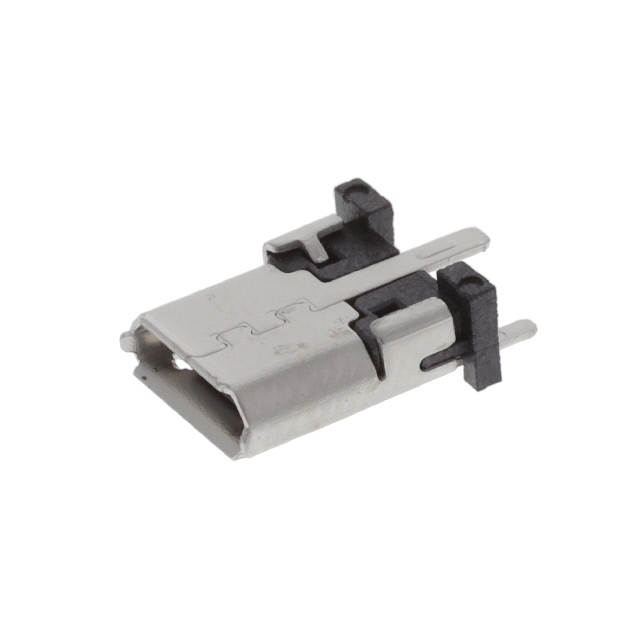

 Molex | Solder | -35 °C | 85 °C | Gold | Surface Mount | UL94 V-0 | 1 | Shielded | 5 | USB 2.0 | Cover Pick and Place | USB - micro B | 10000 | 30 VAC | Vertical | Black | Receptacle | Stainless Steel | 1 A 1.8 A |

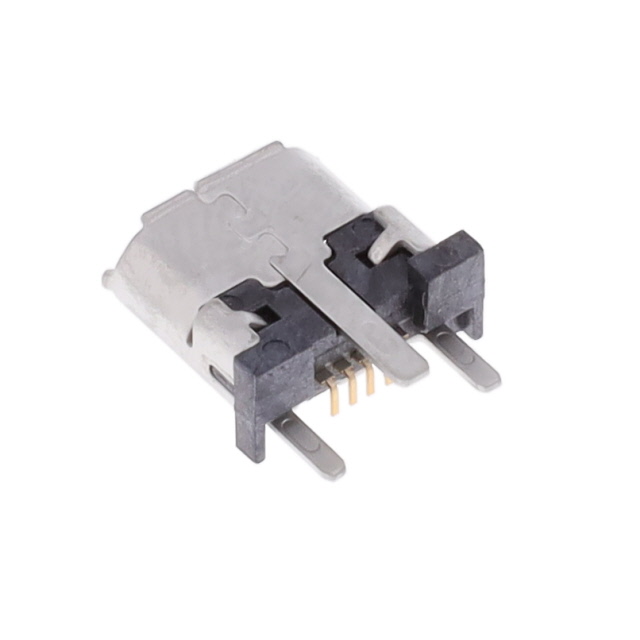

 Molex | Solder | -30 ░C | 85 °C | Gold | Surface Mount | UL94 V-0 | 1 | Shielded | 5 | USB 2.0 | Pick and Place | USB - micro B | 10000 | 30 VAC | Vertical | Black | Receptacle | Stainless Steel | 1 A 1.8 A |
