2515-2 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONN PC PIN CIRC 0.125DIA SILVER
| Part | Terminal Style | Length - Below Flange [x] | Length - Below Flange [x] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Length - Above Flange [x] | Length - Above Flange [x] | Contact Finish | Terminal Type | Mounting Type | Termination | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Length - Overall [x] | Length - Overall [x] | Board Thickness | Board Thickness | Flange Diameter | Flange Diameter [diameter] | Insulation | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

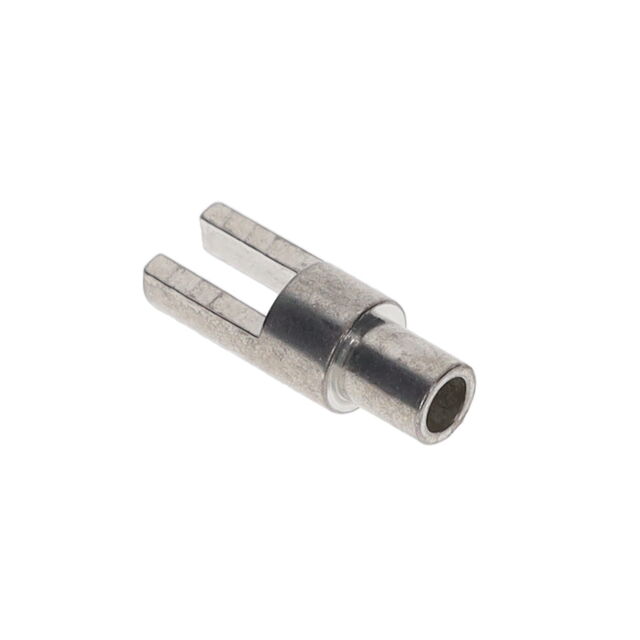

 Mill-Max Manufacturing Corp. | Single End Slotted | 2.67 mm | 0.105 in | 2.39 mm | 0.094 " | 0.239 in | 6.07 mm | Silver | PC Pin | Through Hole | Swage | 300 µin | 7.62 µm | Brass Alloy | 0.344 in | 8.74 mm | 0.062 in | 1.57 mm | 3.18 mm | 0.125 in | Non-Insulated | 3.18 mm | 0.125 in |

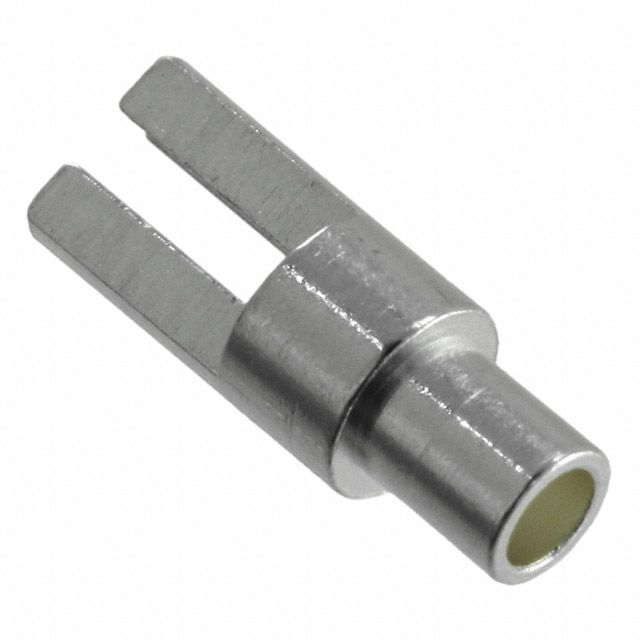

 Mill-Max Manufacturing Corp. | Single End Slotted | 2.67 mm | 0.105 in | 2.39 mm | 0.094 " | 0.239 in | 6.07 mm | Tin-Lead | PC Pin | Through Hole | Swage | 200 Áin | 5.08 Ám | Brass Alloy | 0.344 in | 8.74 mm | 0.062 in | 1.57 mm | 3.18 mm | 0.125 in | Non-Insulated | 3.18 mm | 0.125 in |
