1717 Series

Catalog

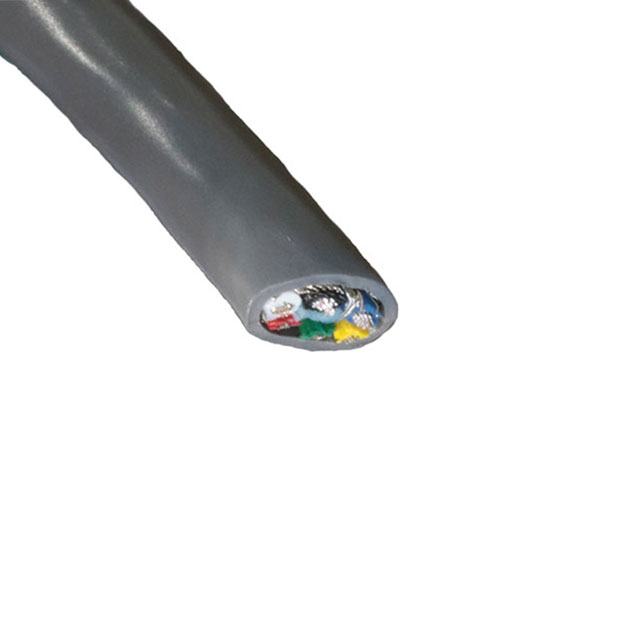

MULTICONDUCTOR CABLE, CONTROL, SHIELDED, 6 CONDUCTOR, 20 AWG, 0.52 MM², 100 FT, 30.5 M

Part	Shield Material	Shield Coverage	Jacket Color	Jacket (Insulation) Material	Number of Conductors	Length [x]	Length [x]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Type	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Usage	Cable Type	Conductor Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Length	Length
ALPHA WIRE 1717 SL005	Copper Tinned	85 %	Slate	Poly-Vinyl Chloride (PVC)	6	100 ft	30.5 m	0.306 in	7.77 mm	Braid	20 AWG	26	34 AWG	600 V	0.035 in	0.889 mm	Communication Control	Multi-Conductor	Polyethylene (PE)	-20 ░C	60 °C	Copper Tinned
ALPHA WIRE 1717 SL002	Copper Tinned	85 %	Slate	Poly-Vinyl Chloride (PVC)	6			0.306 in	7.77 mm	Braid	20 AWG	26	34 AWG	600 V	0.035 in	0.889 mm	Communication Control	Multi-Conductor	Polyethylene (PE)	-20 ░C	60 °C	Copper Tinned	152.4 m	500 ft
