CD Series

Catalog

FIXED IND 26.5NH 500MA 250 MOHM

Part	DC Resistance (DCR) [Max]	Inductance Frequency - Test	Tolerance	Frequency - Self Resonant	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Q @ Freq [custom]	Q @ Freq [custom]	Supplier Device Package	Mounting Type	Inductance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Type	Operating Temperature [Max]	Operating Temperature [Min]	Material - Core	Package / Case	Current Rating (Amps)	Shielding	Q @ Freq [custom]	DC Resistance (DCR)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Q @ Freq

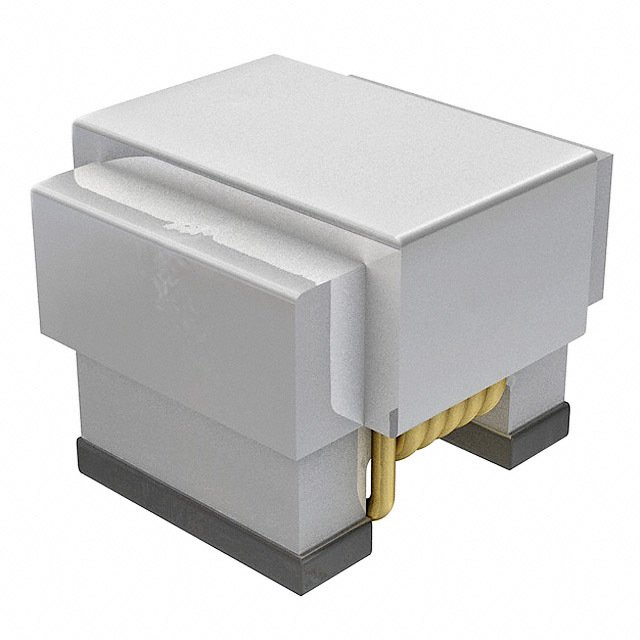

Pulse Electronics PE-0805CD270JTT	250 mOhm	250 MHz	5 %	2.5 GHz	1.58 mm	0.062 in	55	500 MHz	0805 (2012 Metric)	Surface Mount	26.5 nH	0.09 in	0.066 in	2.29 mm	1.68 mm	Drum Core Wirewound	125 °C	-40 C	Ceramic	0805	0.5 A	Unshielded
Pulse Electronics PE-0402CD3N3JTT		250 MHz	5 %	6 GHz			20		0402 (1005 Metric)	Surface Mount	3.3 nH	0.047 in	0.026 "	1.19 mm	0.66 mm	Drum Core Wirewound	125 °C	-40 C	Ceramic	0402 (1005 Metric)	0.84 A	Unshielded	250 MHz	66 mOhm	0.61 mm	0.024 in
Pulse Electronics PE-0603CD331JTT	2.3 Ohm	100 MHz	5 %	500 MHz			22	100 MHz	0603 (1608 Metric)	Surface Mount	330 nH	0.071 "	0.049 "	1.8 mm	1.24 mm	Drum Core Wirewound	125 °C	-40 C	Ceramic	0603	150 mA	Unshielded			1.02 mm	0.04 in	1608 Metric
Pulse Electronics PE-0805CD910GTT	440 mOhm	150 MHz	2 %	1.2 GHz	1.58 mm	0.062 in			0805 (2012 Metric)	Surface Mount	91 nH	0.09 in	0.066 in	2.29 mm	1.68 mm	Drum Core Wirewound	125 °C	-40 C	Ceramic	0805	400 mA	Unshielded						65 500 MHz
Pulse Electronics PE-0603CD300GTT	440 mOhm	250 MHz	2 %	2.25 GHz			37			Surface Mount	30 nH	0.071 "	0.049 "	1.8 mm	1.24 mm	Drum Core Wirewound	125 °C	-40 C	Ceramic	0603	600 mA	Unshielded	250 MHz		1.02 mm	0.04 in	1608 Metric
Pulse Electronics PE-0805CD561JTT	1.9 Ohm	250 MHz	5 %	340 MHz	1.58 mm	0.062 in			0805 (2012 Metric)	Surface Mount	545 nH	0.09 in	0.066 in	2.29 mm	1.68 mm	Drum Core Wirewound	125 °C	-40 C	Ceramic	0805	0.23 A	Unshielded						23 50 MHz
Pulse Electronics PE-0402CD270JTT		250 MHz	5 %	248 MHz			25	250 MHz	0402 (1005 Metric)	Surface Mount	27 nH	0.047 in	0.026 "	1.19 mm	0.66 mm	Drum Core Wirewound	125 °C	-40 C	Ceramic	0402 (1005 Metric)	400 mA	Unshielded		298 mOhm	0.61 mm	0.024 in
Pulse Electronics PE-0805CD270GTT	250 mOhm	250 MHz	2 %	2.5 GHz	1.58 mm	0.062 in	55	500 MHz	0805 (2012 Metric)	Surface Mount	26.5 nH	0.09 in	0.066 in	2.29 mm	1.68 mm	Drum Core Wirewound	125 °C	-40 C	Ceramic	0805	0.5 A	Unshielded
Pulse Electronics PE-0603CD300JTT	440 mOhm	250 MHz	5 %	2.25 GHz			37			Surface Mount	30 nH	0.071 "	0.049 "	1.8 mm	1.24 mm	Drum Core Wirewound	125 °C	-40 C	Ceramic	0603	600 mA	Unshielded	250 MHz		1.02 mm	0.04 in	1608 Metric
Pulse Electronics PE-0402CD360JTT		250 MHz	5 %	2.32 GHz			26	250 MHz	0402	Surface Mount	36 nH	0.047 in	0.026 "	1.19 mm	0.66 mm	Drum Core Wirewound	125 °C	-40 C	Ceramic	0402 (1005 Metric)	350 mA	Unshielded		390 mOhm	0.61 mm	0.024 in
