MH1608 Series

Catalog

FERRITE BEADS HIGH CURRENT CHIP 180OHM 25% 100MHZ 2A 0.1OHM DCR 0603 T/R

Part	Impedance @ Frequency	Package / Case	Package / Case	Number of Lines	Current Rating (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Filter Type	DC Resistance (DCR) (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Size / Dimension [y]	Height (Max) [Max] [z]	Height (Max) [Max] [z]	DC Resistance (DCR) (Max)
Bourns Inc. MH1608-181Y	180 Ohms	1608 Metric	0603	1	2 A	-55 C	125 °C	Power Signal Line	100 mOhm
Bourns Inc. MH1608-300Y	30 Ohms	1608 Metric	0603	1	3 A	-55 C	125 °C	Power Signal Line	60 mOhm	0.031 in 0.032 in	0.063 "	1.6 mm	0.8 mm	Surface Mount	0.8 mm	0.039 in	1 mm
Bourns Inc. MH1608-121Y	120 Ohms	1608 Metric	0603	1	2 A	-55 C	125 °C	Power Signal Line	100 mOhm	0.031 in 0.032 in	0.063 "	1.6 mm	0.8 mm	Surface Mount	0.8 mm	0.039 in	1 mm
Bourns Inc. MH1608-601Y	600 Ohms	1608 Metric	0603	1	1 A	-55 C	125 °C	Power Signal Line	200 mOhm	0.031 in 0.032 in	0.063 "	1.6 mm	0.8 mm	Surface Mount	0.8 mm	0.039 in	1 mm

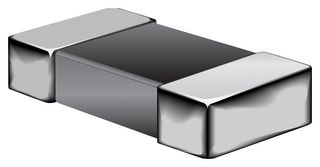

Bourns Inc. MH1608-471Y	470 Ohms	1608 Metric	0603	1	1 A	-55 C	125 °C	Power Signal Line	200 mOhm	0.031 in 0.032 in	0.063 "	1.6 mm	0.8 mm	Surface Mount	0.8 mm	0.039 in	1 mm
Bourns Inc. MH1608-600Y	60 Ohms	1608 Metric	0603	1	3 A	-55 C	125 °C	Power Signal Line		0.031 in 0.032 in	0.063 "	1.6 mm	0.8 mm	Surface Mount	0.8 mm	0.039 in	1 mm	40 mOhm
Bourns Inc. MH1608-800Y	80 Ohms	1608 Metric	0603	1	3 A	-55 C	125 °C	Power Signal Line		0.031 in 0.032 in	0.063 "	1.6 mm	0.8 mm	Surface Mount	0.8 mm	0.039 in	1 mm	40 mOhm
Bourns Inc. MH1608-301Y	300 Ohms	1608 Metric	0603	1	1 A	-55 C	125 °C	Power Signal Line	200 mOhm	0.031 in 0.032 in	0.063 "	1.6 mm	0.8 mm	Surface Mount	0.8 mm	0.039 in	1 mm
