280580 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

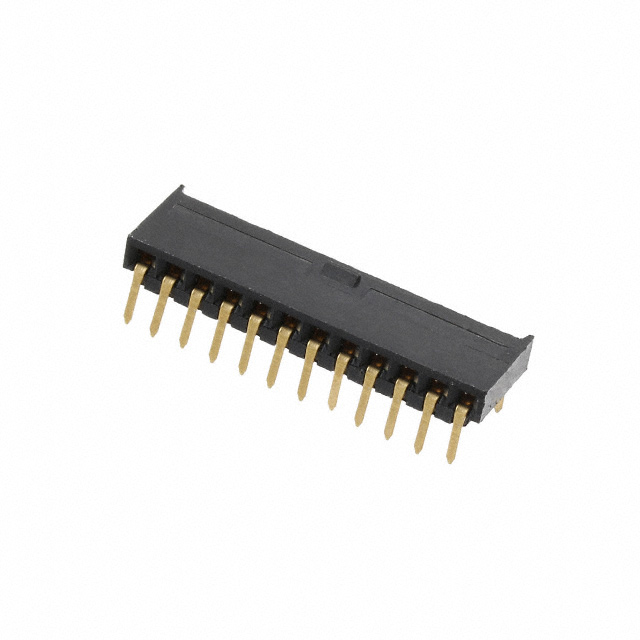

CONN RCPT 12POS 0.1 GOLD PCB R/A
| Part | Number of Rows | Contact Finish - Post | Contact Finish Thickness - Post | Material Flammability Rating | Number of Positions | Connector Type | Contact Type | Contact Finish - Mating | Insulation Color | Insulation Material | Termination | Insulation Height [custom] | Insulation Height [custom] | Number of Positions Loaded | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Mounting Type | Contact Length - Post | Contact Length - Post | Fastening Type | Contact Shape | Contact Material | Pitch - Mating | Pitch - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 1 | Gold | Flash | UL94 V-0 | 12 | Receptacle | Female Socket | Gold | Black | Polyester Glass Filled | Solder | 0.157 in | 4 mm | All | 16 Áin | 0.41 Ám | Through Hole Right Angle | 3.5 mm | 0.138 in | Friction Lock | Square | Phosphor Bronze | 0.1 in | 2.54 mm |
