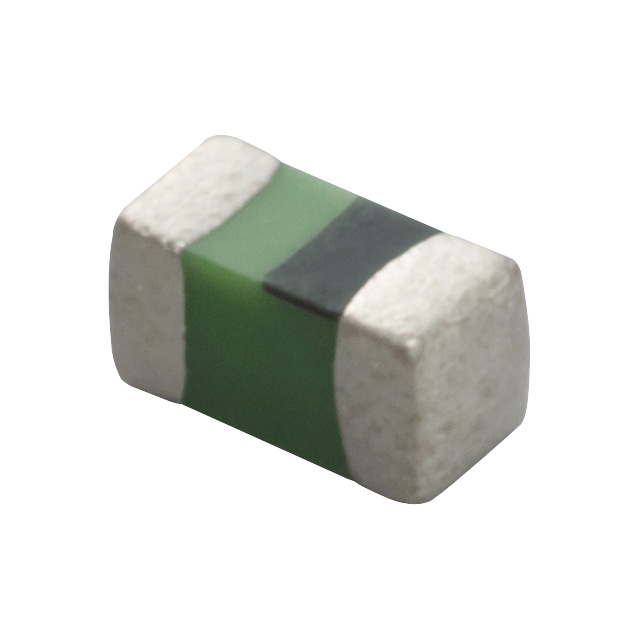

LQG15HN Series

Manufacturer: Murata Power Solutions Inc.

Catalog

FIXED IND 2NH 900MA 0.09OHM SMD

Part	Q @ Freq	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Supplier Device Package	Tolerance	Package / Case	Type	DC Resistance (DCR) [Max]	Material - Core	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Min]	Operating Temperature [Max]	Inductance Frequency - Test	Inductance	Mounting Type	Current Rating (Amps)	Shielding	Frequency - Self Resonant	DC Resistance (DCR)
Murata Power Solutions Inc. LQG15HN2N0S02D	8	1 mm	0.02 in	0.5 mm	0.039 in	0402 (1005 Metric)	0.3 nH	0402 (1005 Metric)	Multilayer	90 mOhm	Air	0.022 in	0.55 mm	-55 °C	125 °C	100 MHz	2 nH	Surface Mount	900 mA	Unshielded	6 GHz
Murata Power Solutions Inc. LQG15HN5N6S02D	8	1 mm	0.02 in	0.5 mm	0.039 in	0402 (1005 Metric)	0.3 nH	0402 (1005 Metric)	Multilayer		Air	0.022 in	0.55 mm	-55 °C	125 °C	100 MHz	5.6 nH	Surface Mount	600 mA	Unshielded	5.3 GHz	180 mOhm
Murata Power Solutions Inc. LQG15HN15NJ02D	8	1 mm	0.02 in	0.5 mm	0.039 in	0402 (1005 Metric)	5 %	0402 (1005 Metric)	Multilayer	450 mOhm	Air	0.022 in	0.55 mm	-55 °C	125 °C	100 MHz	15 nH	Surface Mount	400 mA	Unshielded	2.3 GHz
Murata Power Solutions Inc. LQG15HN1N2S02D	8	1 mm	0.02 in	0.5 mm	0.039 in	0402 (1005 Metric)	0.3 nH	0402 (1005 Metric)	Multilayer	80 mOhm	Air	0.022 in	0.55 mm	-55 °C	125 °C	100 MHz	1.2 nH	Surface Mount	1 A	Unshielded	6 GHz
Murata Power Solutions Inc. LQG15HN2N4S02D	8	1 mm	0.02 in	0.5 mm	0.039 in	0402 (1005 Metric)	0.3 nH	0402 (1005 Metric)	Multilayer		Air	0.022 in	0.55 mm	-55 °C	125 °C	100 MHz	2.4 nH	Surface Mount	800 mA	Unshielded	6 GHz	100 mOhm
Murata Power Solutions Inc. LQG15HN39NH02D		1 mm	0.02 in	0.5 mm	0.039 in	0402 (1005 Metric)	3 %	0402 (1005 Metric)	Multilayer	1.06 Ohm	Air	0.022 in	0.55 mm	-55 °C	125 °C	100 MHz	39 nH	Surface Mount	0.25 A	Unshielded	1.2 GHz
Murata Power Solutions Inc. LQG15HN1N8S02D	8	1 mm	0.02 in	0.5 mm	0.039 in	0402 (1005 Metric)	0.3 nH	0402 (1005 Metric)	Multilayer	80 mOhm	Air	0.022 in	0.55 mm	-55 °C	125 °C	100 MHz	1.8 nH	Surface Mount	900 mA	Unshielded	6 GHz
Murata Power Solutions Inc. LQG15HN1N8B02D	8	1 mm	0.02 in	0.5 mm	0.039 in	0402	0.1 nH	0402 (1005 Metric)	Multilayer	80 mOhm	Air	0.022 in	0.55 mm	-55 °C	125 °C	100 MHz	1.8 nH	Surface Mount	900 mA	Unshielded	6 GHz
Murata Power Solutions Inc. LQG15HN4N7C02D		1 mm	0.02 in	0.5 mm	0.039 in	0402 (1005 Metric)	0.2 nH	0402 (1005 Metric)	Multilayer	160 mOhm	Air	0.022 in	0.55 mm	-55 °C	125 °C	100 MHz	4.7 nH	Surface Mount	700 mA	Unshielded	6 GHz
Murata Power Solutions Inc. LQG15HN82NH02D		1 mm	0.02 in	0.5 mm	0.039 in	0402 (1005 Metric)	3 %	0402 (1005 Metric)	Multilayer	1.6 Ohm	Air	0.022 in	0.55 mm	-55 °C	125 °C	100 MHz	82 nH	Surface Mount	0.2 A	Unshielded	600 MHz
