0926-1 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

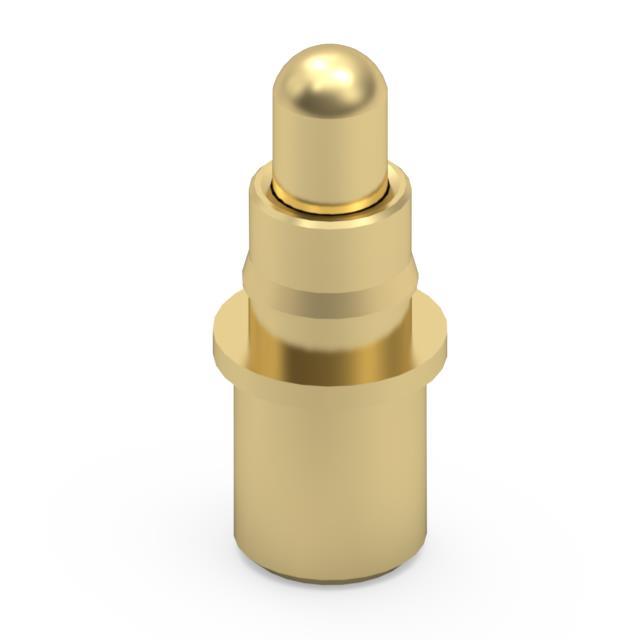

CONTACT SPRING LOADED T/H GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Minimum Working Height [Min] | Minimum Working Height [Min] | Operating Force - Initial | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Plunger Size [diameter] | Plunger Size [diameter] | Pad Layout Dimension [diameter] | Pad Layout Dimension [diameter] | Contact Material | Operating Force - Mid Compression | Contact Finish | Current Rating (Amps) | Recommended Working Height | Recommended Working Height | Mounting Type | Maximum Working Height [Max] | Maximum Working Height [Max] | Mating Cycles |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 1.78 mm | 0.07 in | 10 gf | Sleeve & Plunger (Pogo Pins) | 20 µin | 0.51 µm | 0.042 in | 1.07 mm | 0.085 in | 2.16 mm | Brass Alloy | 60 gf | Gold | 5.2 A | 0.098 in | 2.5 mm | Through Hole | 0.125 in | 3.18 mm | 1000000 |
