76069 Series

Catalog

PRESSURE SWITCHES-TRANS PRESSURE SWITCH

Part	Termination Style	Port Style	Output Type	Maximum Pressure	Maximum Pressure	Operating Pressure [Max]	Operating Pressure [Min]	Operating Pressure [Max]	Operating Pressure [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Pressure Type	Port Size	Port Size	Port Size

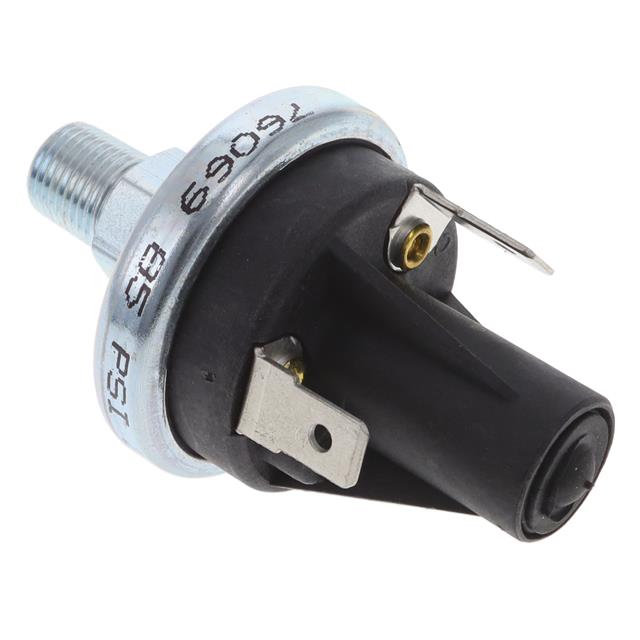

Honeywell Sensing and Productivity Solutions 76069-00000850-01	Quick Connect - 0.250" (6.3mm)	Threaded	SPST-NC	3447.38 kPa	500 PSI	90 PSI	51 PSI	620.53 kPa	351.63 kPa	121 C	-40 C	Cylinder Threaded	Switch	0.125 in	Male NPT	3.18 mm
Honeywell Sensing and Productivity Solutions 76069-00000700-05	Quick Connect - 0.250" (6.3mm)	Threaded	SPST-NC	3447.38 kPa	500 PSI	90 PSI	51 PSI	620.53 kPa	351.63 kPa	121 C	-40 C	Cylinder Threaded	Switch	0.125 in	Male NPT	3.18 mm
Honeywell Sensing and Productivity Solutions 76069-00000600-01
