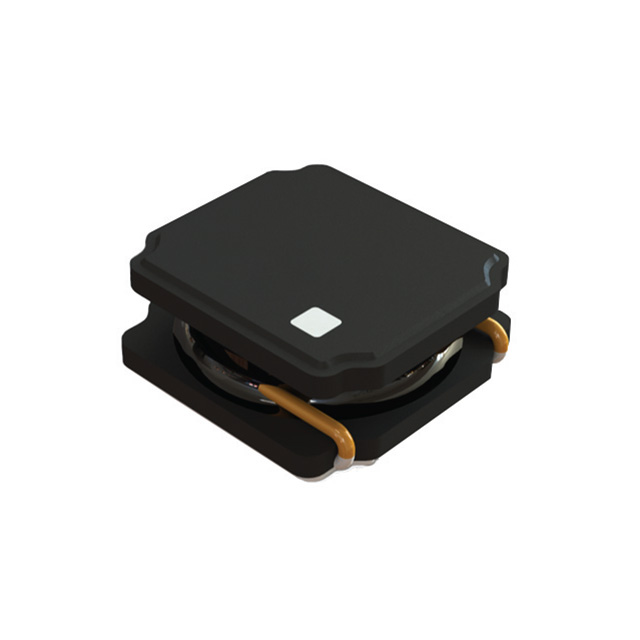

PA4331 Series

Catalog

POWER INDUCTORS - SMD IND, PWR, 3X3X1.2 2.2 UH, SMT

Part	Current - Saturation (Isat)	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Frequency - Self Resonant	Type	Inductance	DC Resistance (DCR) [Max]	Current Rating (Amps)	Material - Core	Mounting Type	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Inductance Frequency - Test	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Tolerance
Pulse Electronics PA4331.222NLT	2.8 A	Nonstandard	1.2 mm	0.047 "	28 MHz	Drum Core Wirewound	2.2 µH	108 mOhm	2.05 A	Iron	Surface Mount	Shielded	125 °C	-40 C	1 MHz	3.2 mm	0.126 "	3.2 mm	0.126 in	20 %
Pulse Electronics PA4331.102NLT	4.2 A	Nonstandard	1.2 mm	0.047 "	51 MHz	Drum Core Wirewound	1 µH	54 mOhm	2.7 A	Iron	Surface Mount	Shielded	125 °C	-40 C	1 MHz	3.2 mm	0.126 "	3.2 mm	0.126 in	20 %
