8623 Series
Manufacturer: Belden Inc.
Beta
⌘K

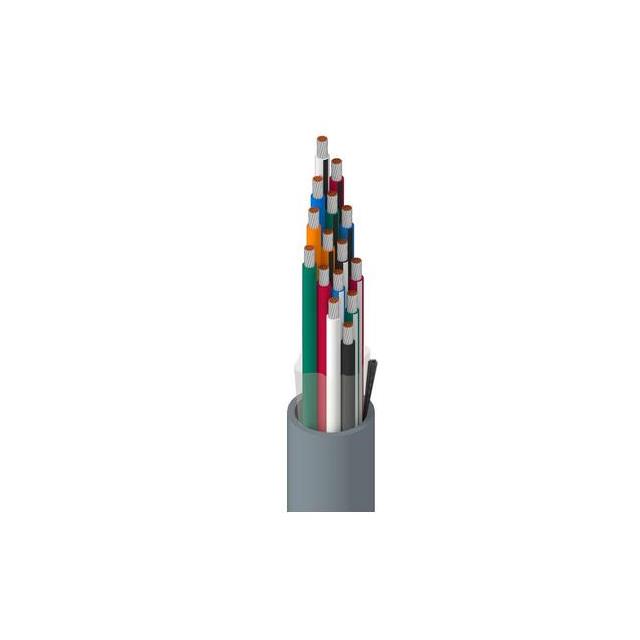

CABLE 15COND 16AWG CHROME
| Part | Jacket (Insulation) Material | Number of Conductors | Wire Gauge | Cable Type | Jacket Color | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Strand [custom] | Conductor Strand [custom] | Usage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length | Length | Conductor Material | Conductor Insulation | Operating Temperature [Max] | Operating Temperature [Min] | Voltage | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Poly-Vinyl Chloride (PVC) | 15 | 16 AWG | Multi-Conductor | Chrome | 0.06 in | 1.524 mm | 19 | 29 | Audio Control Instrumentation | 17.63 mm | 0.694 in | 304.8 m | 1000 ft | Copper Tinned | Poly-Vinyl Chloride (PVC) | 80 °C | -20 ░C | 600 V | ||
Belden Inc. | Poly-Vinyl Chloride (PVC) | 15 | 16 AWG | Multi-Conductor | Chrome | 0.06 in | 1.524 mm | 19 | 29 | Audio Control Instrumentation | 17.63 mm | 0.694 in | Copper Tinned | Poly-Vinyl Chloride (PVC) | 80 °C | -20 ░C | 600 V | 2000 ft | 609.6 m |
