Data-Con-X Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K

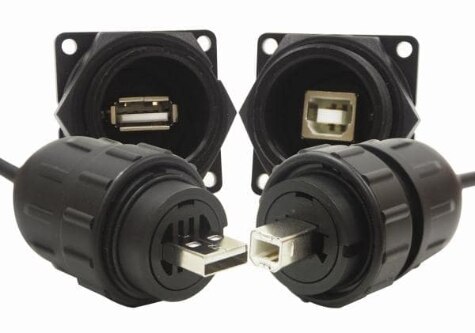

USB SEALED CONNECTOR, USB TYPE B, USB 2.0, PLUG, 4 POSITION, CABLE MOUNT, IP67, IP68
| Part | Shell/Shielding Material | Insulation Color | Material Flammability Rating | Contact Finish | Mating Cycles | Specifications | Shielding | Current Rating (Amps) | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Connector Type | Number of Contacts | Features | Gender | Number of Ports | Orientation | LED Color | Number of Positions/Contacts | Tab Direction | Contact Material | Ratings | Termination | Number of Rows | Mounting Feature | Wire Gauge [Max] | Wire Gauge [Min] | Color | Dielectric Material | Number of Positions | Contact Type | Connector Style | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Number of Rows [custom] | Flange Feature | Convert To (Adapter End) | Convert From (Adapter End) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SWITCHCRAFT/CONXALL | Copper Alloy | White | UL94 V-0 | Gold | 350 | USB 2.0 | Shielded | 1.5 A | Free Hanging (In-Line) | 50 °C | 0 °C | IP67/IP68 | USB-B (USB TYPE-B) | 4 | Circular Threaded Coupling | Plug | 1 | ||||||||||||||||||||||
 SWITCHCRAFT/CONXALL | Gold | Unshielded | Flange Panel Mount | IP67/IP68 | Jack | Quick Connect | 1 | 90 ° | Does Not Contain LED | 8p8c (RJ45 Ethernet) | Down | Copper Alloy | Cat5e | IDC | 1 | ||||||||||||||||||||||||
 SWITCHCRAFT/CONXALL | Copper Alloy | Black | UL94 V-0 | Gold | 500 | USB 2.0 | Shielded | Panel Mount | IP67/IP68 | USB - mini B | 5 | Circular Bayonet Coupling | Receptacle | 1 | PC Board | Bulkhead - Front Side Nut | |||||||||||||||||||||||
 SWITCHCRAFT/CONXALL | 500 | USB 2.0 | Shielded | Panel Mount Through Hole | IP67/IP68 | USB - mini B | 5 | Circular Bayonet Coupling | Receptacle | 1 | Solder | Bulkhead - Front Side Nut | |||||||||||||||||||||||||||
 SWITCHCRAFT/CONXALL | Shielded | Panel Mount | 80 °C | -20 ░C | IP67/IP68 | HDMI | 19 | Receptacle | 1 | PC Board | Flange | ||||||||||||||||||||||||||||
 SWITCHCRAFT/CONXALL | UL94 V-0 | Gold | 2 A | Free Hanging (In-Line) | 85 °C | -55 C | IP67 - Dust Tight Waterproof | Receptacle Female Sockets | Copper Alloy | 26 AWG | 22 AWG | Black | Thermoplastic | 15 | Signal | D-Sub High Density | (DE E) High Density | 1 | 3 | Cable Side Male Jackscrew | |||||||||||||||||||
 SWITCHCRAFT/CONXALL | Copper Alloy | White | UL94 V-0 | Gold | 350 | USB 2.0 | Shielded | 1.5 A | Free Hanging (In-Line) | 50 °C | 0 °C | IP67/IP68 | USB-A (USB TYPE-A) | 4 | Circular Threaded Coupling | Plug | 1 | ||||||||||||||||||||||
 SWITCHCRAFT/CONXALL | Bulkhead Panel Mount | USB-A (USB TYPE-A) Receptacle | USB-A (USB TYPE-A) Receptacle | ||||||||||||||||||||||||||||||||||||
 SWITCHCRAFT/CONXALL | 350 | USB 2.0 | Shielded | 1.5 A | Free Hanging (In-Line) | 50 °C | 0 °C | IP67/IP68 | USB-A (USB TYPE-A) | 4 | Circular Bayonet Coupling | Plug | 1 |
