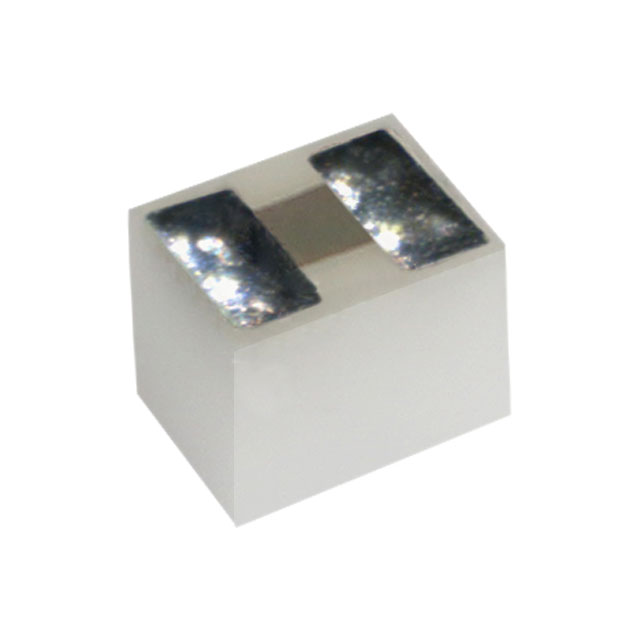

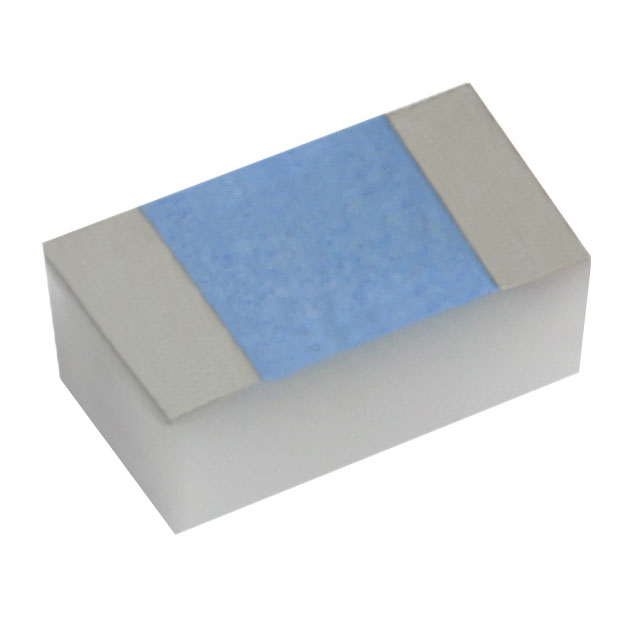

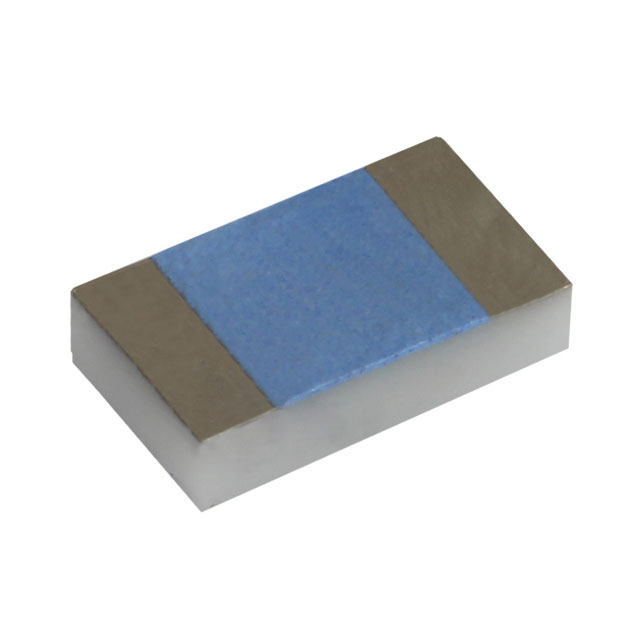

CH Series

Catalog

HIGH FREQUENCY/RF RESISTORS 0.3W 50OHM 2%

Part	Height - Seated (Max)	Resistance	Package / Case	Size / Dimension Width	Size / Dimension Length	Composition	Tolerance	Features	Package Name	Temperature Coefficient	Number of Terminations	Power (Watts)	Power (Watts) Options	Operating Temperature (Max)	Operating Temperature (Min)
Vishay Dale CH02016-50RGFTA	0.022 in	50 Ohms	02016 (0504 Metric)	0.015 in	0.019 in	Thin Film	2 %	High Frequency RF	02016	100 ppm/°C	2	100 mW	1/10W	155 °C	-55 °C
Vishay Dale CH0402-10RJNPT	0.025 in	10 Ohms	0402 (1005 Metric)	0.024 in	0.039 in	Thin Film	5 %	High Frequency RF	0402	100 ppm/°C	2	50 mW	1/20W	155 °C	-55 °C
Vishay Dale CH0402-18RJFPT	0.025 in	18 Ohm	0402 (1005 Metric)	0.024 in	0.039 in	Thin Film	5 %	High Frequency RF	0402	100 ppm/°C	2	50 mW	1/20W	155 °C	-55 °C
Vishay Dale CH02016-100RGFTD	0.022 in	100 Ohms	02016 (0504 Metric)	0.015 in	0.019 in	Thin Film	2 %	High Frequency RF	02016	100 ppm/°C	2	30 mW	1/32W	155 °C	-55 °C
Vishay Dale CH0402-50RGFW	0.025 in	50 Ohms	0402 (1005 Metric)	0.024 in	0.039 in	Thin Film	2 %	High Frequency RF	0402	100 ppm/°C	2	50 mW	1/20W	155 °C	-55 °C
Vishay Dale CH0402-100RFNPT	0.025 in	100 Ohms	0402 (1005 Metric)	0.024 in	0.039 in	Thin Film	1 %	High Frequency RF	0402	100 ppm/°C	2	50 mW 300 mW	1/20W	155 °C	-55 °C
Vishay Dale CH0603-100RGFT	0.025 in	100 Ohms	0603 (1608 Metric)	0.03 in	0.06 in	Thin Film	2 %	High Frequency RF	0603	100 ppm/°C	2	0.125 W	1/8W	155 °C	-55 °C
Vishay Dale CH0402-255RFNW	0.025 in	255 Ohm	0402 (1005 Metric)	0.024 in	0.039 in	Thin Film	5 %	High Frequency RF	0402	100 ppm/°C	2	50 mW	1/20W	155 °C	-55 °C
Vishay Dale CH0402-33RJFW	0.025 in	33 Ohms	0402 (1005 Metric)	0.024 in	0.039 in	Thin Film	5 %	High Frequency RF	0402	100 ppm/°C	2	50 mW	1/20W	155 °C	-55 °C
Vishay Dale CH02016-50RGFW	0.022 in	50 Ohms	02016 (0504 Metric)	0.015 in	0.019 in	Thin Film	2 %	High Frequency RF	02016	100 ppm/°C	2	30 mW	1/32W	155 °C	-55 °C
