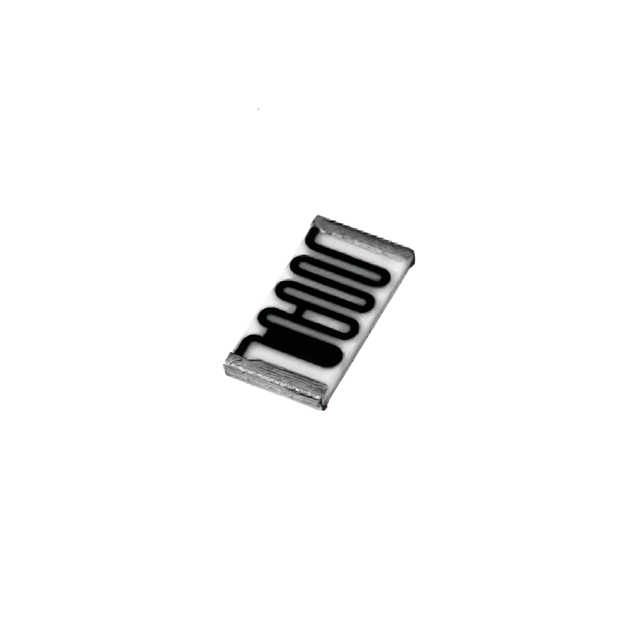

CRHV Series

Catalog

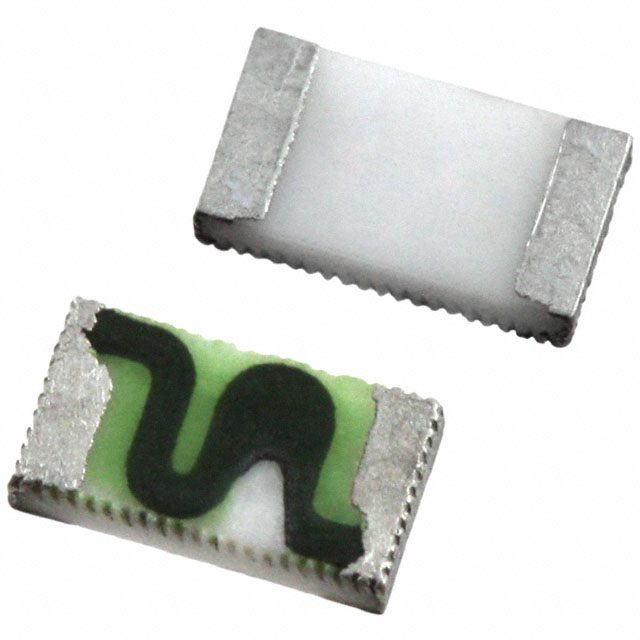

SMD CHIP RESISTOR, 1 GOHM, ± 1%, 300 MW, 1206 [3216 METRIC], THICK FILM, HIGH VOLTAGE

Part	Temperature Coefficient	Features	Package Name	Composition	Size / Dimension Length	Size / Dimension Width	Power (Watts)	Number of Terminations	Operating Temperature (Max)	Operating Temperature (Min)	Package / Case	Tolerance	Height - Seated (Max)	Resistance
Vishay Dale CRHV1206AF1G00FKE5	100 ppm/°C	High Voltage	1206	Thick Film	0.125 in	0.063 in	300 mW	2	155 °C	-55 °C	1206 (3216 Metric)	1 %	0.027 in	1 GOhm
Vishay Dale CRHV1206AF200MJNET	200 ppm/°C	High Voltage	1206	Thick Film	0.125 in	0.063 in	300 mW	2	155 °C	-55 °C	1206 (3216 Metric)	5 %	0.027 in	200 MOhm

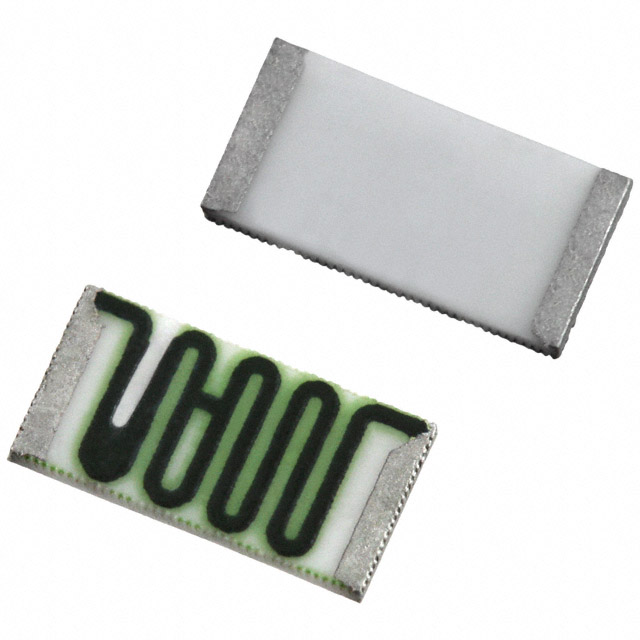

Vishay Dale CRHV2512AF51M0FKE5	100 ppm/°C	High Voltage	2512	Thick Film	0.25 in	0.126 in	1 W	2	155 °C	-55 °C	2512 (6332 Metric) 2512 (6432 Metric)	1 %	0.027 in	51 MOhms
Vishay Dale CRHV1206AF80M0FKET	100 ppm/°C	High Voltage	1206	Thick Film	0.125 in	0.063 in	300 mW	2	155 °C	-55 °C	1206 (3216 Metric)	1 %	0.027 in	80 MOhms
Vishay Dale CRHV1206AF200MFLST
Vishay Dale CRHV1206AF100MFKE5	100 ppm/°C	High Voltage	1206	Thick Film	0.125 in	0.063 in	300 mW	2	155 °C	-55 °C	1206 (3216 Metric)	1 %	0.027 in	100 MOhm
Vishay Dale CRHV1206AF100MFKF1	100 ppm/°C	High Voltage Moisture Resistant	1206	Thick Film	0.125 in	0.063 in	300 mW	2	155 °C	-55 °C	1206 (3216 Metric)	1 %	0.027 in	100 MOhm
Vishay Dale CRHV1206AF200MJNE5	200 ppm/°C	High Voltage	1206	Thick Film	0.125 in	0.063 in	300 mW	2	155 °C	-55 °C	1206 (3216 Metric)	5 %	0.027 in	200 MOhm
