Triad 01 Solder Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

T01-0550-P05=INDUSTRIAL CONNEC ROHS COMPLIANT: YES

Part	Material Flammability Rating	Features	Contact Finish - Mating	Mounting Type	Primary Material	Voltage Rating	Orientation	Shielding	Number of Positions	Connector Type	Shell Material	Fastening Type	Current Rating (Amps)	Shell Finish	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection
TE Connectivity AMP Connectors 2-1437719-1
TE Connectivity AMP Connectors 3-1437719-3	UL94 V-2	Strain Relief	Gold	Free Hanging (In-Line)	Metal	60 VAC	Keyed	Shielded	4	Plug Female Sockets	Brass	Threaded	3 A	Tribor	80 °C	-40 C	IP65 - Dust Tight Water Resistant
TE Connectivity AMP Connectors 3-1437719-3	UL94 V-2	Strain Relief		Free Hanging (In-Line)	Metal	60 VAC	Keyed	Shielded	4	Receptacle Female Sockets	Brass	Threaded	3 A	Tribor	85 °C	-40 C	IP65 - Dust Tight Water Resistant

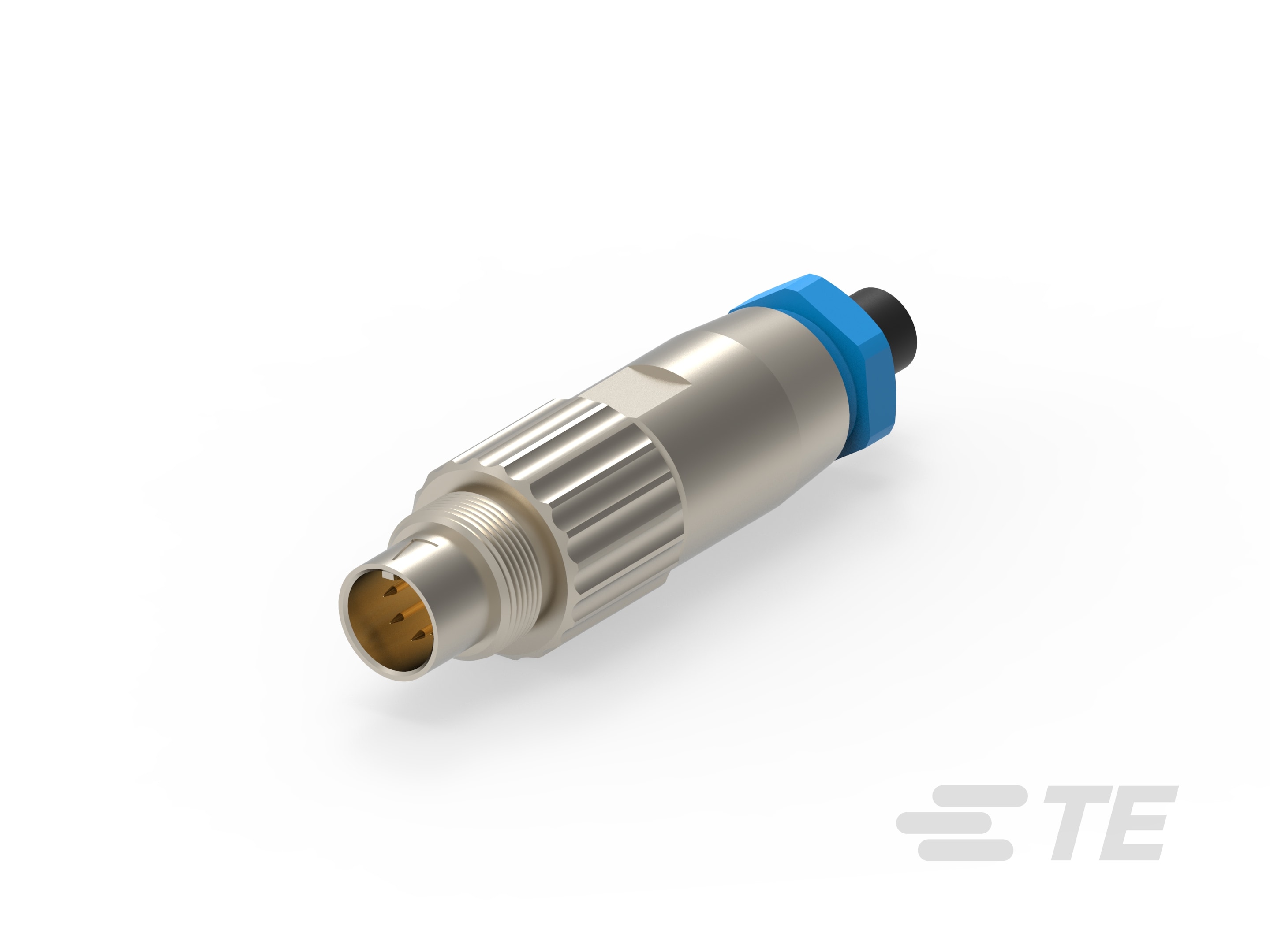

TE Connectivity AMP Connectors 2-1437719-4	UL94 V-2	Strain Relief		Free Hanging (In-Line)	Metal	60 VAC	Keyed	Shielded	7	Plug Male Pins	Brass	Threaded		Tribor	85 °C	-40 C	IP65 - Dust Tight Water Resistant

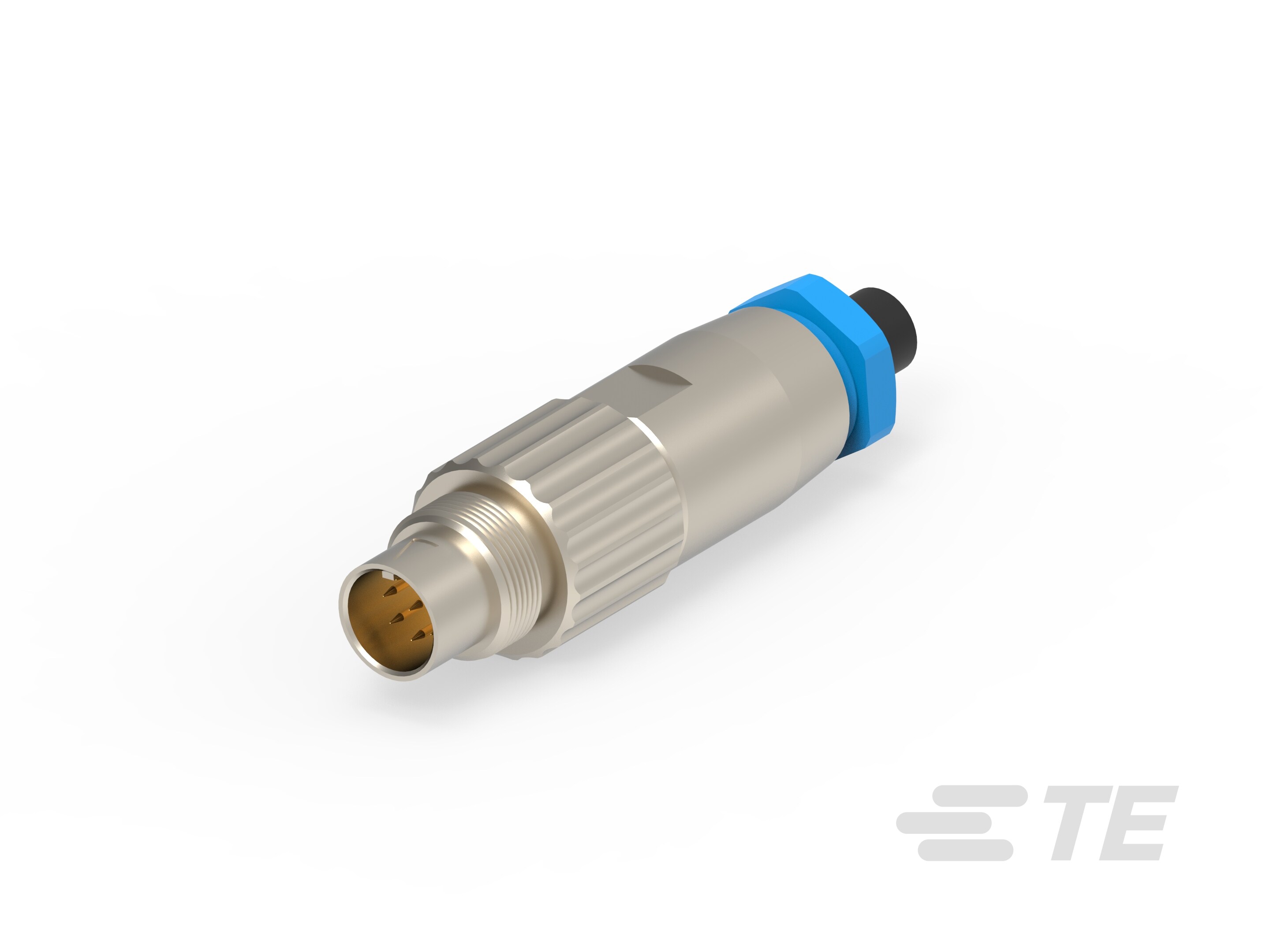

TE Connectivity AMP Connectors 2-1437719-7	UL94 V-2	Strain Relief		Free Hanging (In-Line)	Metal	60 VAC	Keyed	Shielded	8	Plug Male Pins	Brass	Threaded		Tribor	85 °C	-40 C	IP65 - Dust Tight Water Resistant
TE Connectivity AMP Connectors 3-1437719-0	UL94 V-2	Strain Relief		Free Hanging (In-Line)	Metal	60 VAC	Keyed	Shielded		Receptacle Female Sockets	Brass	Threaded	3 A	Tribor	85 °C	-40 C	IP65 - Dust Tight Water Resistant

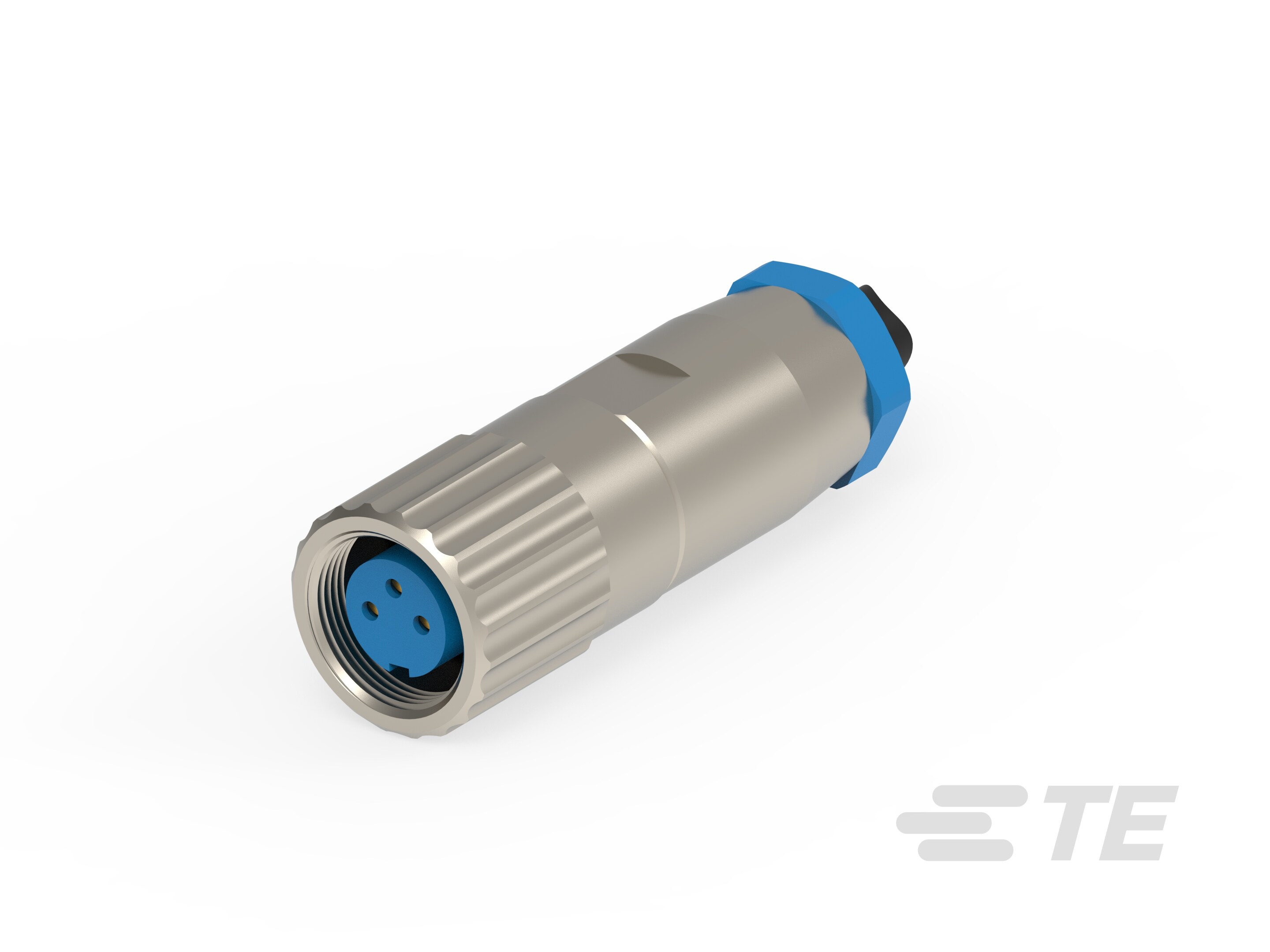

TE Connectivity AMP Connectors 4-1437719-2	UL94 V-2	Strain Relief		Free Hanging (In-Line)	Metal	60 VAC	Keyed	Shielded	8	Receptacle Female Sockets	Brass	Threaded		Tribor	85 °C	-40 C	IP65 - Dust Tight Water Resistant
TE Connectivity AMP Connectors 2-1437719-1	UL94 V-2	Strain Relief		Free Hanging (In-Line)	Metal	60 VAC	Keyed	Shielded	5	Plug Male Pins	Brass	Threaded	3 A	Tribor	85 °C	-40 C	IP65 - Dust Tight Water Resistant
