6EDL04 Series

Manufacturer: INFINEON

Catalog

EICEDRIVER™ 600 V THREE PHASE DRIVER IC WITH TYPICAL 0.17 A SOURCE AND 0.375 A SINK OUTPUT CURRENTS. IT COMES WITH A FUNCTIONAL LEVELSHIFT PACKAGE AND WORKS WITH MOSFETS.

Part	Driven Configuration	Number of Drivers	Input Type	Mounting Type	High Side Voltage - Max (Bootstrap) [Max]	Rise / Fall Time (Typ)	Package / Case	Voltage - Supply [Min]	Voltage - Supply [Max]	Logic Voltage - VIL, VIH [custom]	Logic Voltage - VIL, VIH [custom]	Supplier Device Package	Gate Type	Channel Type	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Package / Case [custom]	Package / Case [custom]

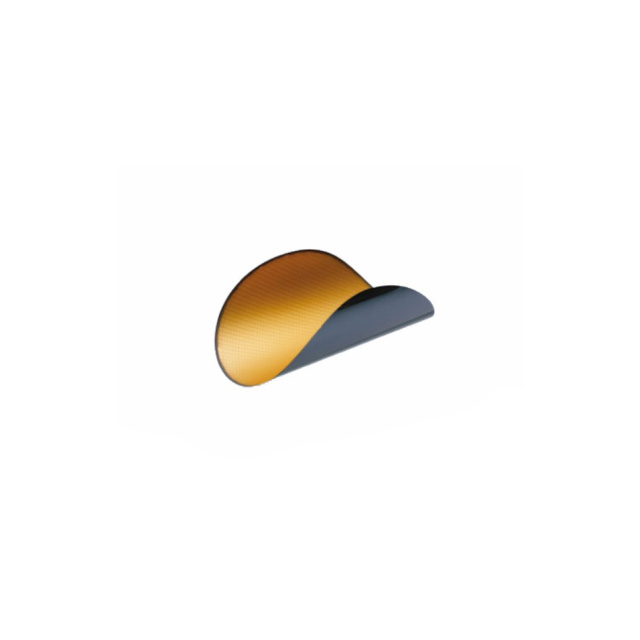

INFINEON 6EDL04N06PCX1SA1	Half-Bridge	6	Non-Inverting	Surface Mount	600 V	26 ns 60 ns	Die	13 V	17.5 V	1.7 V	1.1 V	Chip	IGBT	3-Phase	-40 C	125 °C
INFINEON 6EDL04I06PCX1SA1	Half-Bridge	6	Non-Inverting	Surface Mount	600 V	26 ns 60 ns	Die	13 V	17.5 V	1.7 V	1.1 V	Chip	IGBT	3-Phase	-40 C	125 °C
INFINEON 6EDL04N02PRXUMA1	Half-Bridge	6	Non-Inverting	Surface Mount	200 V	26 ns 60 ns	28-TSSOP	10 VDC	17.5 V	1.7 V	1.1 V	PG-TSSOP-28	IGBT MOSFET (N-Channel P-Channel) N-Channel P-Channel MOSFET	3-Phase	-40 C	125 °C	0.173 " 4.4 mm
INFINEON 6EDL04I06NCX1SA1	Half-Bridge	6	Non-Inverting	Surface Mount	600 V	26 ns 60 ns	Die	13 V	17.5 V	1.7 V	1.1 V	Chip	IGBT	3-Phase	-40 C	125 °C
INFINEON 6EDL04N06PTXUMA1	Half-Bridge	6	Non-Inverting	Surface Mount	620 V	26 ns 60 ns	28-SOIC	10 VDC	17.5 V	1.7 V	1.1 V	PG-DSO-28	IGBT MOSFET (N-Channel P-Channel) N-Channel P-Channel MOSFET	3-Phase	-40 C	125 °C		0.295 "	7.5 mm
INFINEON 6EDL04I06PTXUMA1	Half-Bridge	6	Non-Inverting	Surface Mount	600 V	26 ns 60 ns	28-SOIC	13 V	17.5 V	1.7 V	1.1 V	PG-DSO-28	IGBT MOSFET (N-Channel P-Channel) N-Channel P-Channel MOSFET	3-Phase	-40 C	125 °C		0.295 "	7.5 mm
