EEU-FR Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

Catalog

CAP ALUM 47UF 20% 25V RADIAL TH

...

Part	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Lifetime @ Temp.	Size / Dimension [diameter]	Size / Dimension [diameter]	Mounting Type	Polarization	Package / Case	Capacitance	Impedance	Ripple Current @ High Frequency	Lead Spacing	Lead Spacing	Ripple Current @ Low Frequency	Applications	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Voltage - Rated	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max)

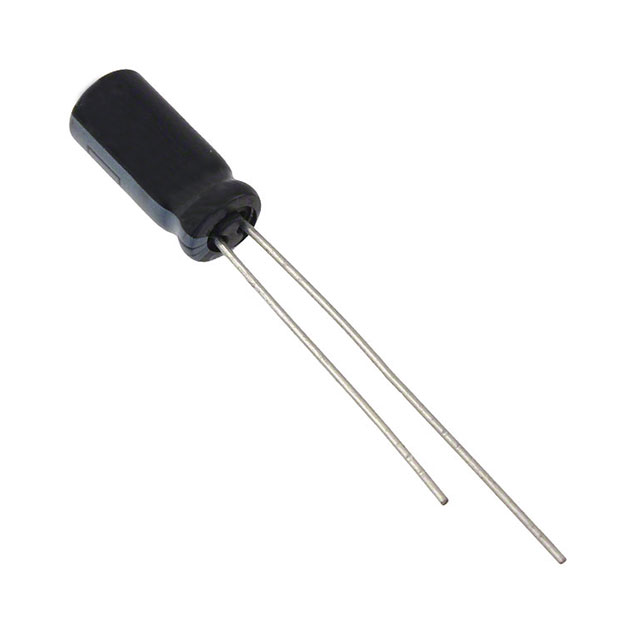

Panasonic Industrial Automation Sales EEU-FR1E470	-40 °C	105 ░C	20 %	5000 Hrs	5 mm	0.197 "	Through Hole	Polar	Radial Can	47 µF	300 mOhms	280 mA	2 mm	0.079 in	196 mA	General Purpose	0.492 in	12.5 mm	25 VDC

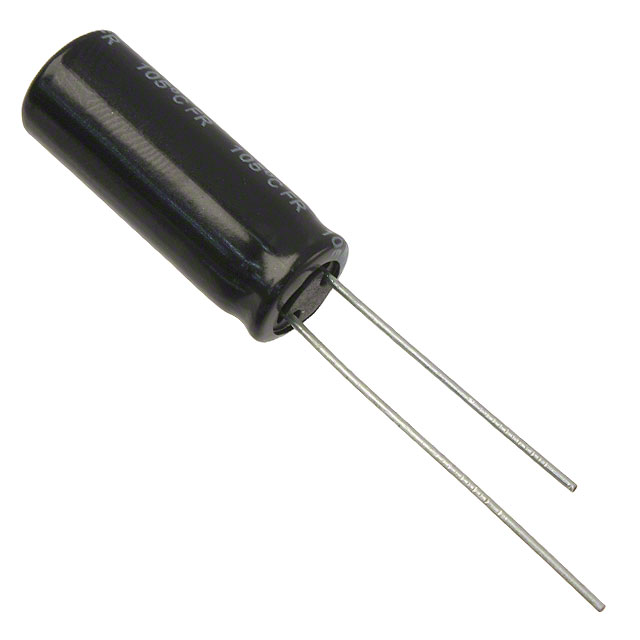

Panasonic Industrial Automation Sales EEU-FR1E222S	-40 °C	105 ░C	20 %	10000 Hrs	16 mm	0.63 in	Through Hole	Polar	Radial Can	2200 µF	17 mOhms	3.3 A	7.5 mm	0.295 in	2.64 A	General Purpose			25 VDC	22 mm	0.866 in

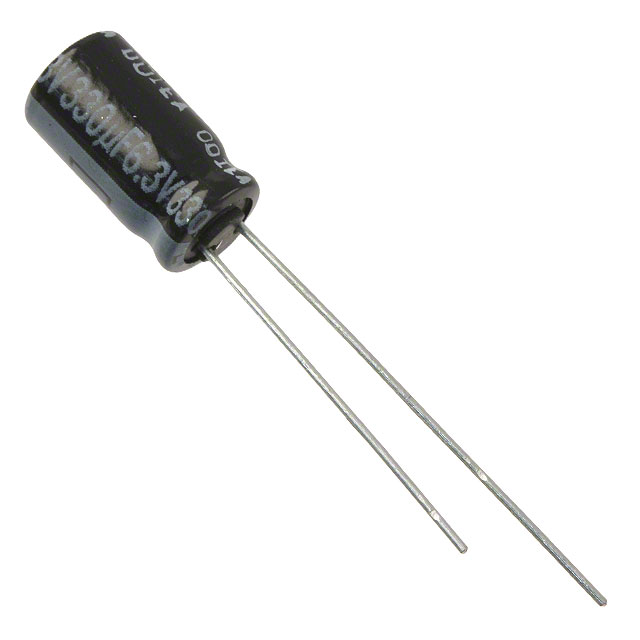

Panasonic Industrial Automation Sales EEU-FR1E101B	-40 °C	105 ░C	20 %	5000 Hrs	6.3 mm	0.248 in	Through Hole	Polar	Radial Can	100 µF	130 mOhms	455 mA	5 mm	0.197 in	318.5 mA	General Purpose			25 VDC	12.7 mm	0.5 in
Panasonic Industrial Automation Sales EEU-FR1C152	-40 °C	105 ░C	20 %	10000 Hrs	10 mm	0.394 in	Through Hole	Polar	Radial Can	1.5 mF	20 mOhms	2.18 A	5 mm	0.197 in	1.744 A	General Purpose			16 V	22 mm	0.866 in
Panasonic Industrial Automation Sales EEU-FR1A102B	-40 °C	105 ░C	20 %	8000 Hrs	10 mm	0.394 in	Through Hole	Polar	Radial Can	1000 µF	28 mOhms	1.79 A	5 mm	0.197 in	1.3425 A	General Purpose	0.689 in	17.5 mm	10 V

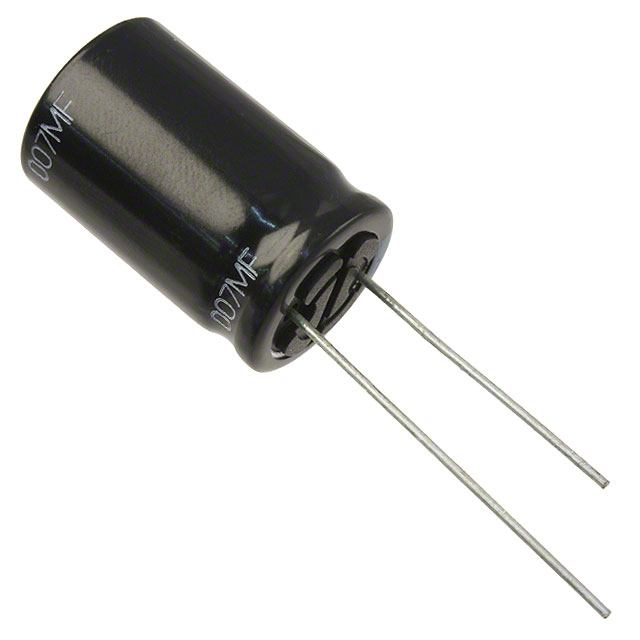

Panasonic Industrial Automation Sales EEU-FR1J221L	-40 °C	105 ░C	20 %	10000 Hrs	10 mm	0.394 in	Through Hole	Polar	Radial Can	220 µF	33 mOhms	1.5 A	5 mm	0.197 in	1.05 A	General Purpose			63 V	27 mm	1.063 in

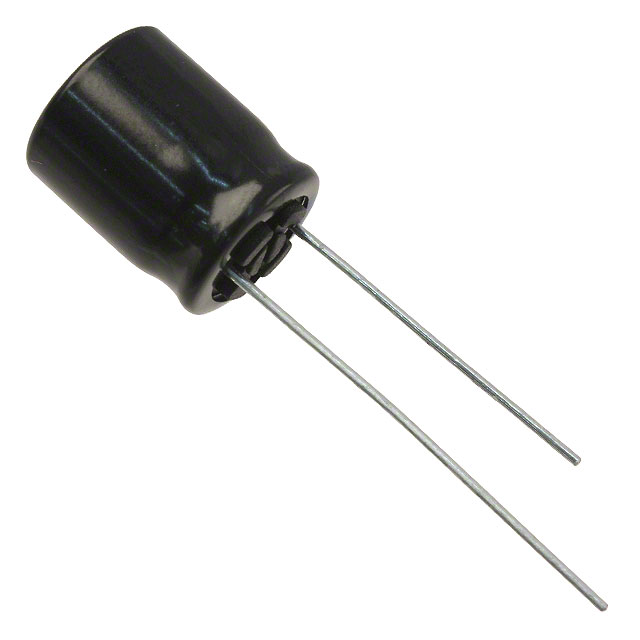

Panasonic Industrial Automation Sales EEU-FR1A821	-40 °C	105 ░C	20 %	6000 Hrs	10 mm	0.394 in	Through Hole	Polar	Radial Can	820 µF	43 mOhms	1.29 A	5 mm	0.197 in	967.5 mA	General Purpose	0.551 "		10 V			14 mm
Panasonic Industrial Automation Sales EEU-FR1A102	-40 °C	105 ░C	20 %	8000 Hrs	10 mm	0.394 in	Through Hole	Polar	Radial Can	1000 µF	28 mOhms	1.79 A	5 mm	0.197 in	1.3425 A	General Purpose	0.689 in	17.5 mm	10 V
Panasonic Industrial Automation Sales EEU-FR1V681LB	-40 °C	105 ░C	20 %	10000 Hrs	10 mm	0.394 in	Through Hole	Polar	Radial Can	680 µF	18 mOhms	2.47 A	5 mm	0.197 in	1.853 A	General Purpose			35 V	27 mm	1.063 in
Panasonic Industrial Automation Sales EEU-FR1E681L	-40 °C	105 ░C	20 %	9000 Hrs	8 mm	0.315 "	Through Hole	Polar	Radial Can	680 µF	30 mOhms	1.56 A	3.5 mm	0.138 in	1.17 A	General Purpose			25 VDC	22 mm	0.866 in
