KMR731 Series
Manufacturer: Littelfuse/Commercial Vehicle Products
Beta
⌘K

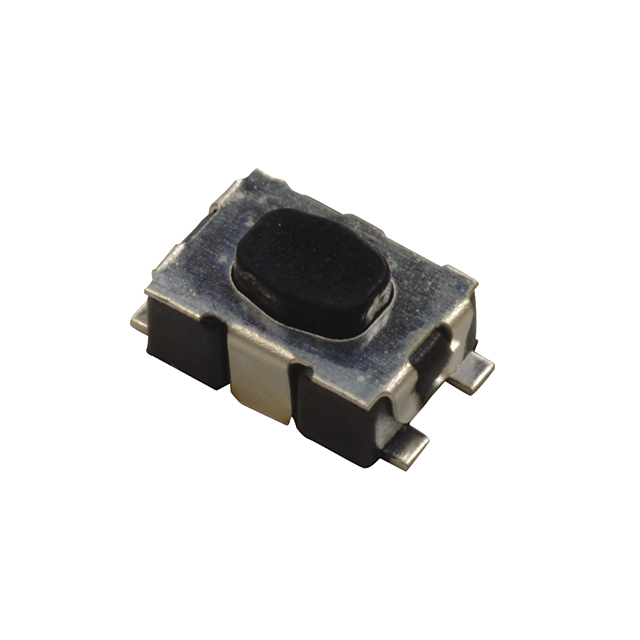

TACTILE SWITCH, SPST-NO, KMR7 SERIES, TOP ACTUATED, SURFACE MOUNT, OVAL BUTTON, 300 GF
| Part | Actuator Orientation | Mounting Type | Actuator Type | Termination Style | Circuit | Switch Function | Outline [y] | Outline [x] | Operating Temperature [Max] | Operating Temperature [Min] | Contact Rating @ Voltage | Illumination | Mechanical Life | Operating Force | Ingress Protection | Actuator Height off PCB, Vertical [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Littelfuse/Commercial Vehicle Products | Top Actuated | Surface Mount | Standard | Gull Wing | SPST-NO | Off-Mom | 2.8 mm | 4.2 mm | 85 °C | -40 °C | 0.05 A | Non-Illuminated | 100000 Cycles | 300 gf | IP67 - Dust Tight Waterproof | 2.5 mm |
