SCP7TTJ5 Series

Catalog

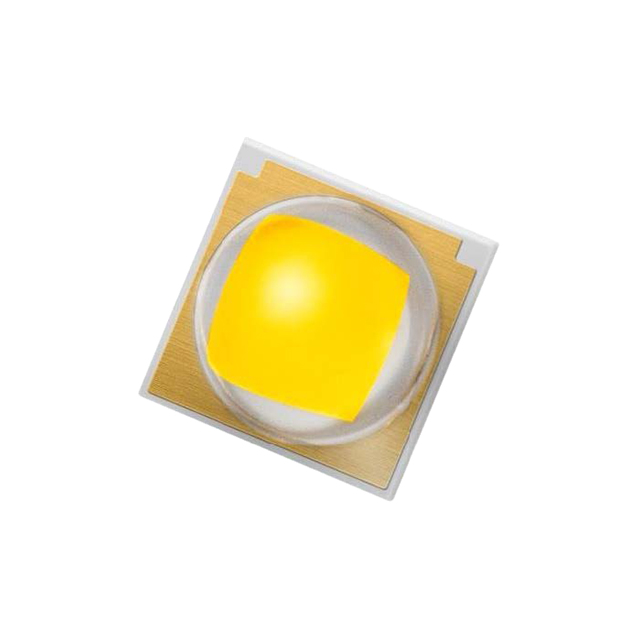

LED LH231B NEUT WHT 4000K SMD

Part	Thermal Resistance of Package	Color	CRI (Color Rendering Index)	Voltage - Forward (Vf) (Typ)	Viewing Angle	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Mounting Type	Lumens/Watt @ Current - Test	Flux @ 85°C, Current - Test [Min]	Flux @ 85°C, Current - Test [Max]	Supplier Device Package	Current - Max [Max]	CCT (K)	CCT (K)
Samsung Semiconductor, Inc. SCP7TTJ5HEL1TUQF6E	2 °C/W	Neutral White	70	2.9 V	120 °	0.11 in	2.8 mm	2.8 mm	0.11 "	0.019 in	0.48 mm	1111 (2828 Metric)	Surface Mount	167 lm/W	310 lm	370 lm	SMD	2 A	4000 K	3-Step MacAdam Ellipse
Samsung Semiconductor, Inc. SCP7TTJ5HEL1TLPF6E	2 °C/W	Neutral White	70	2.9 V	120 °	0.11 in	2.8 mm	2.8 mm	0.11 "	0.019 in	0.48 mm	1111 (2828 Metric)	Surface Mount	158 lm/W	290 lm		SMD	2 A	4000 K
