JS0408FP Series

Catalog

SWITCH SLIDE DIP SPST 0.025A 24V

Part	Length	Length	Body Material	Electrical Life	Mechanical Life	Number of Positions	Washable	Mounting Type	Termination Style	Current Rating (Amps)	Circuit	Pitch	Pitch	Pitch	Voltage Rating	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Height Above Board [z]	Height Above Board [z]	Contact Material	Actuator Level

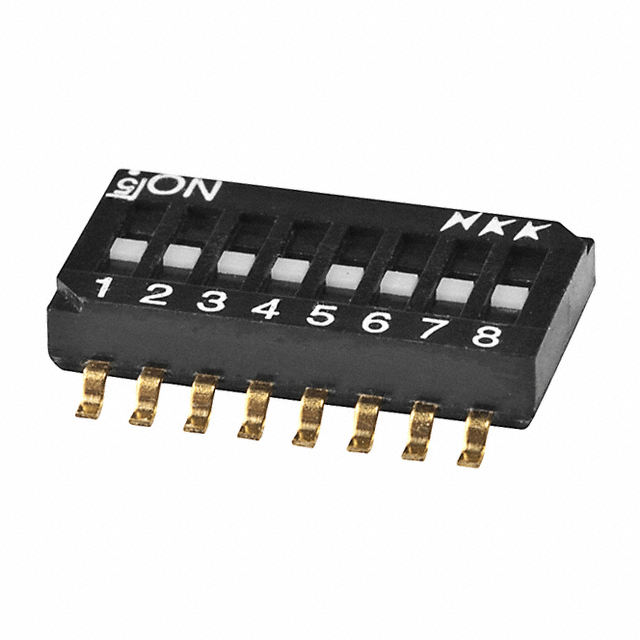

NKK Switches JS0408FP4	11.3 mm	0.445 in	Polyamide (PA) Nylon Glass Filled	2000 Steps	2000 Cycles	8		Surface Mount	Gull Wing	25 mA	SPST	0.05 "	1.27 mm	Half	24 VDC	Gold	85 °C	-30 ░C	Slide (Standard)	2.2 mm	0.087 in	Copper Alloy	Flush Recessed

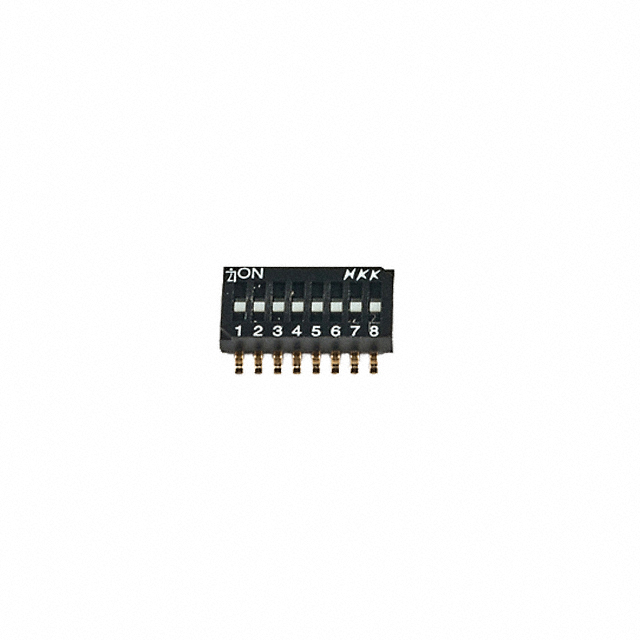

NKK Switches JS0408FP4-S	11.3 mm	0.445 in	Polyamide (PA) Nylon Glass Filled	2000 Steps	2000 Cycles	8		Surface Mount	Gull Wing	25 mA	SPST	0.05 "	1.27 mm	Half	24 VDC	Gold	85 °C	-30 ░C	Slide (Standard)	2.2 mm	0.087 in	Copper Alloy	Flush Recessed
