AD0F1C-P Series
Manufacturer: ODU
Beta
⌘K

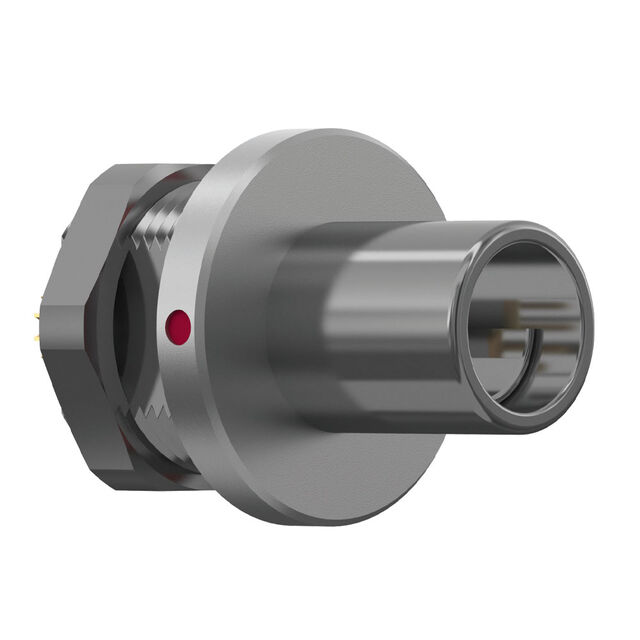

ODU MINI-SNAP PLUG, PANEL MOUNT,
| Part | Ingress Protection | Mounting Feature | Current Rating (Amps) | Applications | Connector Type | Primary Material | Insert Material | Shell Size - Insert [custom] | Color | Shell Material | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Orientation [custom] | Shell Finish | Contact Material | Shielding | Material Flammability Rating | Contact Finish - Mating | Fastening Type | Mounting Type | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
IP68 - Dust Tight Waterproof | Bulkhead - Rear Side Nut | 4 A | Industrial Medical Military Testing Equipment & Measurement | Plug Male Pins | Metal | Polyetheretherketone (PEEK) | 0 | Silver | Brass | 9 | 120 °C | -40 C | 1 | Chrome over Nickel | Brass | Unshielded | UL94 V-0 | Gold | Push-Pull | Panel Mount | 300 VDC | |
IP68 - Dust Tight Waterproof | Bulkhead - Rear Side Nut | 7.5 A | Industrial Medical Military Testing Equipment & Measurement | Plug Male Pins | Metal | Polyetheretherketone (PEEK) | 0 | Silver | Brass | 4 | 120 °C | -40 C | 1 | Chrome over Nickel | Brass | Unshielded | UL94 V-0 | Gold | Push-Pull | Panel Mount | 300 VDC |
