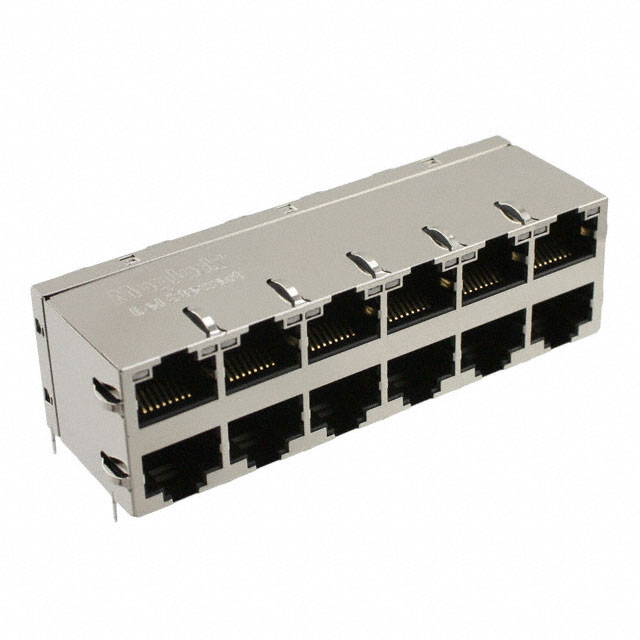

863 Series
Manufacturer: Bel Fuse Inc.
Beta
⌘K
MODULAR CONNECTORS / ETHERNET CONNECTORS
| Part | Shield Material | Housing Material | Contact Finish Thickness | Contact Finish Thickness | Applications | Shielding | Height Above Board [z] | Height Above Board [z] | Number of Ports | Contact Finish | Orientation | Number of Cores per Jack | Number of Rows [custom] | Features | Termination | LED Color | Tab Direction | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bel Fuse Inc. | Copper Alloy | Polybutylene Terephthalate (PBT) | 50 µin | 1.27 µm | 10/100/1000 Base-T AutoMDIX | EMI Finger Shielded | 25.5 mm | 1.004 in | 16 | Gold | 90 ° | 8 | 2 | Board Guide | Solder | Green Orange - Green Orange | Up and Down | Copper Alloy | 70 °C | 0 °C | Through Hole | RJ45 |
 Bel Fuse Inc. | Copper Alloy | Polybutylene Terephthalate (PBT) | 50 µin | 1.27 µm | 10/100/1000 Base-T AutoMDIX | EMI Finger Shielded | 25.5 mm | 1.004 in | 12 | Gold | 90 ° | 8 | 2 | Board Guide | Solder | Green Orange - Green Orange | Up and Down | Copper Alloy | 70 °C | 0 °C | Through Hole | RJ45 |
