RF3-46 Series
Manufacturer: Adam Tech
Beta
⌘K

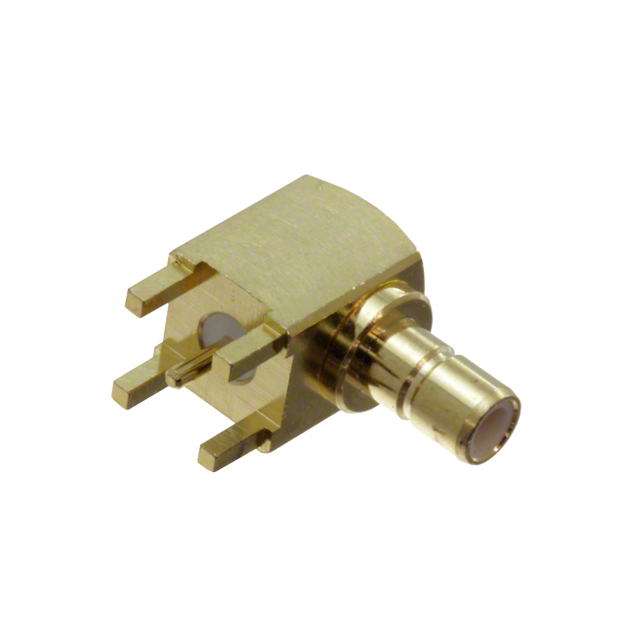

SMB JACK RA PCB 4GHZ BRS BOD
| Part | Body Finish | Voltage Rating | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Body Material | Impedance | Connector Style | Center Contact Material | Frequency - Max [Max] | Contact Termination | Mounting Type | Fastening Type | Number of Ports | Housing Color | Connector Type | Shield Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | Gold | 335 V | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Gold | Brass | 50 Ohms | SMB | Brass | 4 GHz | Solder | Right Angle Through Hole | Snap-On | 1 | White | Jack Male Pin | Solder |
