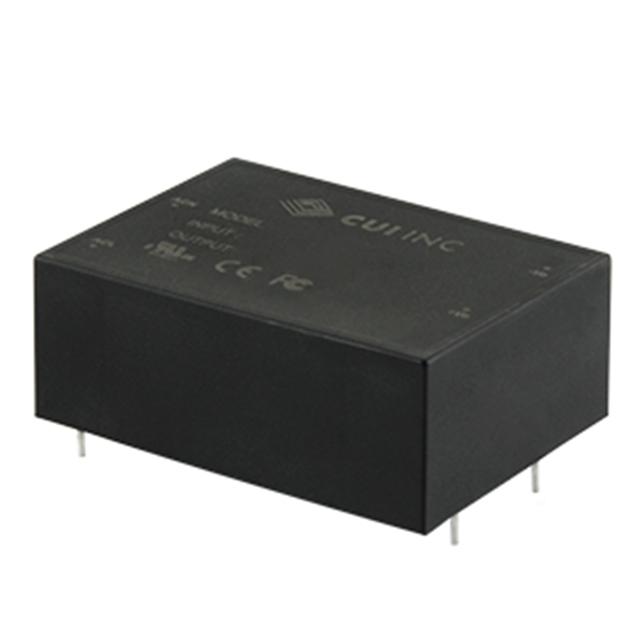

PSK-15B Series
Manufacturer: CUI Inc.
Beta
⌘K
AC/DC POWER MODULES AC-DC 15 W 48 V 1 OTPT NCAPSLATD PCB
| Part | Number of Outputs | Voltage - Output 1 | Power (Watts) | Package / Case | Mounting Type | Current - Output (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Features | Efficiency | Load Regulation | Approval Agency | Applications | Type | Standard Number | Line Regulation | Voltage - Input [Min] | Voltage - Input [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | 1 | 48 V | 15 W | 4-DIP Module | Through Hole | 320 mA | 70 °C | -25 °C | 0.91 " | 45 mm | 62 mm | 1.77 in | 23.1 mm | 2.44 in | Universal Input | 84.63 % | ±1% | CB Scheme EN FCC IEC UL | ITE (Commercial) | Enclosed | 60950-1 61000-3-2 61000-3-3 62368-1 | 0.5 % | ||
CUI Inc. | 1 | 9 V | 15 W | 4-DIP Module | Through Hole | 1.6 A | 70 °C | -25 °C | 0.91 " | 45 mm | 62 mm | 1.77 in | 23.1 mm | 2.44 in | Universal Input | 84.28 % | ±1% | CB Scheme EN FCC IEC UL | ITE (Commercial) | Enclosed | 60950-1 61000-3-2 61000-3-3 62368-1 | 0.5 % | ||
CUI Inc. | 1 | 5 V | 15 W | 4-DIP Module | Through Hole | 2.8 A | 70 °C | -25 °C | 0.91 " | 45 mm | 62 mm | 1.77 in | 23.1 mm | 2.44 in | Universal Input | 81.37 % | ±1% | CB Scheme EN FCC IEC UL | ITE (Commercial) | Enclosed | 60950-1 61000-3-2 61000-3-3 62368-1 | 0.5 % | ||
CUI Inc. | 1 | 24 V | 15 W | 4-DIP Module | Through Hole | 625 mA | 70 °C | -25 °C | 0.91 " | 45 mm | 62 mm | 1.77 in | 23.1 mm | 2.44 in | Universal Input | 84.5 % | ±1% | CB Scheme EN FCC IEC UL | ITE (Commercial) | Enclosed | 60950-1 61000-3-2 61000-3-3 62368-1 | 0.5 % | 85 VAC 120 VDC | 264 VAC 370 VDC |
CUI Inc. | 1 | 12 V | 15 W | 4-DIP Module | Through Hole | 1.25 A | 70 °C | -25 °C | 0.91 " | 45 mm | 62 mm | 1.77 in | 23.1 mm | 2.44 in | Universal Input | 84.5 % | ±1% | CB Scheme EN FCC IEC UL | ITE (Commercial) | Enclosed | 60950-1 61000-3-2 61000-3-3 62368-1 | 0.5 % | 85 VAC 120 VDC | 264 VAC 370 VDC |
CUI Inc. | 1 | 15 V | 15 W | 4-DIP Module | Through Hole | 1 A | 70 °C | -25 °C | 0.91 " | 45 mm | 62 mm | 1.77 in | 23.1 mm | 2.44 in | Universal Input | 84.5 % | ±1% | CB Scheme EN FCC IEC UL | ITE (Commercial) | Enclosed | 60950-1 61000-3-2 61000-3-3 62368-1 | 0.5 % |
