HHD 8540 Series
Manufacturer: Phoenix Contact
Beta
⌘K
CHEMICALS ACRYLIC ADHESIVE, 490ML TWIN (DUAL) CARTRIDGE, LOCTITE HHD 8540 SERIES
| Part | Insulation Height | Insulation Height | Contact Tail Length | Contact Tail Length | Housing Material | Material Flammability Rating | Type | Termination Style | Number of Levels | Current - IEC | Mounting Type | Color | Voltage - IEC | Positions Per Level | Features | Pitch | Pitch | Contact Mating Finish | Header Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

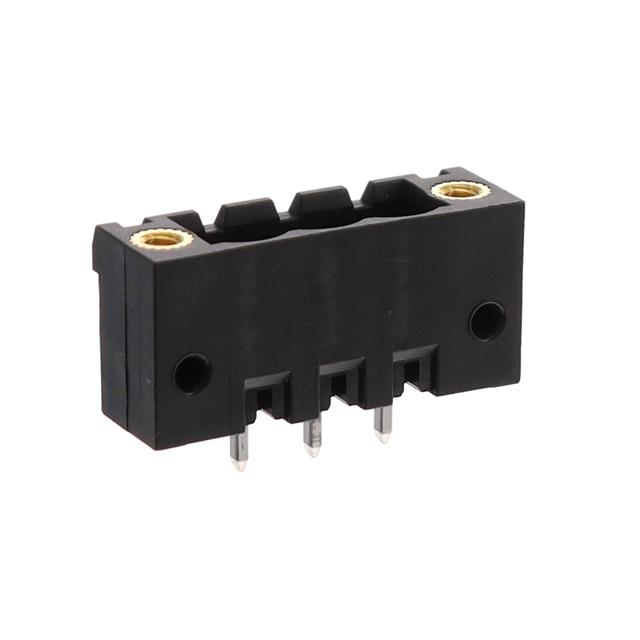

 Phoenix Contact | 0.472 " | 12 mm | 3.9 mm | 0.154 in | Polybutylene Terephthalate (PBT) | UL94 V-0 | Header Male Pins Shrouded (4 Side) | Solder | 1 | 12 A | Through Hole | Black | 400 V | 3 | Mating and Mounting Flange | 5.08 mm | 0.2 in | Tin | Vertical |
