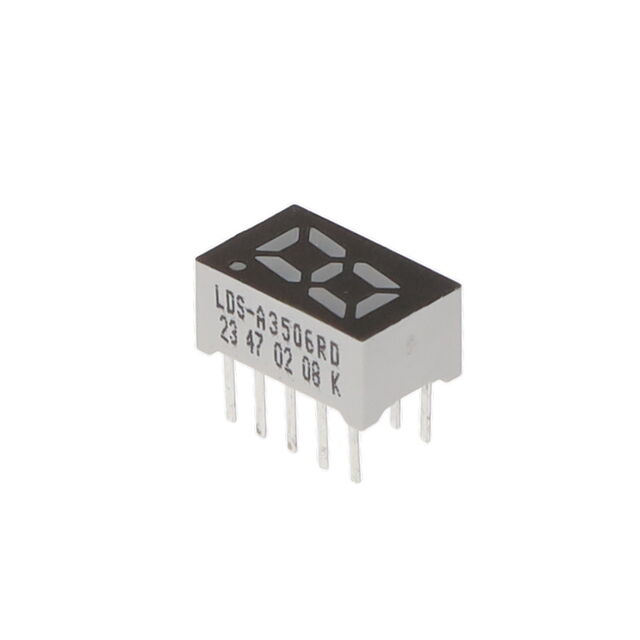

LDS-A3506 Series
Manufacturer: Lumex Opto/Components Inc.
Beta
⌘K
DISPLAY 7SEG 0.32" SGL RED 10DIP
| Part | Digit/Alpha Size | Digit/Alpha Size | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Wavelength - Peak | Millicandela Rating | Common Pin | Color | Number of Characters | Power Dissipation (Max) [Max] | Package / Case | Package / Case | Package / Case | Current - Test | Display Type | Voltage - Forward (Vf) (Typ) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Lumex Opto/Components Inc. | 0.32 in | 8 mm | 5 mm | 0.276 in | 11 mm | 7 mm | 0.433 in | 0.197 " | 643 nm | 13 mcd | Common Anode | Red | 1 | 105 mW | 5.3 mm | 10-DIP | 0.209 in | 10 mA | 7-Segment | 2 V |
