7381-4SG Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K

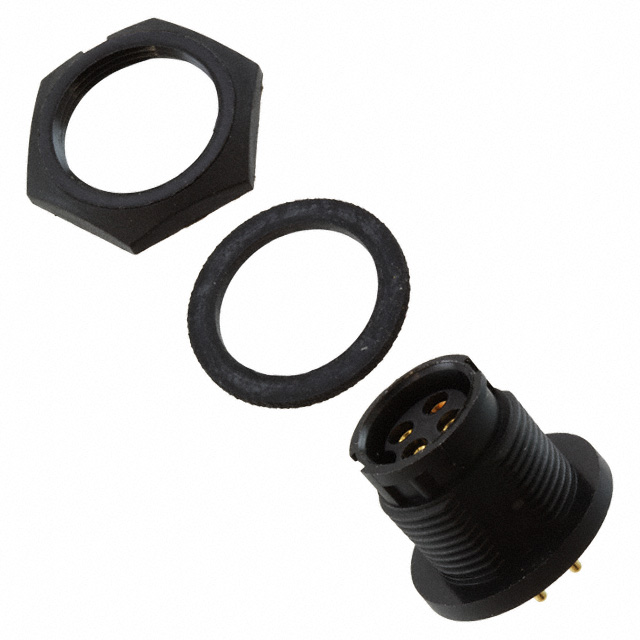

CIRCULAR CONNECTOR, MINI-CON-X SERIES, PANEL MOUNT RECEPTACLE, 4 CONTACTS, SOLDER SOCKET, BAYONET
| Part | Contact Material | Applications | Backshell Material, Plating | Mounting Feature | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish - Mating | Mounting Type | Ingress Protection | Voltage Rating | Color | Fastening Type | Shielding | Connector Type | Current Rating (Amps) | Number of Positions | Primary Material | Orientation | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SWITCHCRAFT/CONXALL | Brass | Automotive Communication Systems Instrumentation | Nylon Polyamide (PA) | Bulkhead - Front Side Nut | 115 °C | -40 C | Gold | Panel Mount Through Hole | Weathertight | 600 V | Black | Bayonet Lock | Unshielded | Receptacle Female Sockets | Varies by Wire Gauge | 4 | Plastic | Keyed | Solder |
SWITCHCRAFT/CONXALL | Brass | Automotive Communication Systems Instrumentation | Nylon Polyamide (PA) | Bulkhead - Front Side Nut | 115 °C | -40 C | Gold | Panel Mount Through Hole | Weathertight | 600 V | Black | Bayonet Lock | Unshielded | Receptacle Female Sockets | Varies by Wire Gauge | 4 | Plastic | Keyed | Solder |
