TS04-66 Series

Manufacturer: Same Sky (Formerly CUI Devices)

Catalog

MICROSWITCH TACT; SPST-NO; POS: 2; 0.05A/12VDC; SMT; NONE; 1N; 6X6MM

Part	Actuator Material	Switch Travel	Mechanical Life	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Operating Force	Actuator Orientation	Switch Function	Mounting Type	Contact Rating @ Voltage	Actuator Type	Illumination	Actuator Height off PCB, Vertical	Outline [x]	Outline [y]	Termination Style	Actuator Height off PCB, Vertical [z]
Same Sky (Formerly CUI Devices) TS04-66-65-BK-100-SMT-TR	Nylon 6/6 Polyamide (PA66)	0.25 mm	100000 Cycles	SPST-NO	80 °C	-30 ░C	100 gf	Top Actuated	Off-Mom	Surface Mount	0.05 A 12 VDC	Standard	Non-Illuminated	6.5 mm	6 mm	6 mm	Gull Wing
Same Sky (Formerly CUI Devices) TS04-66-75-BK-160-SMT	Nylon 6/6 Polyamide (PA66)	0.25 mm	80000 Cycles	SPST-NO	80 °C	-30 ░C	160 gf	Top Actuated	Off-Mom	Surface Mount	0.05 A 12 VDC	Standard	Non-Illuminated	7.5 mm	6 mm	6 mm	Gull Wing
Same Sky (Formerly CUI Devices) TS04-66-55-BK-260-SMT				SPST-NO	80 °C	-30 ░C	260 gf	Top Actuated	Off-Mom	Surface Mount	0.05 A 12 VDC	Standard	Non-Illuminated		6 mm	6 mm	Gull Wing	5.5 mm
Same Sky (Formerly CUI Devices) TS04-66-55-BK-100-SMT	Nylon 6/6 Polyamide (PA66)	0.25 mm	100000 Cycles	SPST-NO	80 °C	-30 ░C	100 gf	Top Actuated	Off-Mom	Surface Mount	0.05 A 12 VDC	Standard	Non-Illuminated		6 mm	6 mm	Gull Wing	5.5 mm
Same Sky (Formerly CUI Devices) TS04-66-95-BK-160-SMT				SPST-NO	80 °C	-30 ░C	160 gf	Top Actuated	Off-Mom	Surface Mount	0.05 A 12 VDC	Standard	Non-Illuminated		6 mm	6 mm	Gull Wing	9.5 mm
Same Sky (Formerly CUI Devices) TS04-66-75-BK-100-SMT	Nylon 6/6 Polyamide (PA66)	0.25 mm	100000 Cycles	SPST-NO	80 °C	-30 ░C	100 gf	Top Actuated	Off-Mom	Surface Mount	0.05 A 12 VDC	Standard	Non-Illuminated	7.5 mm	6 mm	6 mm	Gull Wing

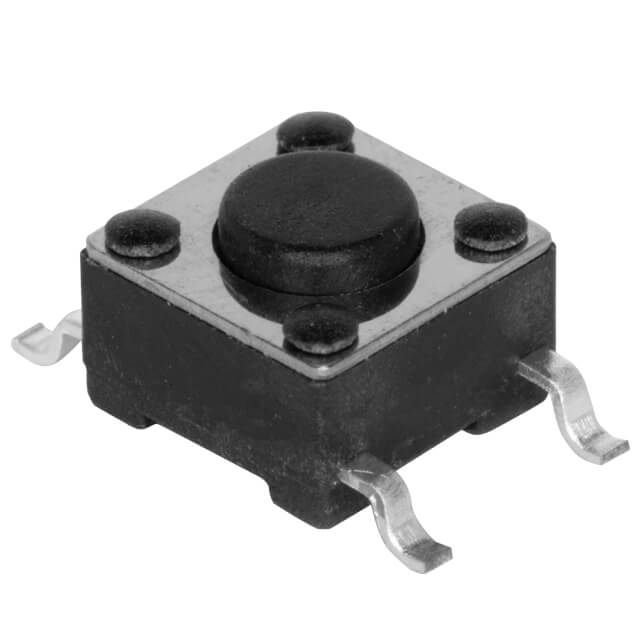

Same Sky (Formerly CUI Devices) TS04-66-43-BK-100-SMT	Nylon 6/6 Polyamide (PA66)	0.25 mm	100000 Cycles	SPST-NO	80 °C	-30 ░C	100 gf	Top Actuated	Off-Mom	Surface Mount	0.05 A 12 VDC	Standard	Non-Illuminated		6 mm	6 mm	Gull Wing	4.3 mm
Same Sky (Formerly CUI Devices) TS04-66-70-BK-100-SMT				SPST-NO	80 °C	-30 ░C	100 gf	Top Actuated	Off-Mom	Surface Mount	0.05 A 12 VDC	Standard	Non-Illuminated		6 mm	6 mm	Gull Wing	7 mm
Same Sky (Formerly CUI Devices) TS04-66-65-BK-100-SMT				SPST-NO	80 °C	-30 ░C	100 gf	Top Actuated	Off-Mom	Surface Mount	0.05 A 12 VDC	Standard	Non-Illuminated	6.5 mm	6 mm	6 mm	Gull Wing
Same Sky (Formerly CUI Devices) TS04-66-50-BK-260-SMT	Nylon 6/6 Polyamide (PA66)	0.25 mm	60000 Cycles	SPST-NO	80 °C	-30 ░C	260 gf	Top Actuated	Off-Mom	Surface Mount	0.05 A 12 VDC	Standard	Non-Illuminated		6 mm	6 mm	Gull Wing	5 mm
