XB6 Series

Catalog

INDUSTRIAL PANEL MOUNT INDICATORS / SWITCH INDICATORS PILOT LIGHT 240VAC 1.5AMP XB6

Part	Panel Cutout Dimensions	Panel Cutout Dimensions	Current	Voltage [Min]	Voltage [Max]	Ratings	Termination Style	Type	Lens Size [x]	Lens Size [y]	Ingress Protection	Lens Color	Panel Cutout Shape	Lens Style	Mounting Type	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Switch Function	Voltage Rating - AC	Color - Actuator/Cap	Actuator Type	Circuit	Panel Cutout Dimensions [diameter]	Electrical Life	Illumination Voltage (Nominal)	Illumination Type, Color	Lens Size [diameter]	Mechanical Life

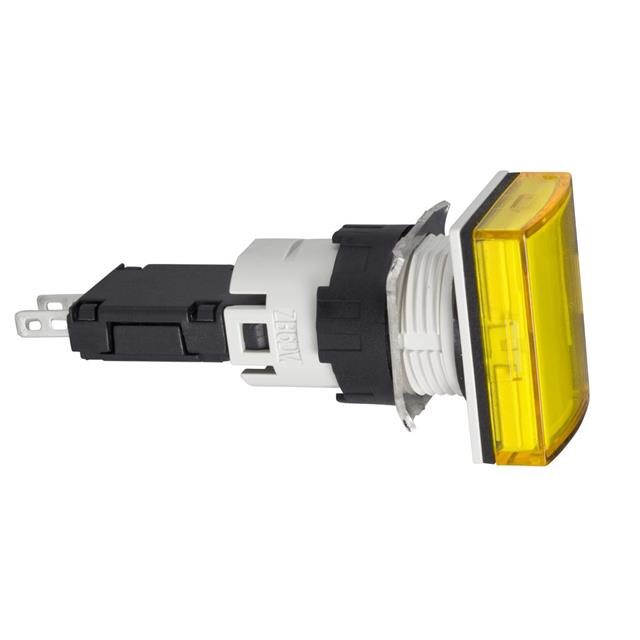

SCHNEIDER ELECTRIC XB6DV5BB	16 mm	0.63 in	15 mA	12 V	24 V	AC/DC	Quick Connect - 0.110" (2.8mm)	LED	24 mm	18 mm	13 4 IP65 NEMA 4X	Yellow	Round	Rectangle with Convex Top
SCHNEIDER ELECTRIC XB6DA45B							Quick Connect - 0.110" (2.8mm)	Standard			IP65 - Dust Tight Water Resistant				Panel Mount Front	125 VDC	-25 °C	70 °C	3 A 220 mA	Off-On On-Off	120 V	Red	Button Flush Rectangular	DPST-NO/NC	16 mm
SCHNEIDER ELECTRIC XB6CF4B5B							Quick Connect - 0.110" (2.8mm)	Illuminated Standard			IP65 - Dust Tight Water Resistant				Panel Mount Front	125 VDC	-25 °C	70 °C	3 A 220 mA	Off-On On-Off	120 V	Red	Button Square	DPST-NO/NC	16 mm	1000000 Cycles	12 VDC	LED Red
SCHNEIDER ELECTRIC XB6AV3BB	16 mm	0.63 in	15 mA	12 V	24 V	AC/DC	Quick Connect - 0.110" (2.8mm)	LED			13 4 IP65 NEMA 4X	Green	Round	Round with Convex Top															18 mm
SCHNEIDER ELECTRIC XB6CV1BB	16 mm	0.63 in	15 mA	12 V	24 V	AC/DC	Quick Connect - 0.110" (2.8mm)	LED	18 mm	18 mm	13 4 IP65 NEMA 4X	White	Round	Square with Flat Top
SCHNEIDER ELECTRIC XB6EDW1B1P							Quick Connect - 0.110" (2.8mm)	Illuminated Standard			IP65 - Dust Tight Water Resistant				Panel Mount Front	24 V	-10 °C	55 °C	1 A 1.5 A	On-On	120 V	White	Button Flush Rectangular	SPDT	16 mm	100000 Cycles	24 V	LED White		1000000 Cycles
SCHNEIDER ELECTRIC XB6DF3B5B							Quick Connect - 0.110" (2.8mm)	Illuminated Standard			IP65 - Dust Tight Water Resistant				Panel Mount Front	125 VDC	-25 °C	70 °C	3 A 220 mA	Off-On On-Off	120 V	Green	Button Flush Rectangular	DPST-NO/NC	16 mm	1000000 Cycles	12 VDC	Green LED
SCHNEIDER ELECTRIC XB6ECF4B2P							Quick Connect - 0.110" (2.8mm)	Illuminated Standard			IP65 - Dust Tight Water Resistant				Panel Mount Front		-10 °C	55 °C		Off-On		Red	Button Square	DPST-NC	16 mm	50000 Cycles	24 V	LED Red		250000 Cycles

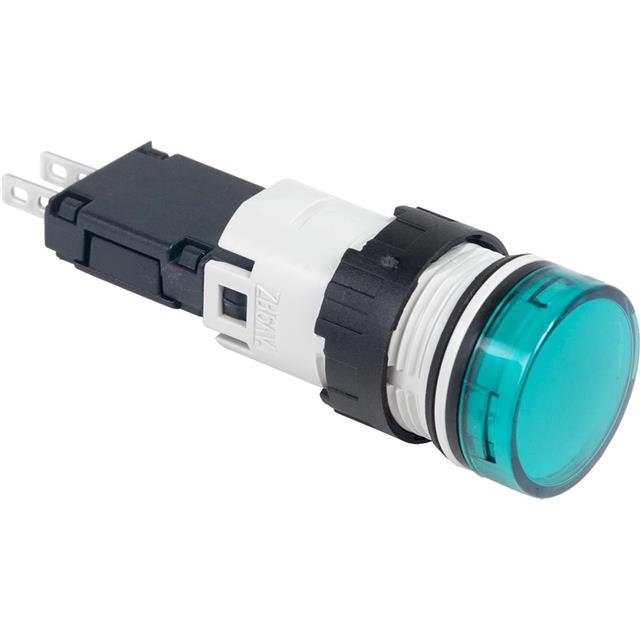

SCHNEIDER ELECTRIC XB6AV3GB	16 mm	0.63 in	15 mA	48 V	120 V	AC	Quick Connect - 0.110" (2.8mm)	LED			13 4 IP65 NEMA 4X	Green	Round	Round with Convex Top															18 mm
SCHNEIDER ELECTRIC XB6CA25B							Quick Connect - 0.110" (2.8mm)	Standard			IP65 - Dust Tight Water Resistant				Panel Mount Front	125 VDC	-25 °C	70 °C	3 A 220 mA	Off-On On-Off	120 V	Black	Button Square	DPST-NO/NC	16 mm	1000000 Cycles				2000000 Cycles
