Schaffner FN530 Series

Catalog

POWER LINE FILTERS 4A HI CURRENT TERM OUTPUT FLT-FRQ INVRT

Part	Current	Termination Style	Voltage - Rated AC (Phase to Ground/Neutral)	Operating Temperature [Max]	Operating Temperature [Min]	Configuration	Mounting Type	Applications	Filter Type	Voltage - Rated AC (Phase to Phase)

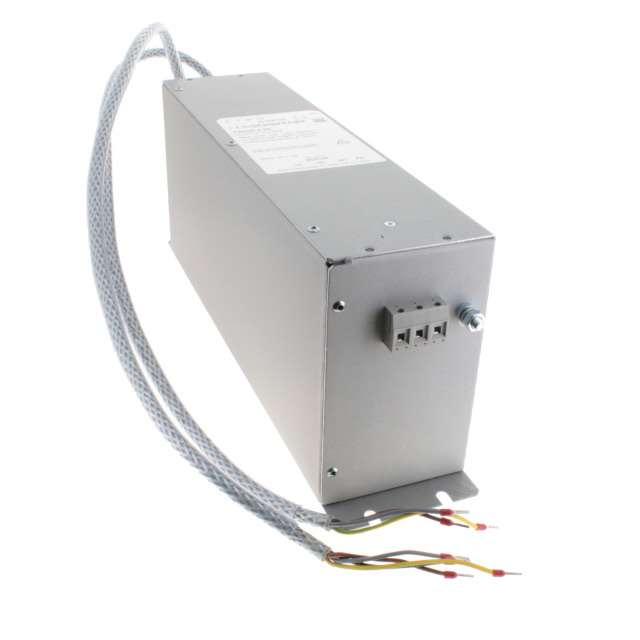

TE Connectivity AMP Connectors FN530-4-99	4 A	Terminal Block Wire Leads	288 V	100 °C	-25 °C	Three Stage	Chassis Mount	General Purpose	Three Phase (Delta)	500 V
TE Connectivity AMP Connectors FN530-16-99	16 A	Terminal Block Wire Leads	288 V	100 °C	-25 °C	Three Stage	Chassis Mount	General Purpose	Three Phase (Delta)	500 V
TE Connectivity AMP Connectors FN530-8-99	8 A	Terminal Block Wire Leads	288 V	100 °C	-25 °C	Three Stage	Chassis Mount	General Purpose	Three Phase (Delta)	500 V
TE Connectivity AMP Connectors FN530-12-99	12 A	Terminal Block Wire Leads	288 V	100 °C	-25 °C	Three Stage	Chassis Mount	General Purpose	Three Phase (Delta)	500 V
TE Connectivity AMP Connectors FN530-4-99	4 A	Terminal Block Wire Leads	288 V	100 °C	-25 °C	Three Stage	Chassis Mount	General Purpose	Three Phase (Delta)	500 V
TE Connectivity AMP Connectors FN530-12-99	12 A	Terminal Block Wire Leads	288 V	100 °C	-25 °C	Three Stage	Chassis Mount	General Purpose	Three Phase (Delta)	500 V
TE Connectivity AMP Connectors FN530-16-99	16 A	Terminal Block Wire Leads	288 V	100 °C	-25 °C	Three Stage	Chassis Mount	General Purpose	Three Phase (Delta)	500 V
