VE13 Series

Catalog

VARISTOR 430V 2.5KA DISC 13MM

Part	Varistor Voltage (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Circuits	Current - Surge	Maximum AC Volts [Max]	Maximum DC Volts [Max]	Energy	Varistor Voltage (Max)	Capacitance @ Frequency	Mounting Type	Package / Case	Varistor Voltage (Typ)	Maximum DC Volts	Varistor Voltage (Max) [Max]
KYOCERA AVX VE13M02750KED	387 V	125 °C	-40 °C	1	2.5 kA	275 V	350 V	20 J	473 V	210 pF	Through Hole	Disc 13mm	430 V
KYOCERA AVX VE13M00300K--	42 V	125 °C	-40 °C	1	500 A	30 V		4 J		1 kHz 2150 pF	Through Hole	Disc 13mm	47 V	38 V	52 V
KYOCERA AVX VE13M00141K	198 V	125 °C	-40 °C	1	2.5 kA	140 V	180 V	12.5 J	242 V	1 kHz 425 pF	Through Hole	Disc 13mm	220 V
KYOCERA AVX VE13P05750K--	819 V	125 °C	-40 °C	1	3.5 kA	575 V	730 V	125 J		80 pF	Through Hole	Disc 13mm	910 V		1.001 kV

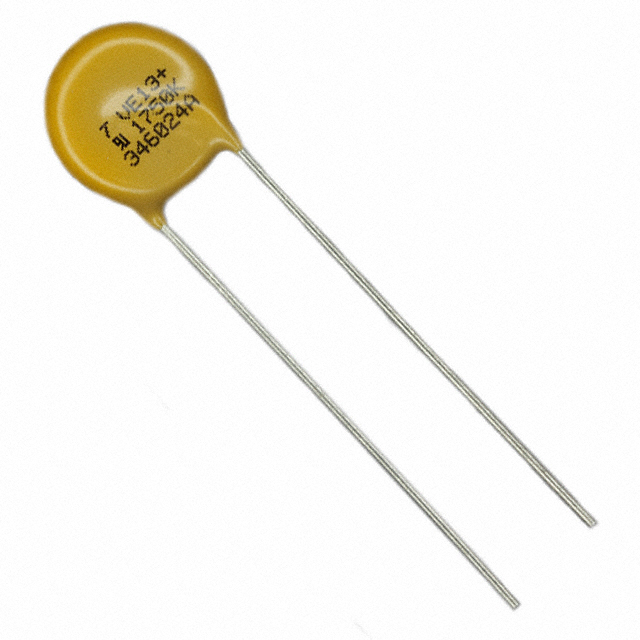

KYOCERA AVX VE13P01750K	243 V	125 °C	-40 °C	1	3.5 kA	175 V	225 V	50 J		1 kHz 340 pF	Through Hole	Disc 13mm	270 V		297 V
KYOCERA AVX VE13M00251KED	351 V	125 °C	-40 °C	1	2.5 kA	250 V	320 V	19 J		1 kHz 230 pF	Through Hole	Disc 13mm	390 V		429 V
KYOCERA AVX VE13M00400K--	61 V	125 °C	-40 °C	1	500 A	40 V	56 V	5.9 J	75 V	1700 pF	Through Hole	Disc 13mm	68 V
KYOCERA AVX VE13M00600K--	90 V	125 °C	-40 °C	1	2.5 kA	60 V	80 V	7 J		1 kHz 870 pF	Through Hole	Disc 13mm	100 V		110 V
KYOCERA AVX VE13M01150K	162 V	125 °C	-40 °C	1	2.5 kA	115 V	150 V	10.6 J		1 kHz 500 pF	Through Hole	Disc 13mm	180 V		198 V
KYOCERA AVX VE13P02750K	387 V	125 °C	-40 °C	1	3.5 kA	275 V	350 V	80 J	473 V	210 pF	Through Hole	Disc 13mm	430 V
