OVQ12S30 Series

Catalog

EOL - SIGNAGE AND CHANNEL LETTERING

Part	Lens Type	Color	Temperature - Test	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [custom]	Luminous Flux @ Current/Temperature	Height [z]	Viewing Angle	Current - Max [Max]	Configuration	Type	CCT (K)	Current - Test	Wavelength
TT Electronics/BI OVQ12S30W7	Flat	Cool White	25 °C	8 mm	500 mm	50.04 mm	68 lm	2.29 mm	120 °	133 mA	Linear Light Strip Flexible	LED Engine	5500 K	133 mA
TT Electronics/BI OVQ12S30Y7	Flat	Yellow		8 mm	500 mm	50.04 mm		2.29 mm	120 °	158 mA	Linear Light Strip Flexible	LED Engine		158 mA	590 nm
TT Electronics/BI OVQ12S30R7	Flat	Red		8 mm	500 mm	50.04 mm		2.29 mm	120 °	158 mA	Linear Light Strip Flexible	LED Engine		158 mA	625 nm
TT Electronics/BI OVQ12S30B7	Flat	Blue		8 mm	500 mm	50.04 mm		2.29 mm	120 °	133 mA	Linear Light Strip Flexible	LED Engine		133 mA	470 nm

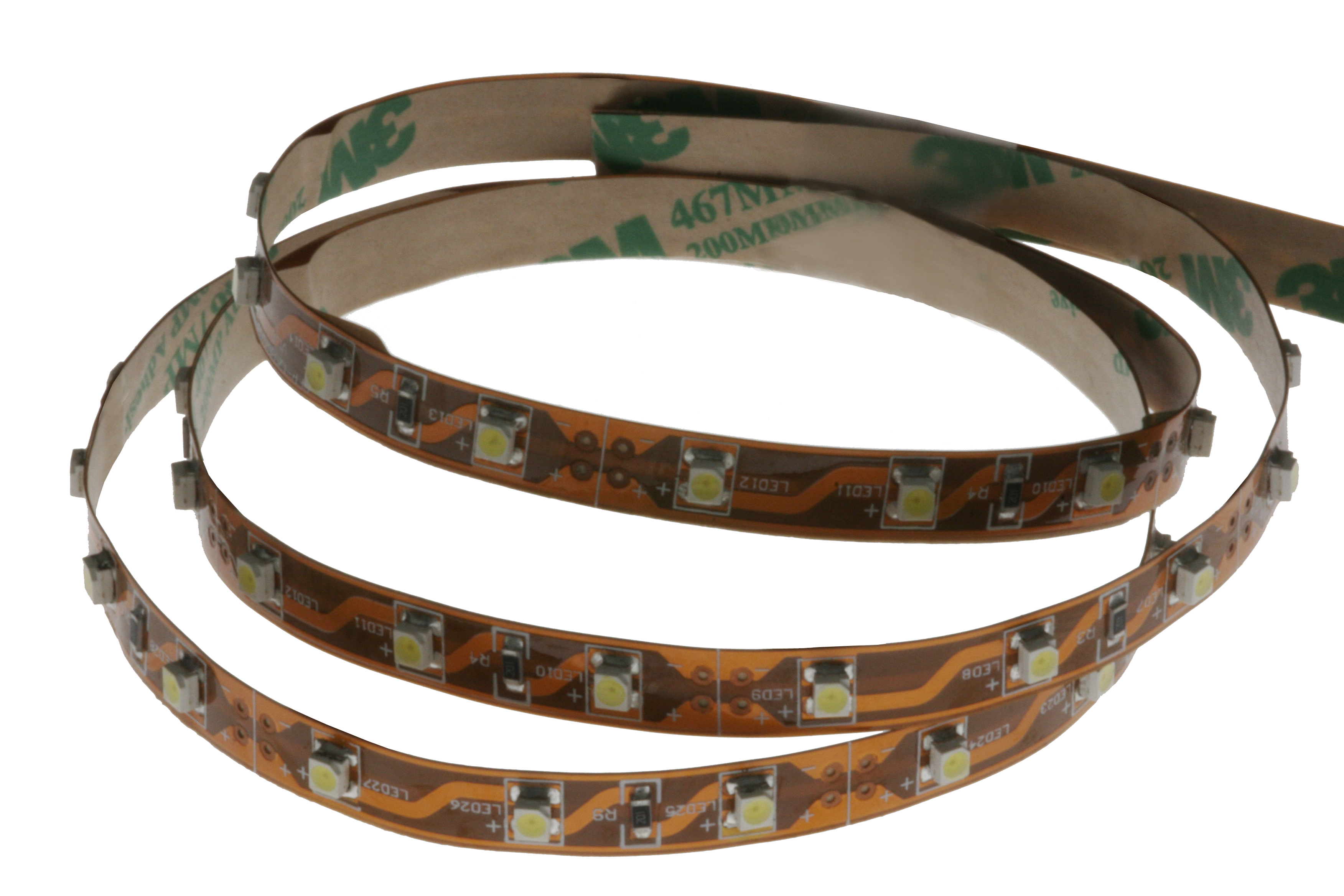

TT Electronics/BI OVQ12S30G7	Flat	Green		8 mm	500 mm	50.04 mm		2.29 mm	120 °	133 mA	Linear Light Strip Flexible	LED Engine		133 mA	525 nm
