D4G0311 Series
Manufacturer: Electroswitch
Beta
⌘K

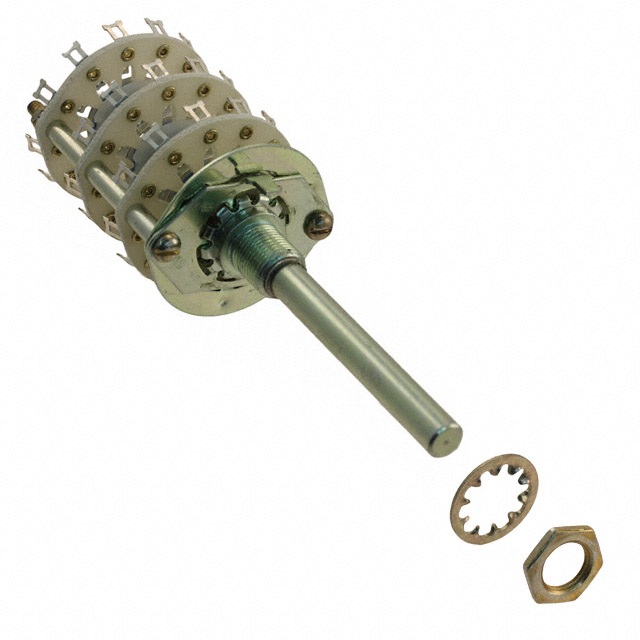

SWITCH ROTARY 2-11POS 500MA 115V
| Part | Panel Cutout Dimensions [diameter] | Termination Style | Number of Decks | Actuator Length [x] | Contact Timing | Current Rating (Amps) | Contact Finish | Number of Poles per Deck | Depth Behind Panel [z] | Mounting Type | Angle of Throw | Number of Positions [Max] | Number of Positions [Min] | Circuit per Deck | Voltage Rating - DC | Contact Material | Voltage Rating - AC | Actuator Type | Actuator Type [diameter] | Index Stops |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Electroswitch | 9.78 mm | Solder Lug | 3 | 47.63 mm | Shorting (MBB) | 1.5 A 500 mA | Silver | 1 | 42.82 mm | Panel Mount | 30 ° | 11 | 2 | SP11T | 28 V | Brass | 115 V | Round | 0.25 in | Adjustable |
 Electroswitch | 9.78 mm | Solder Lug | 3 | 47.63 mm | Non-Shorting (BBM) | 1.5 A 500 mA | Silver | 1 | 42.82 mm | Panel Mount | 30 ° | 11 | 2 | SP11T | 28 V | Brass | 115 V | Round | 0.25 in | Adjustable |
