HDP-QB Series

Manufacturer: HDP Power

Catalog

AC/DC WALL MOUNT ADAPTER 5V 5W

Part	Input Type	Input Connector	Efficiency	Applications	Current - Output (Max) [Max]	Voltage - Output	Output Connector	Form	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input [Max]	Voltage - Input [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Region Utilized	Power (Watts)	Approval Agency

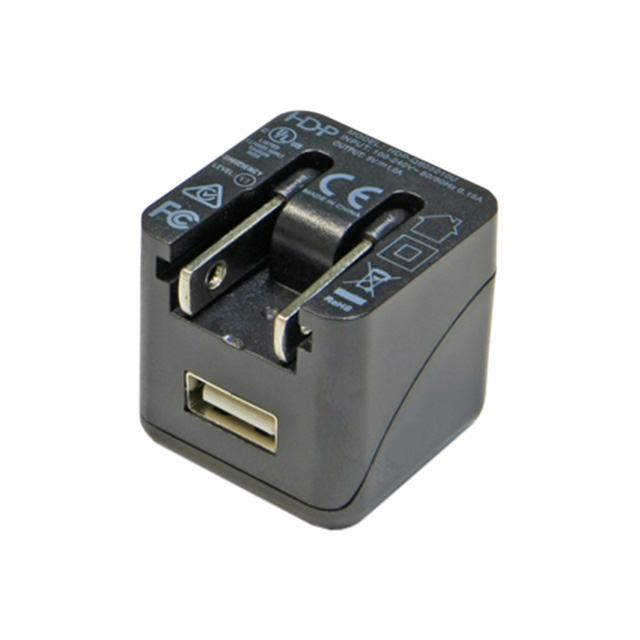

HDP Power HDP-QB-BUSB-B	Multi-Blade (Included) Multi-Blade (Sold Separately)	Multi-Blade Multi-Blade (Sold Separately)	Level VI	ITE (Commercial)	1 A	5 V	USB A Receptacle	Wall Mount	40 °C	0 °C	264 VAC	90 VAC	32 mm	32 mm	1.26 in	1.26 in	1.26 "	32 mm	International	5 W	CB CE cULus FCC KC PSE RCM SAA

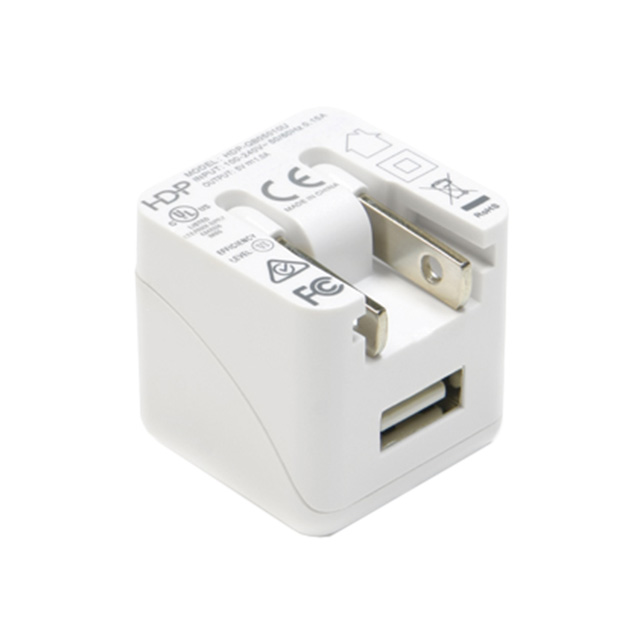

HDP Power HDP-QB-WUSB-B	Multi-Blade (Included) Multi-Blade (Sold Separately)	Multi-Blade Multi-Blade (Sold Separately)	Level VI	ITE (Commercial)	1 A	5 V	USB A Receptacle	Wall Mount	40 °C	0 °C	264 VAC	90 VAC	32 mm	32 mm	1.26 in	1.26 in	1.26 "	32 mm	International	5 W	CB CE cULus FCC KC PSE RCM SAA
