ANT-2.4 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
ANTENNA MINI R-ANGLE 2.4GHZ THM
| Part | Height (Max) [z] | Height (Max) [z] | Antenna Type | Applications | Frequency (Center/Band) | Frequency Range [Min] | Frequency Range [Max] | Number of Bands | Mounting Type | VSWR | Gain | Termination | RF Family/Standard | Ingress Protection | Features | Height (Max) [z] | Height (Max) [Max] [z] | Height (Max) [Max] [z] | Return Loss | Termination | Power - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

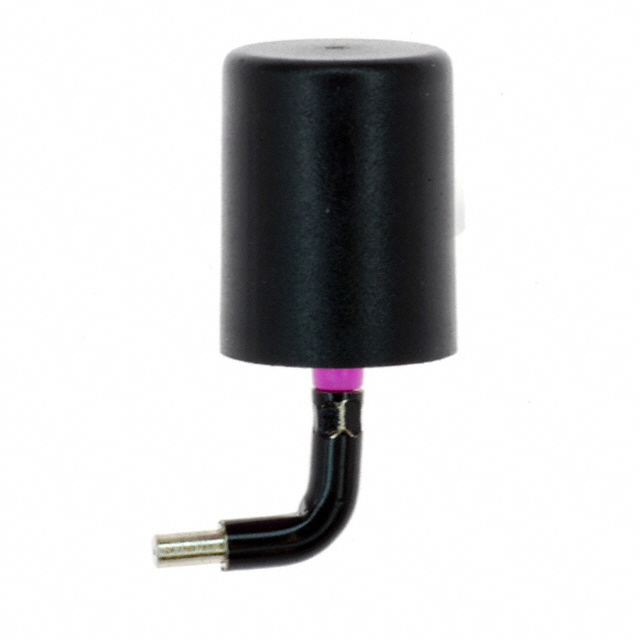

 TE Connectivity AMP Connectors | 0.571 in | 14.5 mm | Right Angle Whip | Bluetooth Thread Wi-Fi Zigbee™ | 2.4 GHz | 2.39 GHz | 2.48 GHz | 1 | Through Hole | 2 | 3.3 dBi | Solder | 802.15.4 Bluetooth WiFi | ||||||||

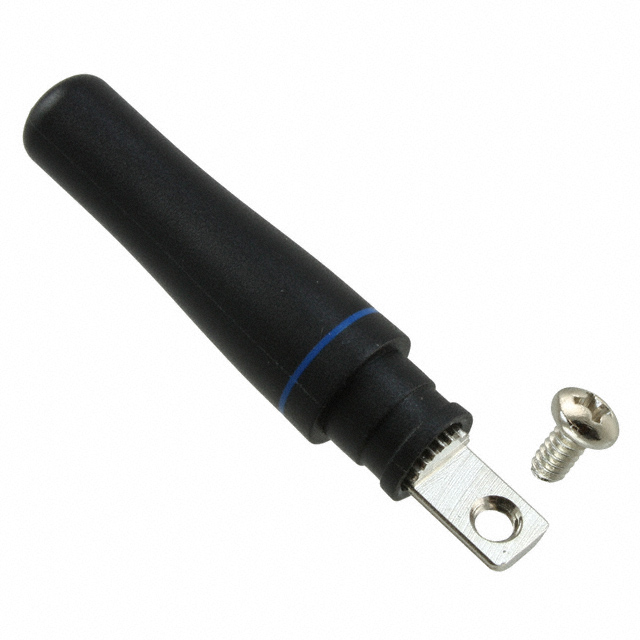

 TE Connectivity AMP Connectors | 1.988 in | 50.5 mm | Whip Straight | Bluetooth Thread Wi-Fi Zigbee™ | 2.4 GHz | 2.35 GHz | 2600 MHz | 1 | Panel Mount | 1.9 | -1.9 dBi | Screw-Mount | 802.15.4 Bluetooth WiFi | ||||||||

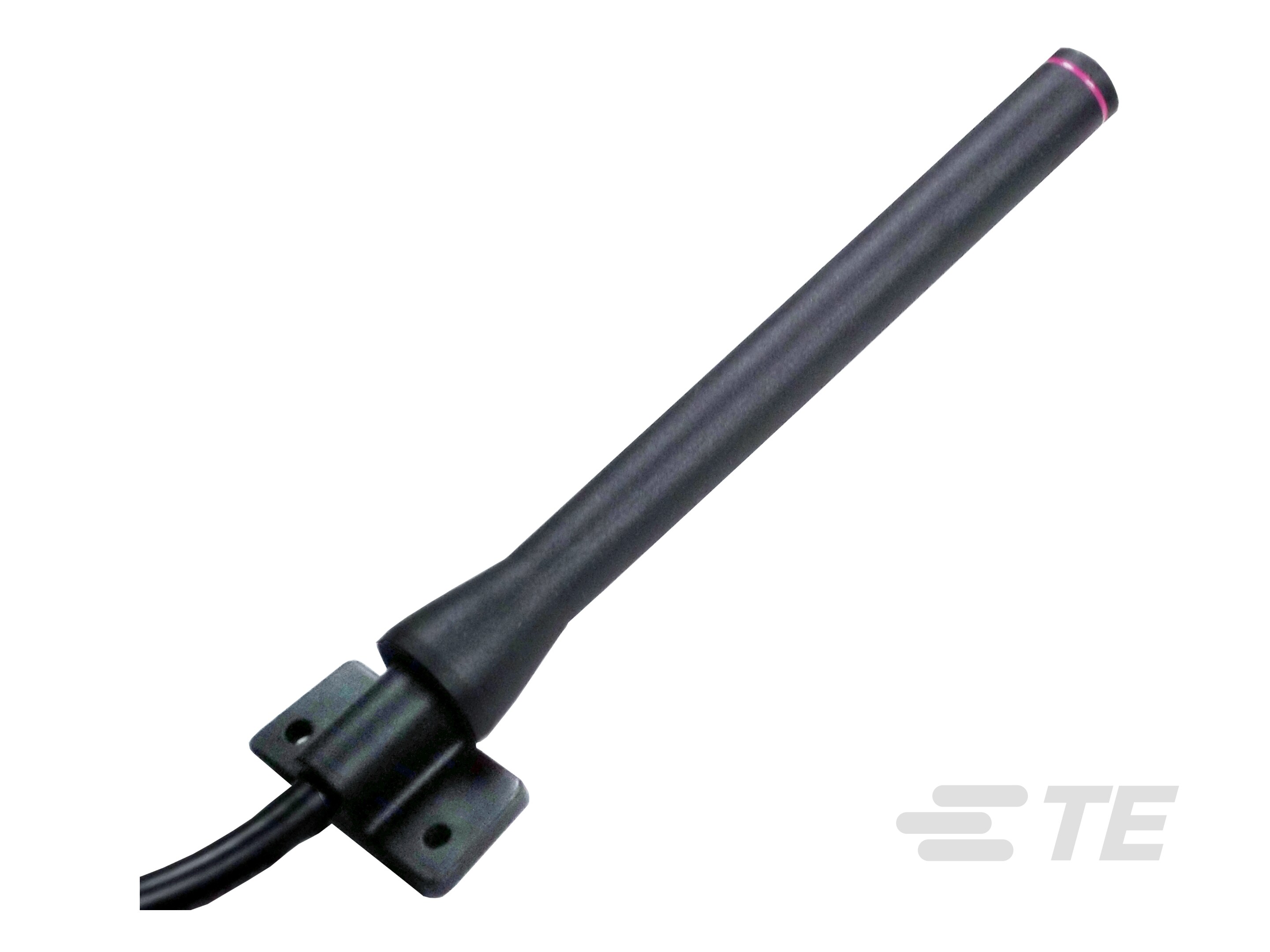

 TE Connectivity AMP Connectors | 4.11 in | Whip Straight | Bluetooth Thread Wi-Fi Zigbee™ | 2.4 GHz | 2.35 GHz | 2600 MHz | 1 | Bracket Mount | 1.9 | 3 dBi | RP-SMA Male | 802.15.4 Bluetooth WiFi | IP67 | Cable - 2m | 104.4 mm | ||||||

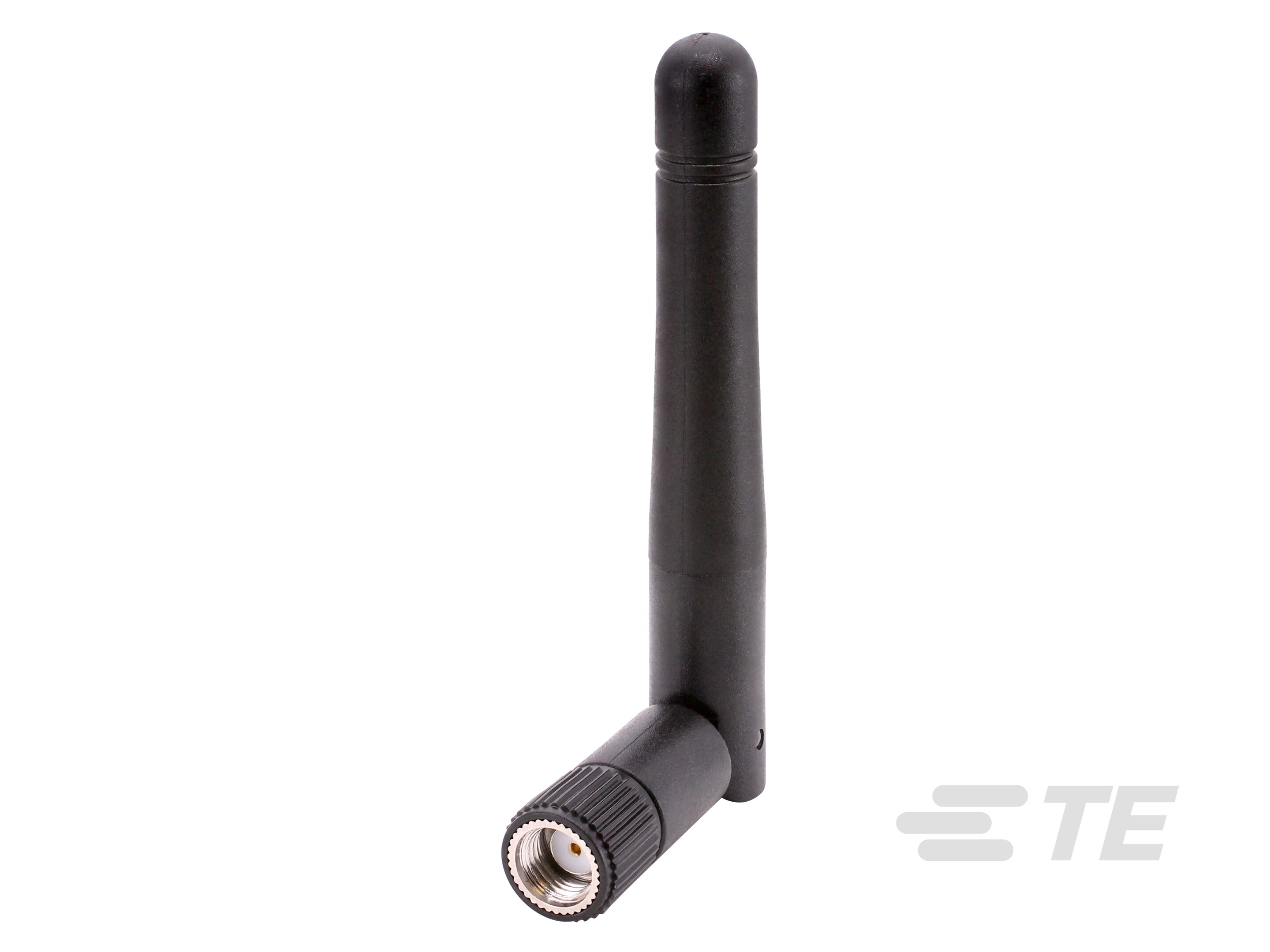

 TE Connectivity AMP Connectors | Tilt Whip | ISM U-NII WiFi WLAN | 2.4 GHz | 2.5 GHz | 1 | Connector Mount | 1.9 | 2.8 dBi | RP-SMA Male | 3.272 in | 83.1 mm | ||||||||||

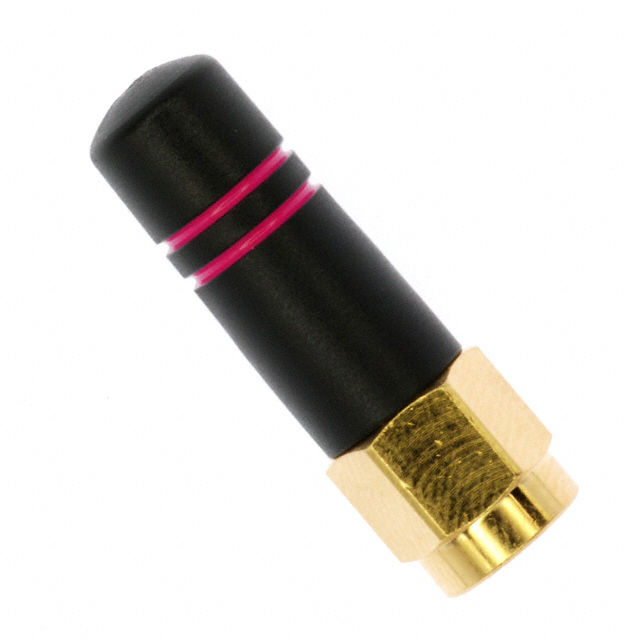

 TE Connectivity AMP Connectors | 1.063 in | 27 mm | Whip Straight | Bluetooth Thread Wi-Fi Zigbee™ | 2.4 GHz | 2.39 GHz | 2.49 GHz | 1 | Connector Mount | 2 | -1 dBi | 802.15.4 Bluetooth WiFi | |||||||||

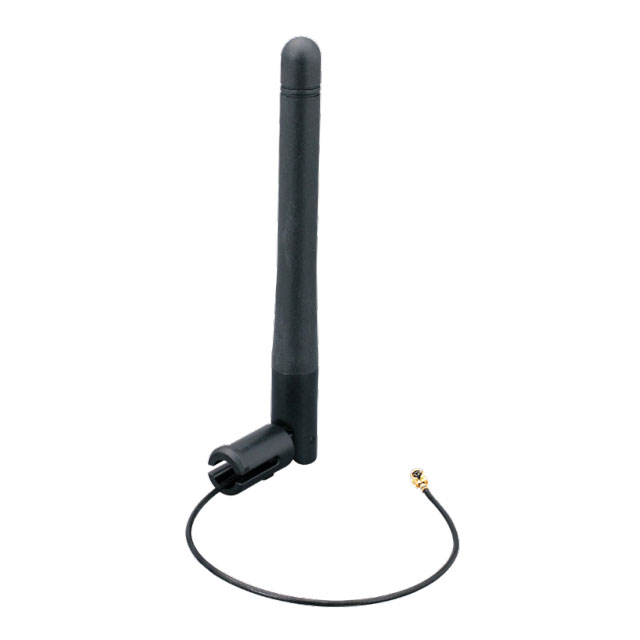

 TE Connectivity AMP Connectors | 3.693 in | 93.79 mm | Tilt Whip | Bluetooth ISM Wi-Fi WLAN Zigbee™ | 2.4 GHz | 2.4 GHz | 2.4835 GHz | 1 | Panel Mount | 1.5 | 2.8 dBi | I-PEX MHF1 | Bluetooth WiFi | Cable - 125mm | -14.6 dB | U.FL | 10 W | ||||
 TE Connectivity AMP Connectors | Whip Straight | Bluetooth Thread Wi-Fi Zigbee™ | 2.4 GHz | 2.39 GHz | 2.48 GHz | 1 | Through Hole | 2 | -1.5 dBi | Solder | 802.15.4 Bluetooth WiFi | ||||||||||

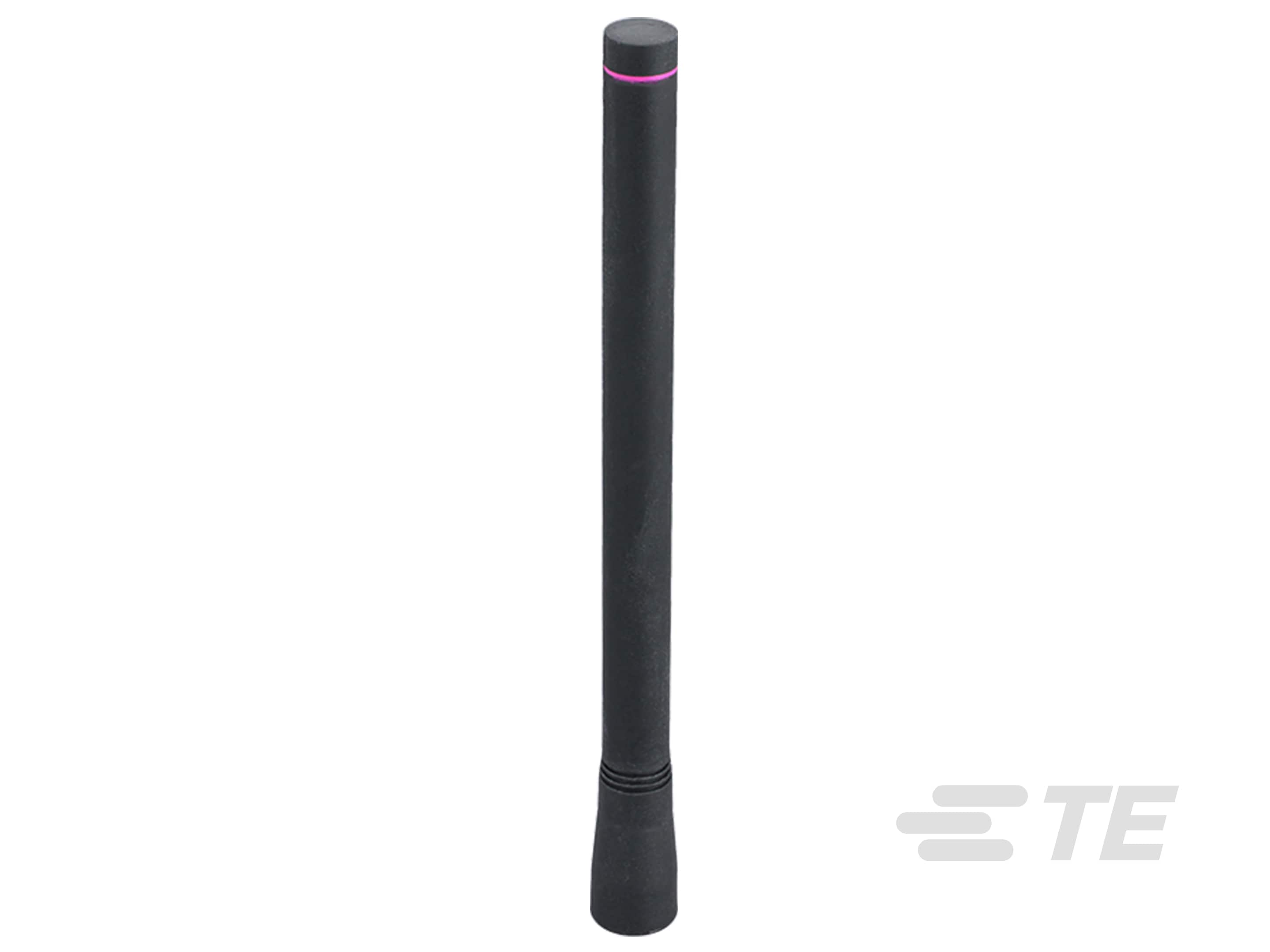

 TE Connectivity AMP Connectors | 4.724 in | 120 mm | Whip Straight | General Purpose | 2.475 GHz | 2.35 GHz | 2600 MHz | 1 | Connector Mount | 2 | RP-SMA RP-SMA Female | Bluetooth | |||||||||

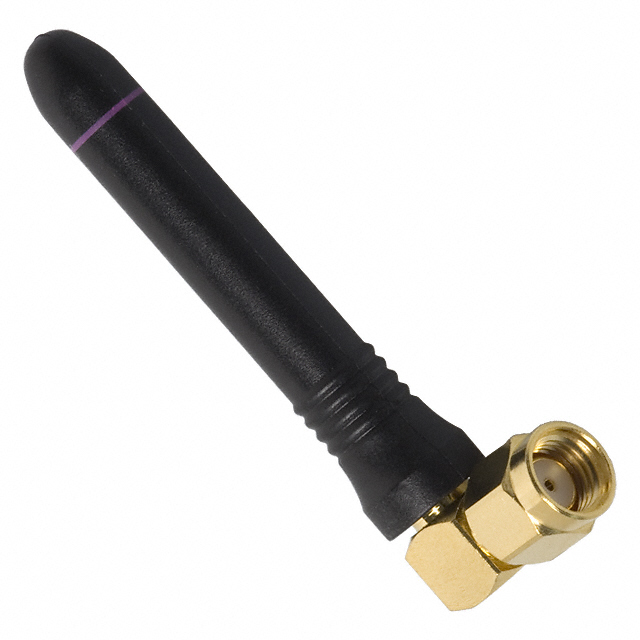

 TE Connectivity AMP Connectors | 2.106 in | Right Angle Whip | Bluetooth Thread Wi-Fi Zigbee™ | 2.4 GHz | 2.35 GHz | 2.5 GHz | 1 | Connector Mount | 1.9 | -1 dBi | RP-SMA Male | 802.15.4 Bluetooth WiFi | 53.5 mm | ||||||||
 TE Connectivity AMP Connectors | 7.618 in | 193.5 mm | Tilt Whip | Bluetooth Thread Wi-Fi Zigbee™ | 2.4 GHz | 2.39 GHz | 2.55 GHz | 1 | Connector Mount | 2 | 4 dBi | RP-SMA Male | 802.15.4 Bluetooth WiFi |
