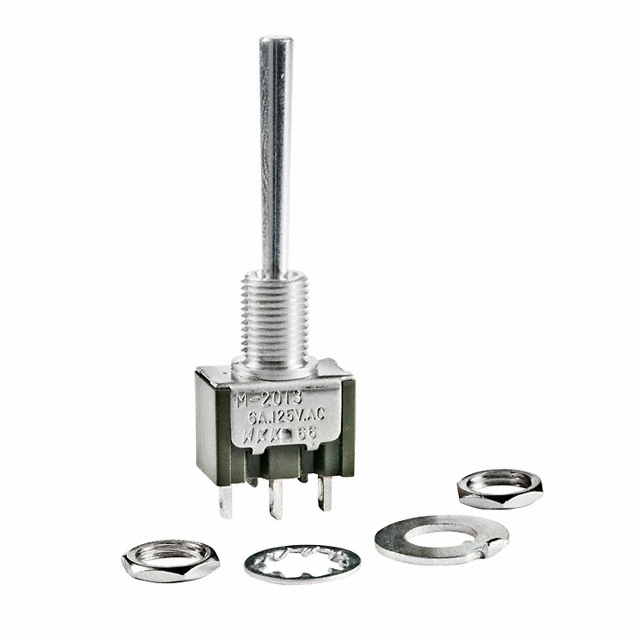

M2013Q4 Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH TOGGLE SPDT 6A 125V
| Part | Electrical Life | Actuator Material | Circuit | Voltage Rating - DC | Switch Function | Actuator Type | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Panel Cutout Dimensions [diameter] | Termination Style | Actuator Length [x] | Mounting Type | Features | Bushing Thread | Voltage Rating - AC | Illumination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 25000 Steps | Brass Chrome Plated | SPDT | 30 V | On-Off-On | Standard Round | 3 A 6 A | 85 °C | -30 ░C | 6.5 mm | Solder Lug | 21.3 mm | Panel Mount | Epoxy Sealed Terminals | 1/4-40 | 125 V | Non-Illuminated |
