BWCU Series

Catalog

COMMON MODE CHOKES / FILTERS 220 OHMS 320MA DCR=400MOHMS 2 LINE

Part	Filter Type	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Height (Max) [z]	Current Rating (Max) [Max]	Mounting Type	Impedance @ Frequency	DC Resistance (DCR) (Max) [Max]	Number of Lines	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Voltage Rating - DC	DC Resistance (DCR) (Max)	Height (Max) [z]

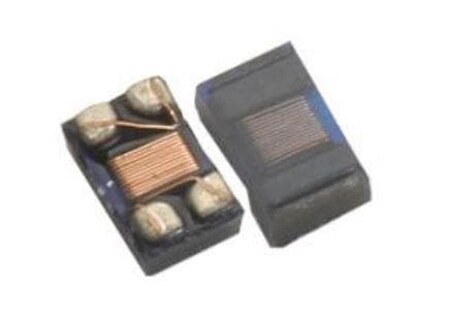

Pulse Electronics BWCU00321619221M02	Signal Line	Horizontal 4 PC Pad	-40 C	105 ░C	0.083 in 2.1 mm	320 mA	Surface Mount	220 Ohms	400 mOhm	2	0.063 "	0.126 "	3.2 mm	1.6 mm	50 VDC
Pulse Electronics BWCU00322518601M00	Signal Line	Horizontal 4 PC Pad	-40 C	105 ░C	0.079 in 2 mm	1 A	Surface Mount	600 Ohms		2	0.098 in	0.126 "	3.2 mm	2.5 mm	50 VDC	180 mOhm
Pulse Electronics BWCU00121008900Y03		Horizontal 4 PC Pad	-40 C	105 ░C	0.9 mm	250 mA	Surface Mount	90 Ohms	300 mOhm	2					50 VDC		0.035 in

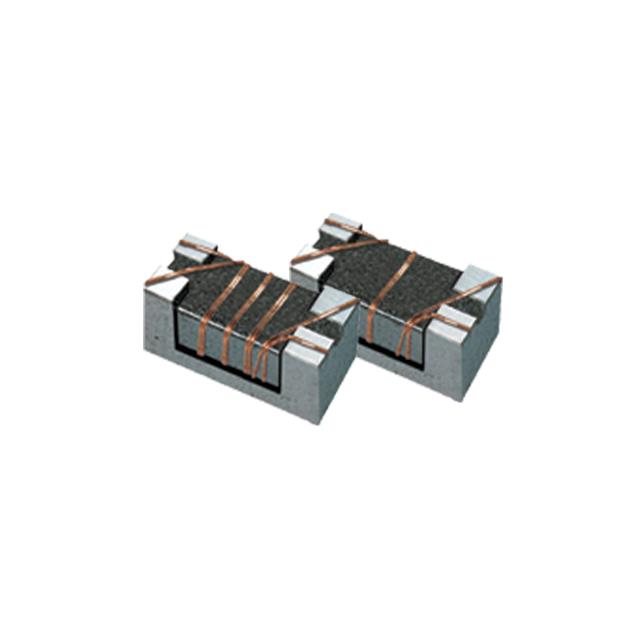

Pulse Electronics BWCU00121008121M02	Signal Line	Horizontal 4 PC Pad	-40 C	105 ░C	0.9 mm	200 mA	Surface Mount	120 Ohms	400 mOhm	2					50 VDC		0.035 in
Pulse Electronics BWCU00321619222M02	Signal Line	Horizontal 4 PC Pad	-40 C	105 ░C	0.083 in 2.1 mm	200 mA	Surface Mount	2200 Ohms	1.2 Ohm	2	0.063 "	0.126 "	3.2 mm	1.6 mm	50 VDC
Pulse Electronics BWCU00121008250T02	Signal Line	Horizontal 4 PC Pad	-40 C	105 ░C	0.9 mm	400 mA	Surface Mount	25 Ohms	300 mOhm	2					50 VDC		0.035 in
Pulse Electronics BWCU00121008600Y03	Signal Line	Horizontal 4 PC Pad	-40 C	105 ░C	0.9 mm	250 mA	Surface Mount	60 Ohms	400 mOhm	2					50 VDC		0.035 in
