DEA1X3D Series

Catalog

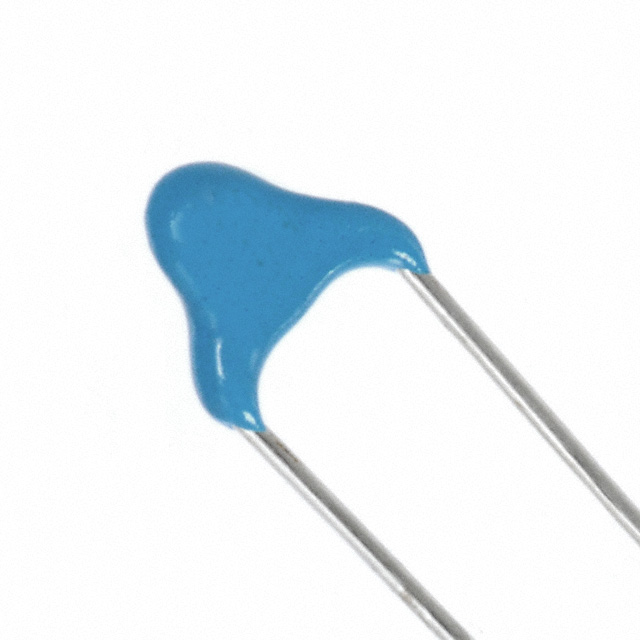

CAP CER 33PF 2KV SL RADIAL

Part	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage - Rated	Voltage - Rated	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Lead Style	Applications	Capacitance	Package / Case	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Lead Spacing	Lead Spacing	Tolerance	Temperature Coefficient	Features	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Size / Dimension
Murata Electronics DEA1X3D330JP2A	4.5 mm	0.177 "	2000 V	2 kV	0.295 in	7.5 mm	Straight	General Purpose	33 pF	Disc Radial	Through Hole	-25 °C	125 °C	0.197 "	5 mm	5 %	SL	High Voltage
Murata Electronics DEA1X3D330JC1B	4.5 mm	0.177 "	2000 V	2 kV	0.295 in	7.5 mm	Straight	General Purpose	33 pF	Disc Radial	Through Hole	-25 °C	125 °C	0.197 "	5 mm	5 %	SL	High Voltage
Murata Electronics DEA1X3D470JA2B	6 mm	0.236 in	2000 V	2 kV		9 mm	Formed Leads	General Purpose	47 pF	Disc Radial	Through Hole	-25 °C	125 °C	0.197 "	5 mm	5 %	SL	High Voltage	0.354 in
Murata Electronics DEA1X3D680JA2B	6 mm	0.236 in	2000 V	2 kV		9 mm	Formed Leads	General Purpose	68 pF	Disc Radial	Through Hole	-25 °C	125 °C	0.197 "	5 mm	5 %	SL	High Voltage	0.354 in
Murata Electronics DEA1X3D101JN2A	7 mm	0.276 in	2000 V	2 kV		10 mm	Formed Leads	General Purpose	100 pF	Disc Radial	Through Hole	-25 °C	125 °C	0.197 "	5 mm	5 %	SL	High Voltage	0.394 in
Murata Electronics DEA1X3D220JC1B	4.5 mm	0.177 "	2000 V	2 kV	0.295 in	7.5 mm	Straight	General Purpose	22 pF	Disc Radial	Through Hole	-25 °C	125 °C	0.197 "	5 mm	5 %	SL	High Voltage
Murata Electronics DEA1X3D391JA3B		0.512 in	2000 V	2 kV	0.63 in		Formed Leads	General Purpose	390 pF	Disc Radial	Through Hole	-25 °C	125 °C	0.295 in	7.5 mm	5 %	SL	High Voltage		16 mm	13 mm
Murata Electronics DEA1X3D151JA2B	8 mm	0.315 in	2000 V	2 kV	0.433 in		Formed Leads	General Purpose	150 pF	Disc Radial	Through Hole	-25 °C	125 °C	0.197 "	5 mm	5 %	SL	High Voltage		11 mm
Murata Electronics DEA1X3D680JB2B	6 mm	0.236 in	2000 V	2 kV		9 mm	Formed Leads	General Purpose	68 pF	Disc Radial	Through Hole	-25 °C	125 °C	0.197 "	5 mm	5 %	SL	High Voltage	0.354 in
Murata Electronics DEA1X3D220JD1B	4.5 mm	0.177 "	2000 V	2 kV	0.295 in	7.5 mm	Straight	General Purpose	22 pF	Disc Radial	Through Hole	-25 °C	125 °C	0.197 "	5 mm	5 %	SL	High Voltage
