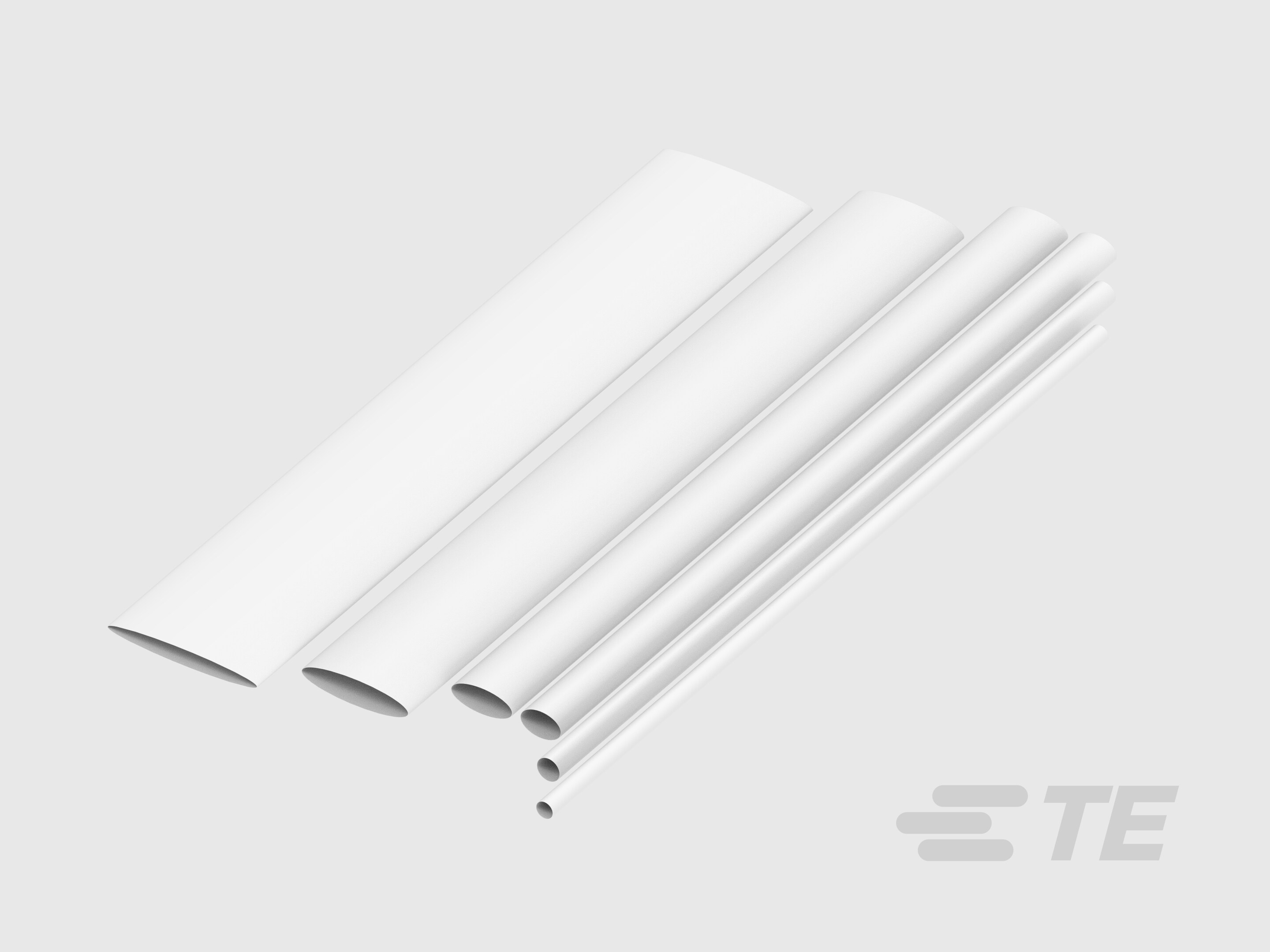

RAYCHEM RNF-150 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

RNF-150-3/4-9-SP

Part	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Type	Color	Shelf Life	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Material	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Features	Shrink Temperature	Recovered Wall Thickness	Recovered Wall Thickness	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Length	Length	Length	Length [x]	Length [x]	Length [x]
TE Connectivity AMP Connectors NB24614001	0.374 "	9.5 mm	Tubing Flexible	White	144 Months	35 °C	32 °F	95 °F	-55 C	150 °C	Fluoropolymer Irrradiated	1	2	Abrasion Resistant Chemical Resistant Flame Retardant Solvent Resistant Strain Resistant	110 °C	0.43 mm	0.017 in
TE Connectivity AMP Connectors NB24604001	0.046 in	1.17 mm	Tubing Flexible	White	144 Months	35 °C	32 °F	95 °F	-55 C	150 °C	Fluoropolymer Irrradiated	1	2	Abrasion Resistant Chemical Resistant Flame Retardant Solvent Resistant Strain Resistant	110 °C	0.25 mm	0.01 in	2.36 mm	0.093 "
TE Connectivity AMP Connectors NB24574001	0.25 in	6.35 mm	Tubing Flexible	White	144 Months	35 °C	32 °F	95 °F	-55 C	150 °C	Fluoropolymer Irrradiated	1	2	Abrasion Resistant Chemical Resistant Flame Retardant Solvent Resistant Strain Resistant	110 °C	0.3 mm	0.012 in	12.7 mm	0.5 "
TE Connectivity AMP Connectors RNF-150-1/2-0-45MM	0.25 in	6.35 mm	Tubing Flexible	Black	144 Months	35 °C	32 °F	95 °F	-55 C	150 °C	Fluoropolymer	1	2	Abrasion Resistant Chemical Resistant Flame Retardant Solvent Resistant Strain Resistant	110 °C	0.15 mm	0.006 in	12.7 mm	0.5 "	0.147 '	1.77 "	45 mm
TE Connectivity AMP Connectors RNF-150-3/16-0-3IN	0.093 in	2.36 mm	Tubing Flexible	Black	144 Months	35 °C	32 °F	95 °F	-55 C	150 °C	Fluoropolymer Irrradiated	1	2	Abrasion Resistant Chemical Resistant Flame Retardant Solvent Resistant Strain Resistant	110 °C	0.25 mm	0.01 in	4.8 mm	0.189 in				76.2 mm	3 in	0.25 ft
