NPRN214 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

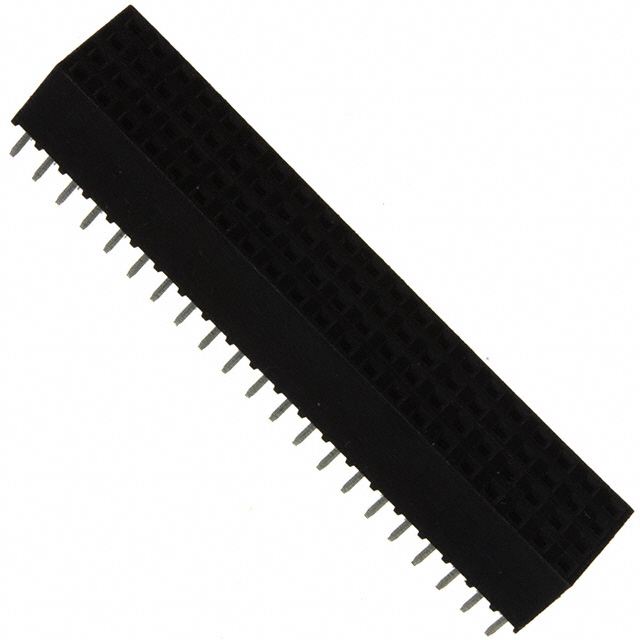

CONN HDR 84POS 0.079 GOLD PCB
| Part | Contact Material | Contact Shape | Insulation Material | Pitch - Mating | Pitch - Mating | Number of Positions [custom] | Material Flammability Rating | Contact Length - Post | Contact Length - Post | Row Spacing - Mating | Row Spacing - Mating | Termination | Contact Type | Insulation Color | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Height | Insulation Height | Number of Positions Loaded | Contact Finish - Post | Fastening Type | Connector Type | Mounting Type | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Phosphor Bronze | Square | Nylon 6T Polyamide (PA6T) | 0.079 " | 2 mm | 84 | UL94 V-0 | 2.4 mm | 0.094 in | 2 mm | 0.079 in | Solder | Forked | Black | 0.51 µm | 20 µin | Gold | -40 C | 105 ░C | 6.35 mm | 0.25 in | All | Tin | Push-Pull | Header | Through Hole | 2 A |
