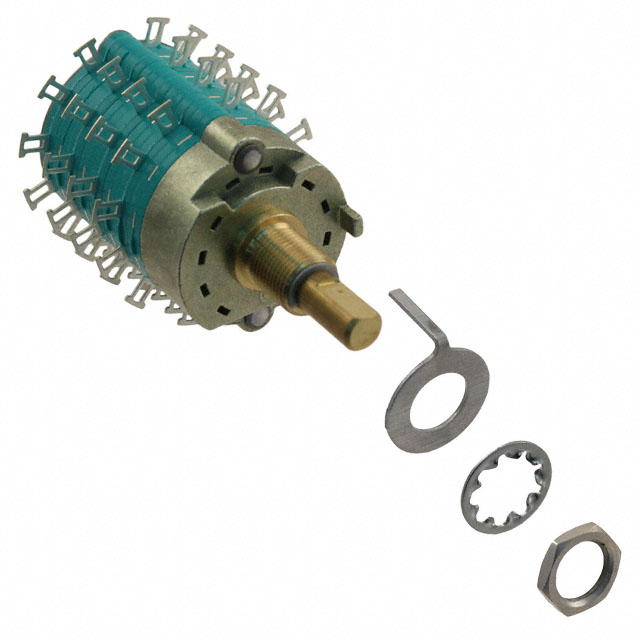

C4D0412 Series
Manufacturer: Electroswitch
Beta
⌘K
SWITCH ROTARY 2-12POS 300MA 125V
| Part | Panel Cutout Dimensions [diameter] | Mounting Type | Contact Timing | Voltage Rating - DC | Current Rating (Amps) | Voltage Rating - AC | Termination Style | Actuator Length [x] | Depth Behind Panel [z] | Actuator Type | Number of Poles per Deck | Contact Finish | Circuit per Deck | Index Stops | Angle of Throw | Number of Positions [Max] | Number of Positions [Min] | Contact Material | Number of Decks |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Electroswitch | 9.78 mm | Panel Mount | Non-Shorting (BBM) | 28 V | 300 mA 500 mA | 125 V | Solder Lug | 0.5 in | 41.76 mm | Flatted (6.35mm Dia) | 1 | Silver | SP12T | Adjustable | 30 ° | 12 | 2 | Brass | 4 |
 Electroswitch | 9.78 mm | Panel Mount | Shorting (MBB) | 28 V | 300 mA 500 mA | 125 V | Solder Lug | 0.5 in | 41.76 mm | Flatted (6.35mm Dia) | 1 | Silver | SP12T | Adjustable | 30 ° | 12 | 2 | Brass | 4 |
