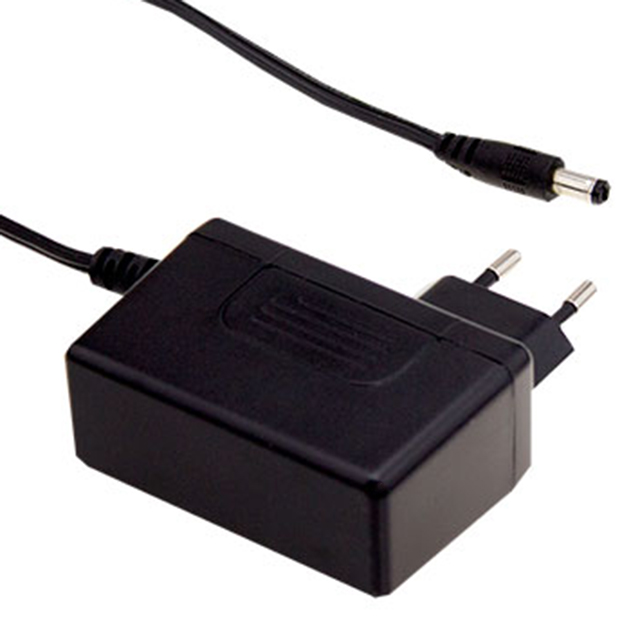

SGA25E15 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC WALL MOUNT ADAPTER 15V 25W
| Part | Output Connector [x] | Output Connector [diameter] | Output Connector | Input Type | Region Utilized | Voltage - Input [Max] | Voltage - Input [Min] | Voltage - Output | Operating Temperature [Min] | Operating Temperature [Max] | Cord Length | Cord Length | No Load Power Consumption | Input Connector | Polarization | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Efficiency | Applications | Current - Output (Max) [Max] | Form | Approval Agency | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 11 mm | 2.1 mm 5.5 mm | Barrel Plug | Fixed Blade | Europe | 264 VAC | 90 VAC | 15 V | -20 ░C | 60 °C | 70.9 " | 1.8 m | 75 mW | CEE 7/16 | Positive Center | 1.26 in | 47.5 mm | 2.97 in | 32 mm | 1.87 in | 75.5 mm | Level VI | ITE (Commercial) | 1.66 A | Wall Mount | CB CE GS | 25 W |
