P8-14 Series

Catalog

RING TONGUE TERMINAL, M6, 1/4", 8 AWG, 10 MM², P SERIES

Part	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Width - Outer Edges [x]	Width - Outer Edges [x]	Contact Finish	Termination	Thickness	Thickness	Mounting Type	Contact Material	Terminal Type	Stud/Tab Size	Wire Gauge	Insulation	Features	Length - Overall [x]	Length - Overall [x]

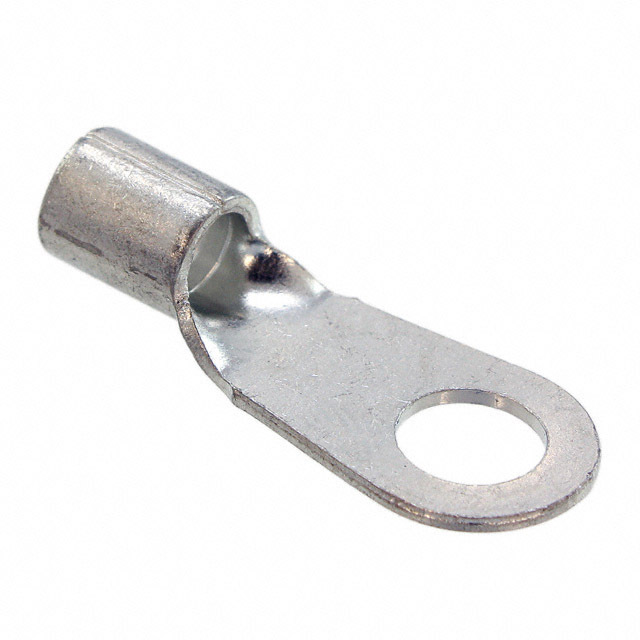

Panduit Corp P8-14R-T	0.28 in	7.11 mm	0.47 in	11.94 mm	Tin	Crimp	0.04 in	1.02 mm	Free Hanging (In-Line)	Copper	Circular	0.25 Stud	8 AWG	Non-Insulated	Brazed Seam	28.96 mm	1.14 in
Panduit Corp P8-14RHT6-Q			0.47 in	11.94 mm	Nickel	Crimp	0.04 in	1.02 mm	Free Hanging (In-Line)	Copper	D-Shaped	0.25 Stud	8 AWG	Non-Insulated	Brazed Seam	28.96 mm	1.14 in
Panduit Corp P8-14R-Q	0.28 in	7.11 mm	0.47 in	11.94 mm	Tin	Crimp	0.04 in	1.02 mm	Free Hanging (In-Line)	Copper	Circular	0.25 Stud	8 AWG	Non-Insulated	Brazed Seam	28.96 mm	1.14 in
