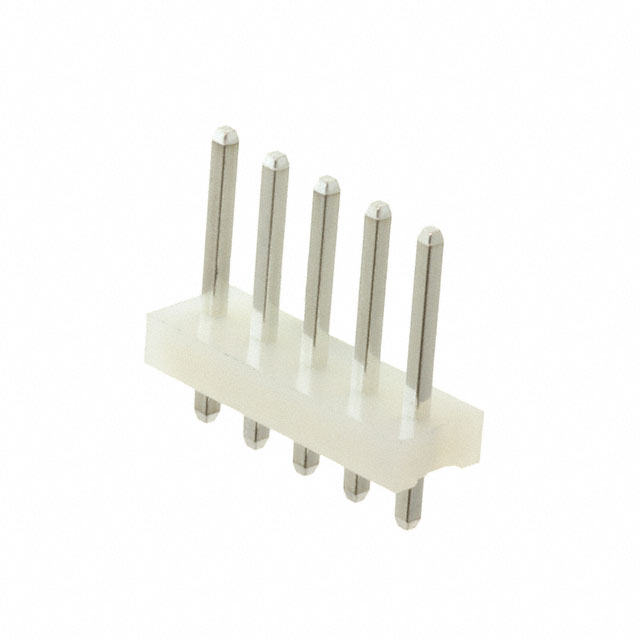

LHB-05 Series
Manufacturer: Adam Tech
Beta
⌘K
CONN HEADER VERT 5POS 3.96MM
| Part | Mounting Type | Contact Shape | Connector Type | Pitch - Mating | Pitch - Mating | Contact Length - Post [x] | Contact Length - Post [x] | Contact Finish - Post | Insulation Color | Insulation Material | Fastening Type | Contact Material | Number of Positions Loaded | Material Flammability Rating | Voltage Rating | Number of Positions | Number of Rows | Current Rating (Amps) | Termination | Contact Length - Mating | Contact Length - Mating | Insulation Height [z] | Insulation Height | Shrouding | Operating Temperature [Max] | Operating Temperature [Min] | Overall Contact Length | Overall Contact Length | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | Through Hole | Square | Header | 3.96 mm | 0.156 in | 3.81 mm | 0.15 in | Tin | White | Nylon 6/6 Polyamide (PA66) | Push-Pull | Brass | All | UL94 V-2 | 250 VAC | 5 | 1 | 7 A | Solder | 0.413 in | 10.5 mm | 0.126 " | 3.2 mm | Unshrouded | 105 ░C | -25 °C | 17.5 mm | 0.689 in | Male Pin |
