0039000181 Series
Manufacturer: Molex
Beta
⌘K
3" PRE-CRIMP A2015 RED
| Part | Number of Conductors | Number of Rows | Contact Finish | Wire Gauge | Length | Length | Contact End | Color | Contact Finish Thickness | Contact Finish Thickness | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

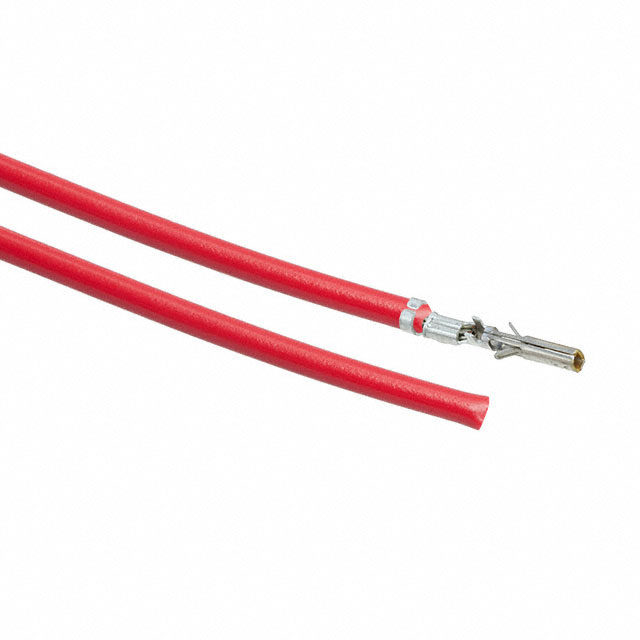

 Molex | 1 | 1 | Gold | 24 AWG | 3 in | 76.2 mm | Socket to Cable (Round) | Red | 30 Áin | 0.76 Ám | ||
 Molex | 1 | 1 | Gold | 18 AWG | 8 in | 203.2 mm | Socket to Cable (Round) | Red | 30 Áin | 0.76 Ám | ||

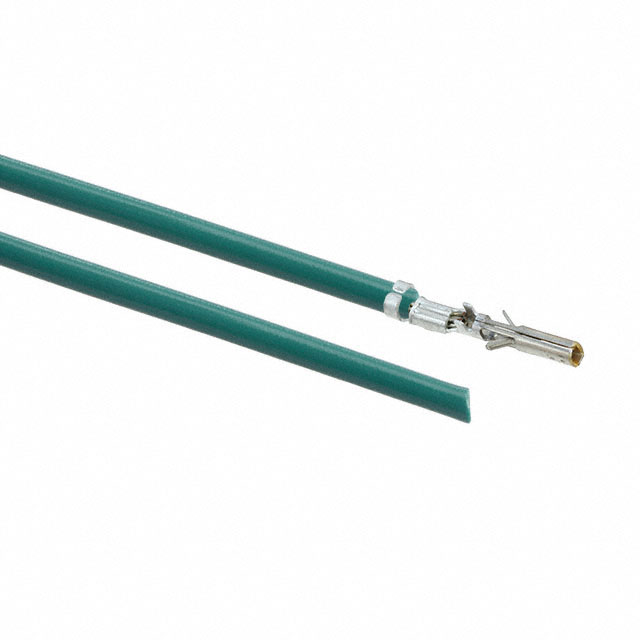

Molex | 1 | 1 | Gold | 18 AWG | 11 in | 279.4 mm | Socket to Cable (Round) | Green | 30 Áin | 0.76 Ám | ||

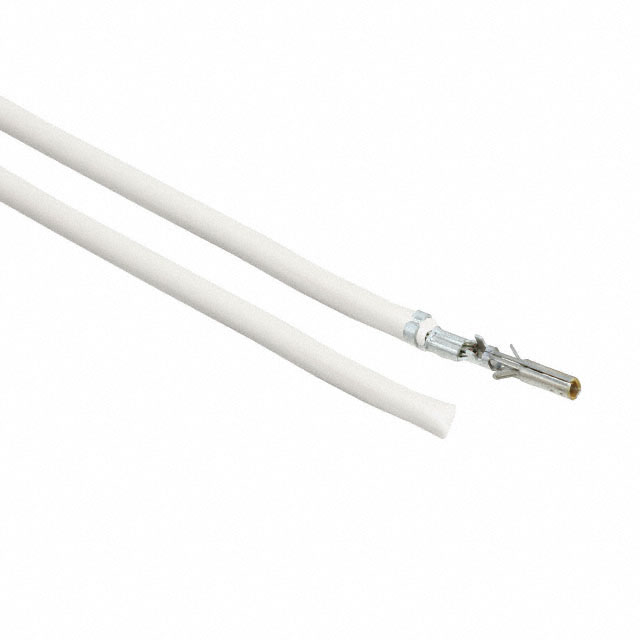

 Molex | 1 | 1 | Gold | 20 AWG | Socket to Cable (Round) | White | 30 Áin | 0.76 Ám | 304.8 mm | 12 in | ||
Molex | 1 | 1 | Gold | 24 AWG | Socket to Cable (Round) | Blue | 30 Áin | 0.76 Ám | 152.4 mm | 6 " | ||
 Molex | 1 | 1 | Gold | 20 AWG | 2 in | 50.8 mm | Socket to Cable (Round) | Green | 30 Áin | 0.76 Ám | ||

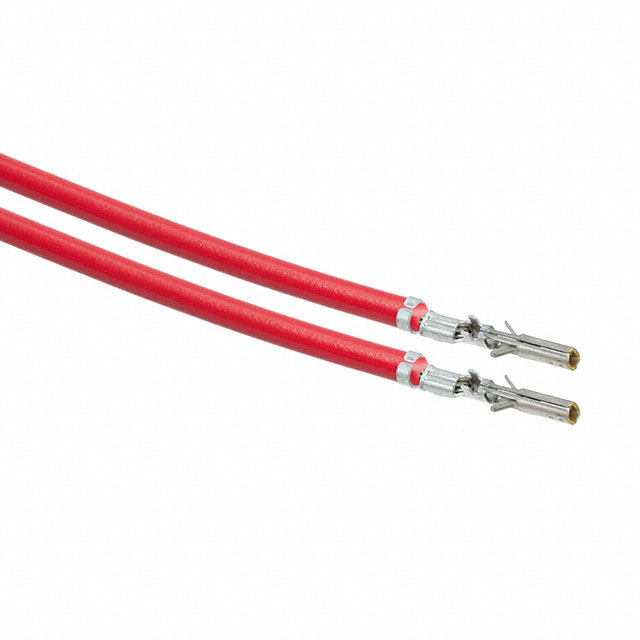

Molex | 1 | 1 | Gold | 20 AWG | 8 in | 203.2 mm | Socket to Socket | Red | 30 Áin | 0.76 Ám | ||

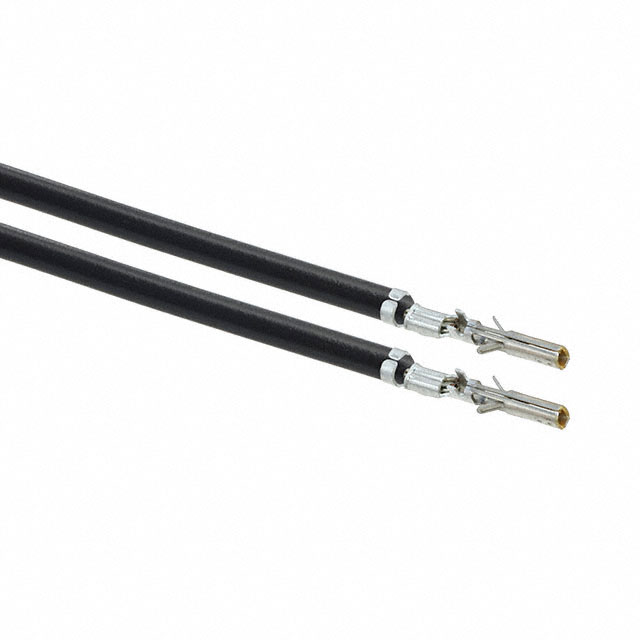

 Molex | 1 | 1 | Gold | 22 AWG | 10 in | 254 mm | Socket to Socket | Black | 30 Áin | 0.76 Ám | ||
Molex | 1 | 1 | Gold | 18 AWG | Socket to Cable (Round) | Green | 30 Áin | 0.76 Ám | 304.8 mm | 12 in | ||

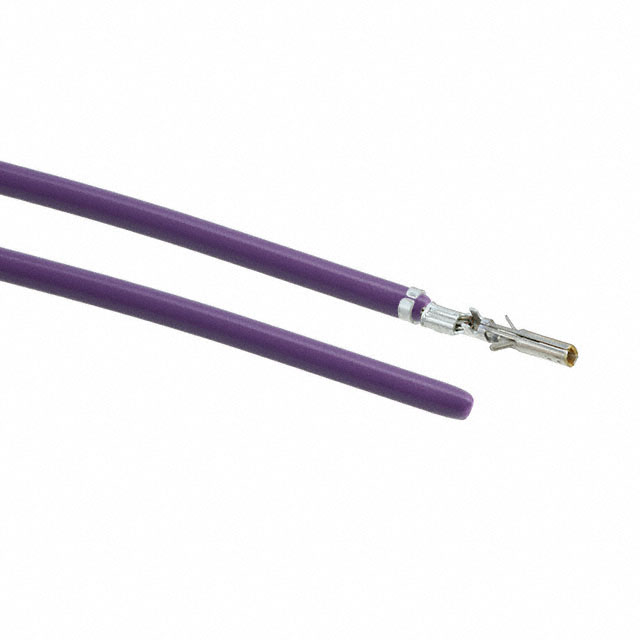

 Molex | 1 | 1 | Gold | 20 AWG | 3 in | 76.2 mm | Socket to Cable (Round) | Violet | 30 Áin | 0.76 Ám |
