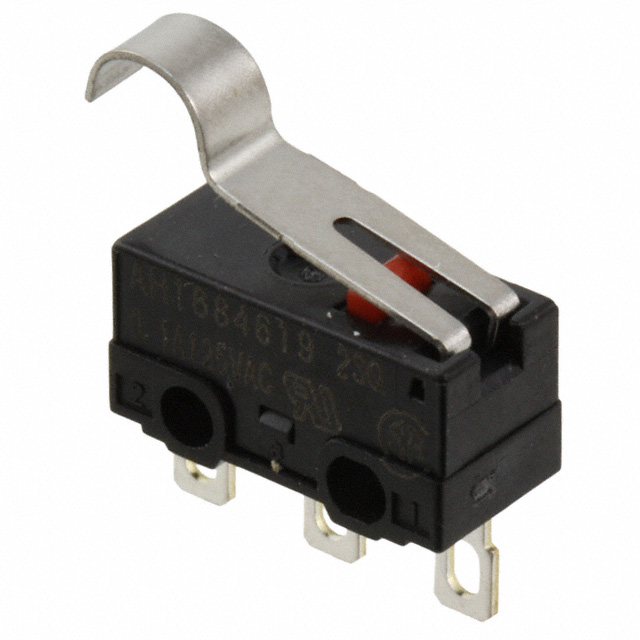

AH16649 Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K
SWITCH SNAP ACTION SPDT 3A 125V
| Part | Switch Function | Current Rating (Amps) | Overtravel [custom] | Overtravel [custom] | Circuit | Electrical Life | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Type | Release Force | Operating Position | Operating Position | Voltage Rating - AC | Mounting Type | Pretravel | Pretravel | Voltage Rating - DC | Operating Force | Differential Travel | Differential Travel | Termination Style | Mechanical Life |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | On-Mom | 2 A 3 A | 0.5 mm | 0.02 " | SPDT | 30000 Cycles | 85 °C | -25 °C | Lever Simulated Roller | 4.079 gf | 9.5 mm | 0.374 " | 125 V | Chassis Mount | 2.1 mm | 0.083 in | 30 V | 55 gf | 0.5 mm | 0.02 in | Solder Lug | 500000 Cycles |
