3RP2505 Series

Manufacturer: Siemens

Catalog

RELAY TIME DELAY 100HR 3A 250V

Part	Relay Type	Function	Circuit	Contact Rating @ Voltage	Timing Initiate Method	Timing Adjustment Method	Mounting Type	Voltage - Supply	Termination Style	Delay Time [Max]	Delay Time [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]
Siemens 3RP25052BB30	Mechanical Relay	Programmable (Multi-Function)	DPDT (2 Form C)	3 A 250 VAC	Input Voltage	Screwdriver Slot	DIN Rail	24 VAC	Spring Terminal	100 Hrs	0.05 Sec

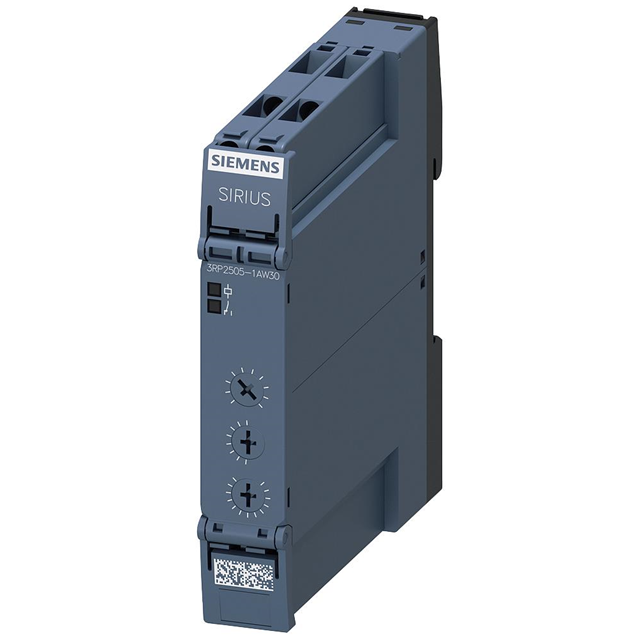

Siemens 3RP25051AW30	Mechanical Relay	Programmable (Multi-Function)	SPDT (1 Form C)	3 A 250 VAC	Input Voltage	Screwdriver Slot	DIN Rail		Screw Terminal	100 Hrs	0.05 Sec	12 VAC	240 VAC

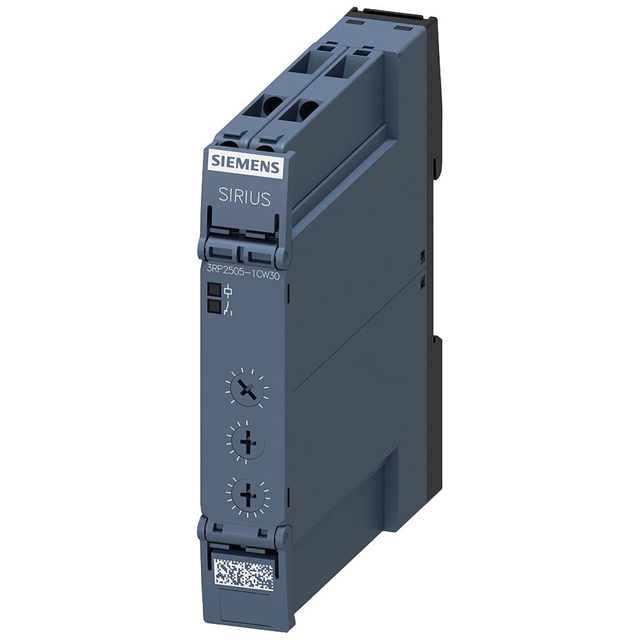

Siemens 3RP25051CW30	Mechanical Relay	Programmable (Multi-Function)		1 A 24 VDC 250 VAC	Input Voltage	Screwdriver Slot	DIN Rail		Screw Terminal	100 Hrs	0.05 Sec	12 VAC	240 VAC

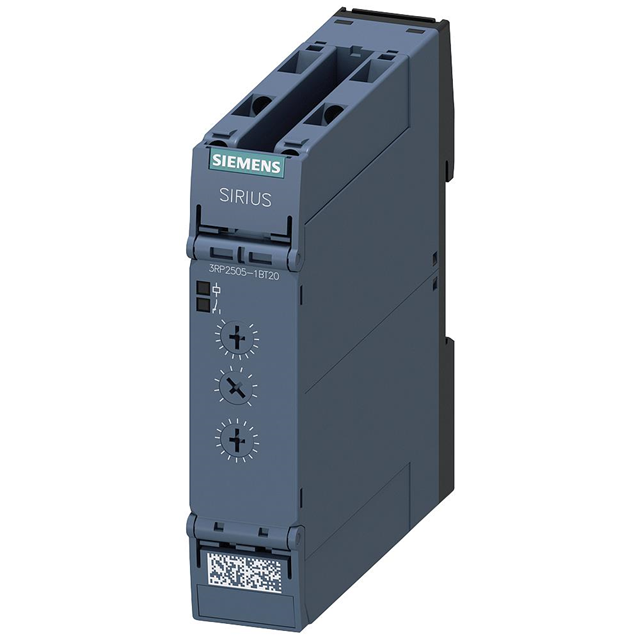

Siemens 3RP25051BT20	Mechanical Relay	Programmable (Multi-Function)	DPDT (2 Form C)	3 A 250 VAC	Input Voltage	Screwdriver Slot	DIN Rail		Screw Terminal	100 Hrs	0.05 Sec	400 VAC	440 VAC
Siemens 3RP25052RW30	Mechanical Relay	Programmable (Multi-Function)	DPDT (2 Form C)	3 A 250 VAC	Input Voltage	Screwdriver Slot	DIN Rail		Spring Terminal	100 Hrs	0.05 Sec	24 VAC	240 VAC
Siemens 3RP25052CW30	Mechanical Relay	Programmable (Multi-Function)		1 A 24 VDC 250 VAC	Input Voltage	Screwdriver Slot	DIN Rail		Spring Terminal	100 Hrs	0.05 Sec	12 VAC	240 VAC
Siemens 3RP25052BT20	Mechanical Relay	Programmable (Multi-Function)	DPDT (2 Form C)	3 A 250 VAC	Input Voltage	Screwdriver Slot	DIN Rail		Spring Terminal	100 Hrs	0.05 Sec	400 VAC	440 VAC
Siemens 3RP25052AW30	Mechanical Relay	Programmable (Multi-Function)	SPDT (1 Form C)	3 A 250 VAC	Input Voltage	Screwdriver Slot	DIN Rail		Spring Terminal	100 Hrs	0.05 Sec	12 VAC	240 VAC

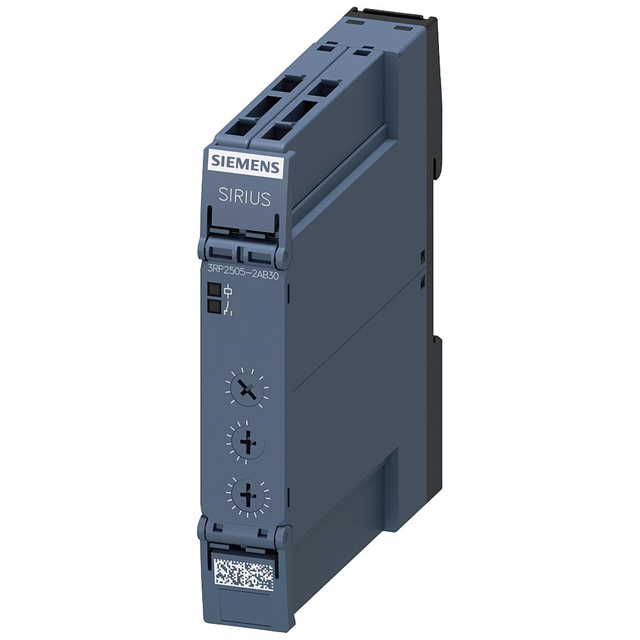

Siemens 3RP25052AB30	Mechanical Relay	Programmable (Multi-Function)	SPDT (1 Form C)	3 A 250 VAC	Input Voltage	Screwdriver Slot	DIN Rail	24 VAC	Spring Terminal	100 Hrs	0.05 Sec
